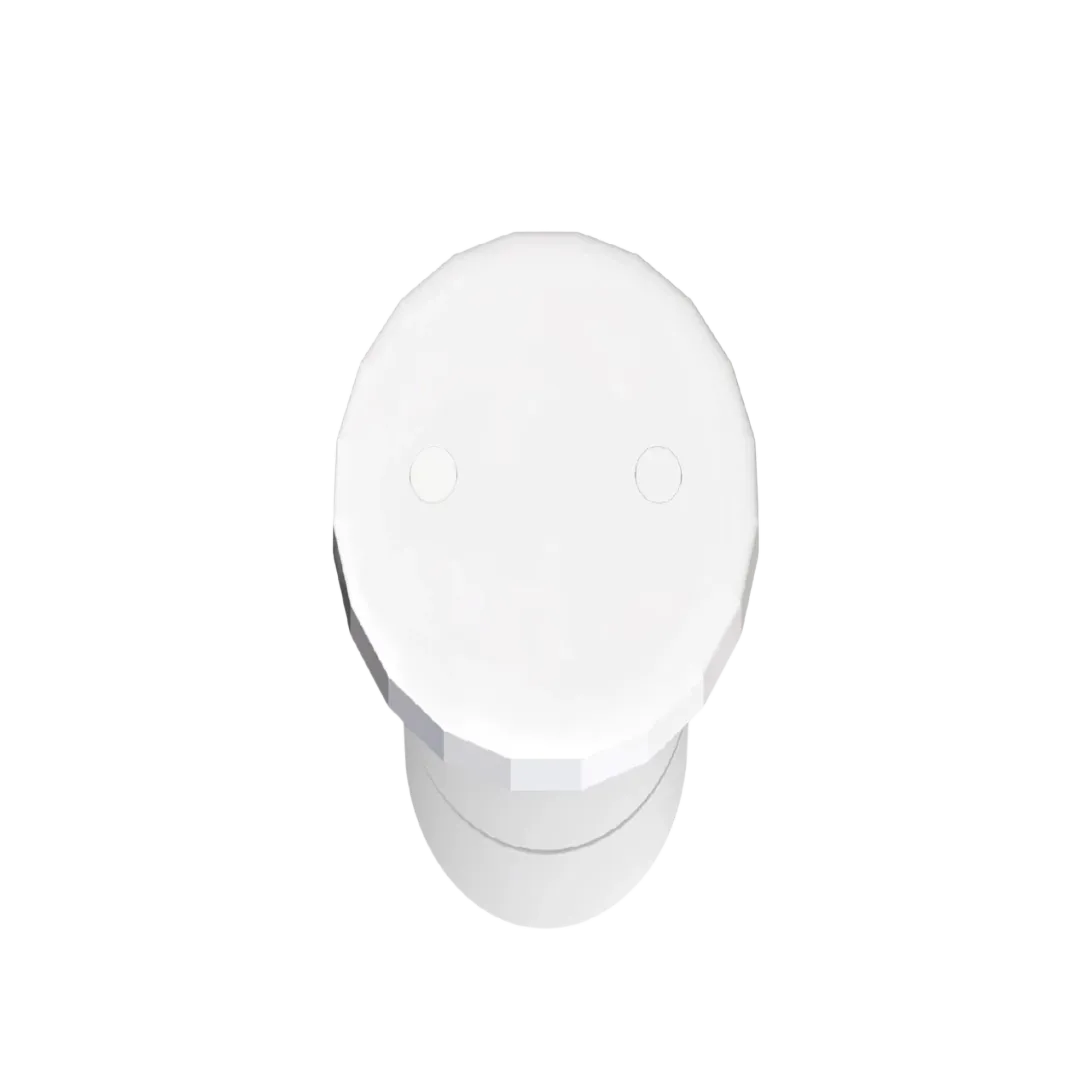

Human Presence Sensor VIV-HP210- Z
The VIV-HP210-Z is a human presence sensor based on 24GHz millimeter-wave FMCW radar. It detects both micro and macro human movements — even subtle breathing — enabling accurate presence sensing without being affected by environmental factors like temperature, light, noise, or airflow. It communicates via ZigBee and is designed for indoor ceiling-mounted applications such as smart homes, offices, hotels, and restrooms.
- 24 GHz FMCW radar sensor for human presence, micro-motion, and macro-motion detection
- Wide detection coverage: up to ~2 m radius (ceiling mount) or ~3.75 m (wall mount), 90° × 90° angle
- Adjustable sensitivity, hold time, and thresholds via Tuya Smart / Smart Life app
- Built-in illuminance sensor with ZigBee connectivity (requires ZigBee gateway)
- Flexible installation: recessed or surface ceiling mount; LED indicator for power/pairing
- Compact, low-power design (Ø65 × 38 mm), indoor use, operating range –10°C to +50°C
About Presence Sensor
Presence sensor detects human presence with high accuracy, enabling advanced automation, lighting, and security.
