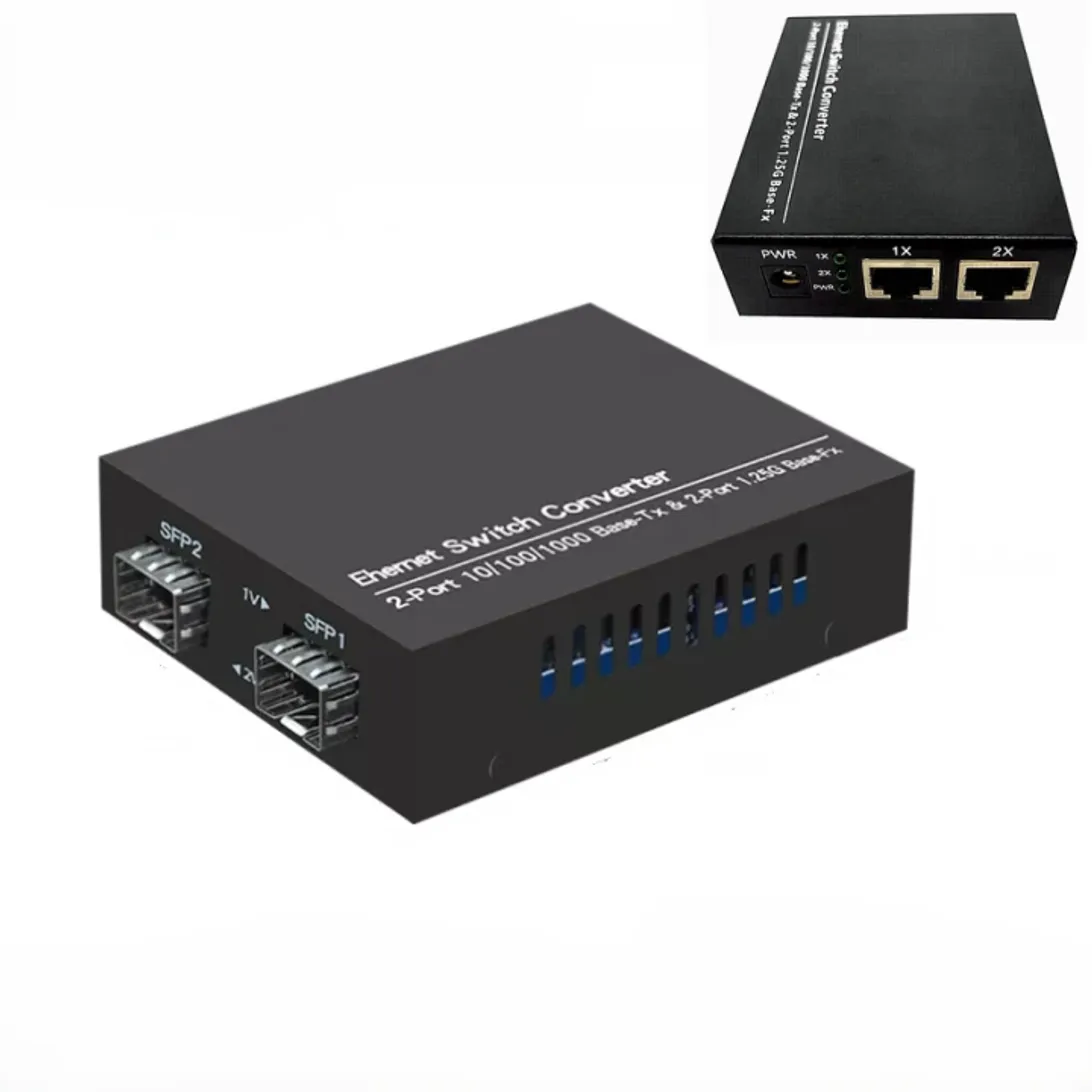

1000M-2SFP-2RJ45 media convertor
The Optowire ZX-2G2FL-MM is a Gigabit 2-Fiber 2-Electric switch offering two 10/100/1000Base-T RJ45 ports and two 1000M optical ports for flexible fiber and copper connectivity. It provides store-and-forward switching, ensuring full wire-speed performance with a 16 Gbps backplane bandwidth and 8.64 Mpps forwarding rate.
- Ports: 2× RJ45 + 2× 1000M optical ports (optional 1310/1550 nm).
- Standards: IEEE 802.3/802.3u/802.3ab/802.3z compliant.
- Distance: Up to 20 km (SM) / 2 km (MM); optional modules up to 80 km.
- Performance: 16 Gbps switching bandwidth, 8.64 Mpps forwarding rate.
- Power: DC 5–12V, ≤5W.
- Protection: 3KV lightning protection, IP30 enclosure.
- Operating Temp: –10 °C to +55 °C.
- Size: 94×70×25 mm; Weight: 0.2 kg.
- Certifications: CE, FCC, RoHS; 3-year warranty.
About Media Convertor
Media Converter: device that converts data signals between different physical media, e.g., from copper cable to optical fiber.
