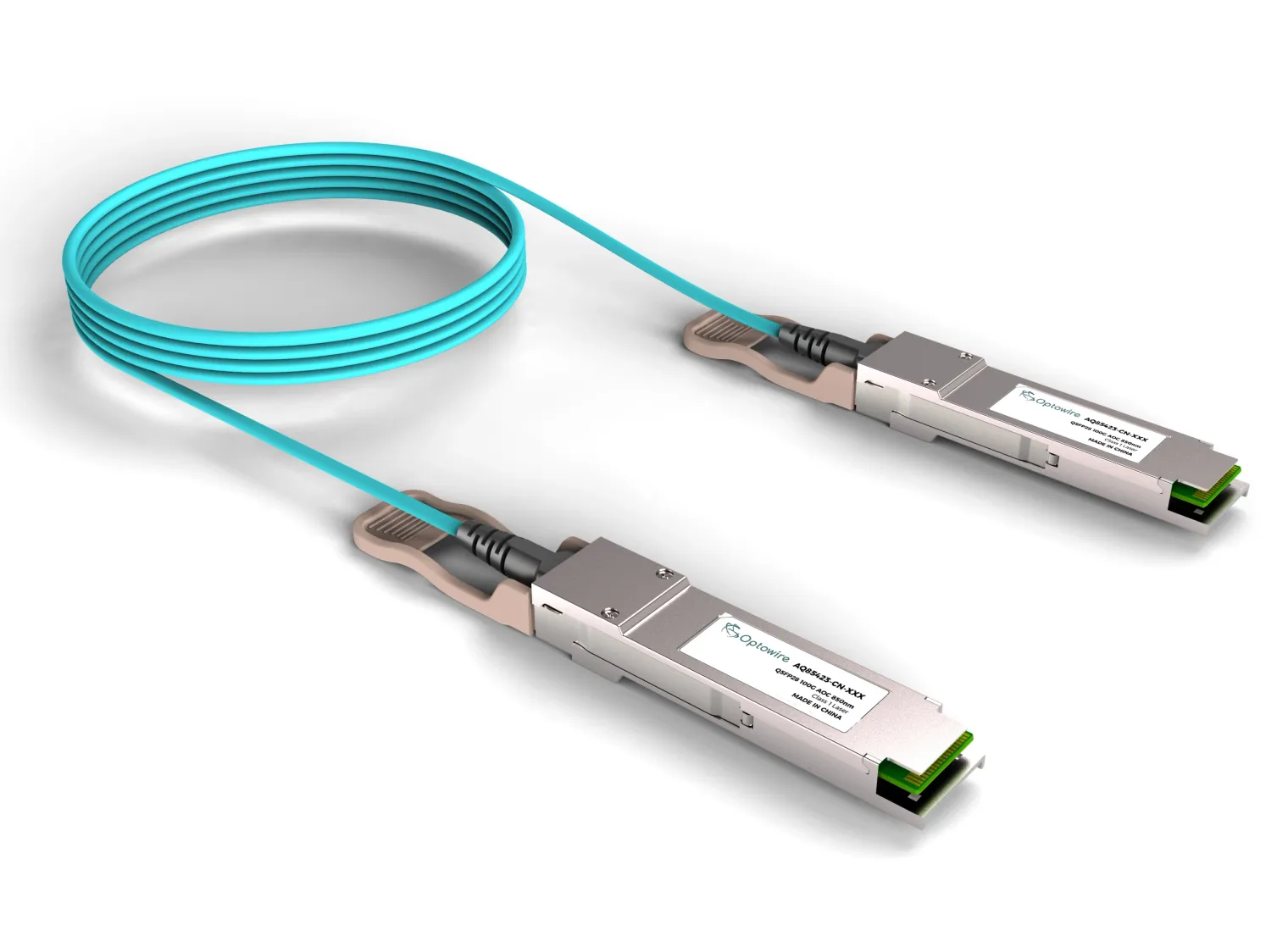

QSFP28 100G AOC 850nm 1m
This 100G QSFP28 Active Optical Cable (AOC) is designed for 100GBASE-SR4 Ethernet, InfiniBand QDR/EDR, and other high-speed optical interconnect applications. It supports multi-rate operation up to 25.78125 Gbps per channel, providing a total aggregate bandwidth of 100 Gbps. The AOC is fully compliant with the QSFP28 Electrical MSA (SFF-8636) standard and operates with a single +3.3 V power supply for simplified deployment.
It offers low power consumption, optional UL-certified cables, and a commercial operating temperature range from 0 °C to +70 °C. The module is hot-pluggable, lightweight, and cost-effective, making it ideal for high-density data center, enterprise, and high-performance computing environments. It is also RoHS compliant, ensuring full environmental safety.
- Supports 100GBASE-SR4 and InfiniBand EDR applications.
- Compliant with QSFP28 Electrical MSA (SFF-8636).
- Supports data rates up to 25.78125 Gbps per lane.
- Single +3.3 V power supply with low power consumption.
- Optional UL-certified cables for safety compliance.
- Operating case temperature: 0 °C to +70 °C.
- RoHS compliant and environmentally safe.
- Hot-pluggable, compact, and ideal for high-density interconnects.
About AOC
AOC: Active Optical Cable with built-in transceivers, enabling high-speed and long-distance data transmission.
