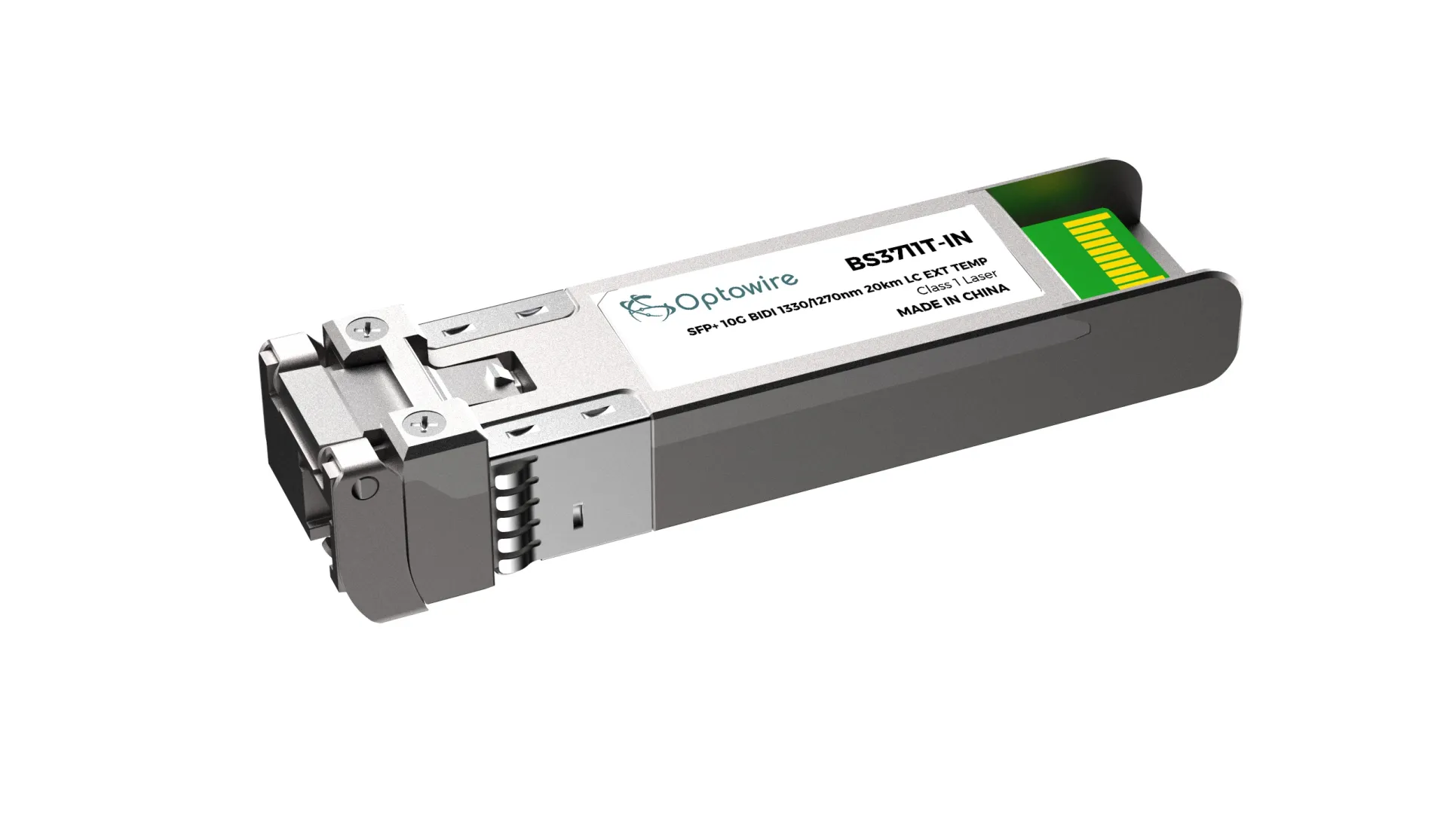

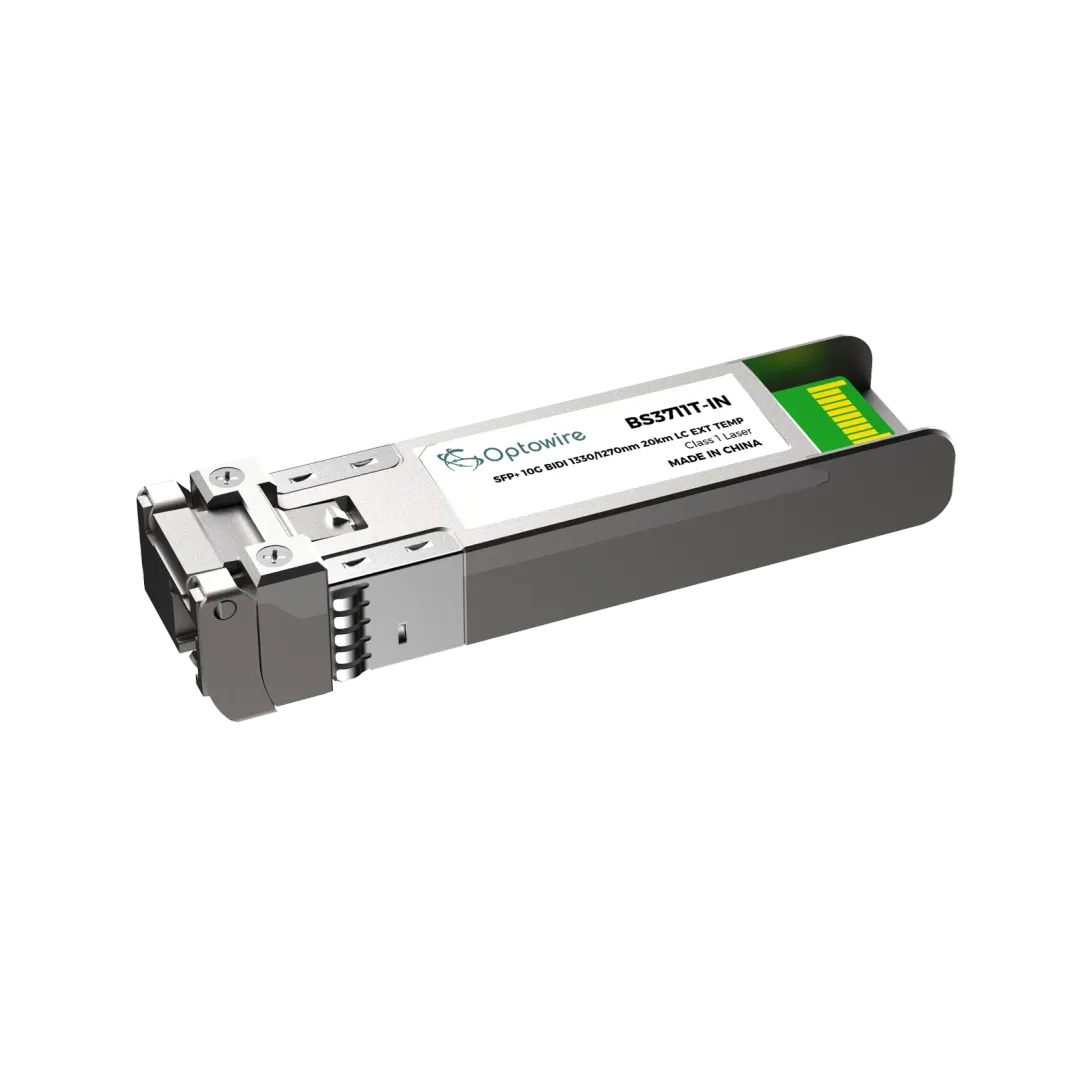

SFP+ 10G BIDI 1330/1270nm 20km LC EXT TEMP

Name: SFP+ 10G BIDI 1330/1270nm 20km LC EXT TEMP
Brand: Optowire
SKU: SFP+ 10G BIDI 1330/1270nm 20km LC EXT TEMP

Article:NE-OT-SFP1-0011

Category:SFP +

Brand: Optowire

Unit:pcs

The BS7311T-IN / BS3711T-IN are 10G SFP+ BiDi transceivers designed for 10GBASE-LR/LW Ethernet and 10G Fibre Channel applications. These modules support a typical data rate of 10.3125 Gbps and offer a maximum transmission distance of 20 km over single-mode fiber (SMF).

The BS7311T-IN operates at 1270 nm TX / 1330 nm RX, while the BS3711T-IN operates at 1330 nm TX / 1270 nm RX, enabling bidirectional communication over a single fiber.

Both models feature a duplex LC optical interface, are hot-pluggable, and utilize a single +3.3 V power supply. They include Digital Diagnostic Monitoring (DDM), are Class 1 laser safety certified, and RoHS compliant. Designed for industrial environments, these modules support an extended operating temperature range of –40 °C to +85 °C, ensuring reliable long-reach optical performance.

Supports 10.3125 Gbps data rate.
20 km transmission distance over single-mode fiber.
BS7311T-IN: 1270 nm TX / 1330 nm RX; BS3711T-IN: 1330 nm TX / 1270 nm RX.
DFB laser transmitter and PIN receiver design.
Duplex LC optical interface.
Single +3.3 V power supply and low power operation.
Hot-pluggable SFP+ form factor.
Digital Diagnostic Monitoring (DDM) supported.
Class 1 laser safety and RoHS compliant.
Operating temperature: –40 °C to +85 °C.
