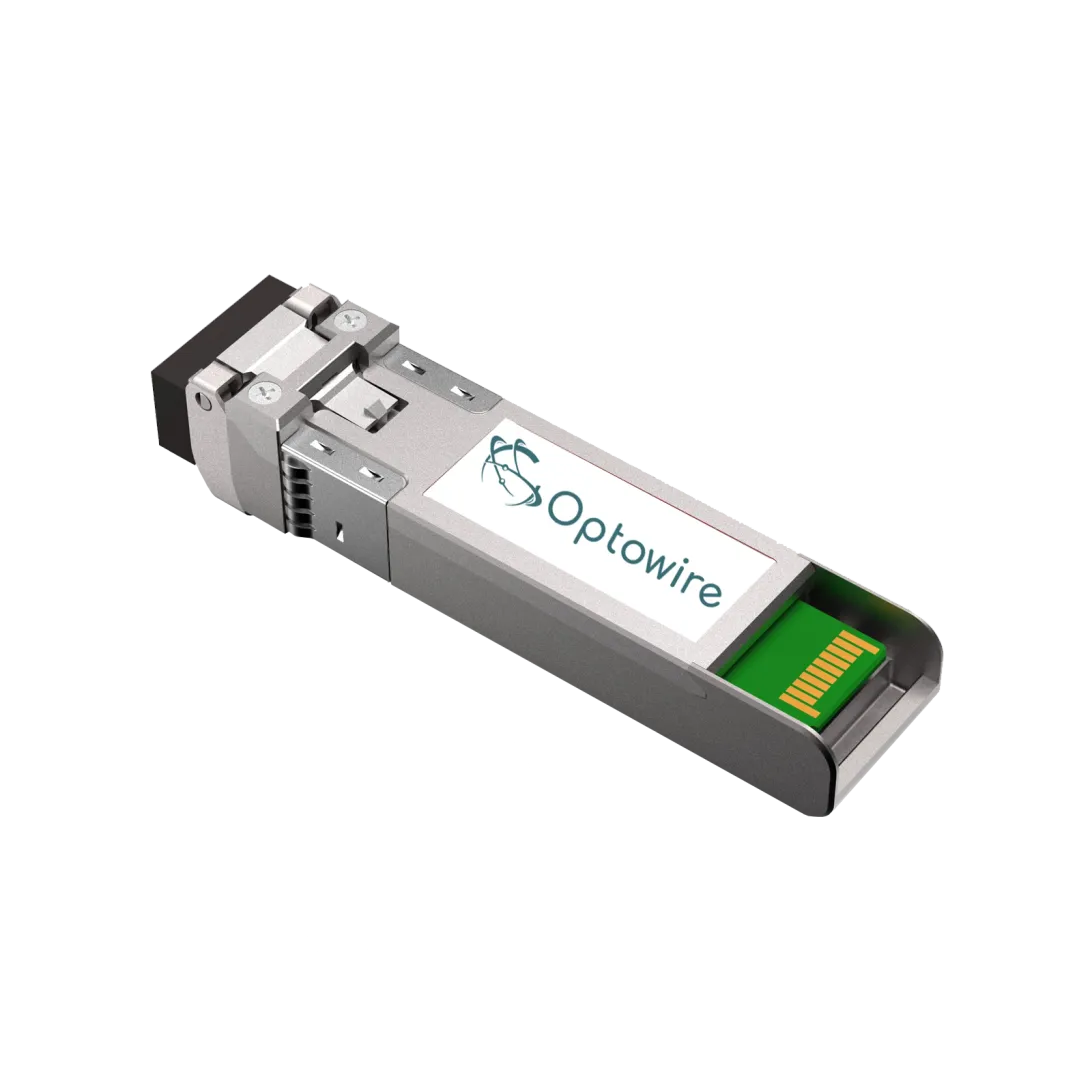

SFP+ 10G Duplex 1310nm 80km LC
The SFP+ 10G Duplex 1310nm 80km LC transceiver is a high-performance 10 Gigabit Ethernet optical module designed for long-distance data transmission over single-mode fiber (SMF). It supports a typical data rate of 10.3125 Gbps and provides a maximum reach of up to 80 km, making it ideal for backbone networks, metro connections, and telecom applications.
This transceiver uses a 1310 nm DFB laser transmitter and a PIN photodiode receiver, ensuring stable and low-error optical communication. It features a duplex LC interface, operates with a single +3.3 V power supply, and supports Digital Diagnostic Monitoring (DDM) for real-time link performance. The module is hot-pluggable, Class 1 laser safety certified, and RoHS compliant, ensuring easy deployment and environmental safety.
- Supports data rate up to 10.3125 Gbps (10G Ethernet / Fiber Channel).
- Transmission distance up to 80 km over single-mode fiber (SMF).
- Operates at 1310 nm with DFB laser and PIN receiver.
- Duplex LC optical interface.
- Hot-pluggable SFP+ form factor.
- Digital Diagnostic Monitoring (DDM) supported.
- Single +3.3 V power supply, low power consumption.
- Class 1 laser safety and RoHS compliant.
- Operating temperature range: 0 °C to +70 °C
About SFP +
SFP+: enhanced SFP module providing high-speed data transfer, often up to 10 Gbps, in network devices.
