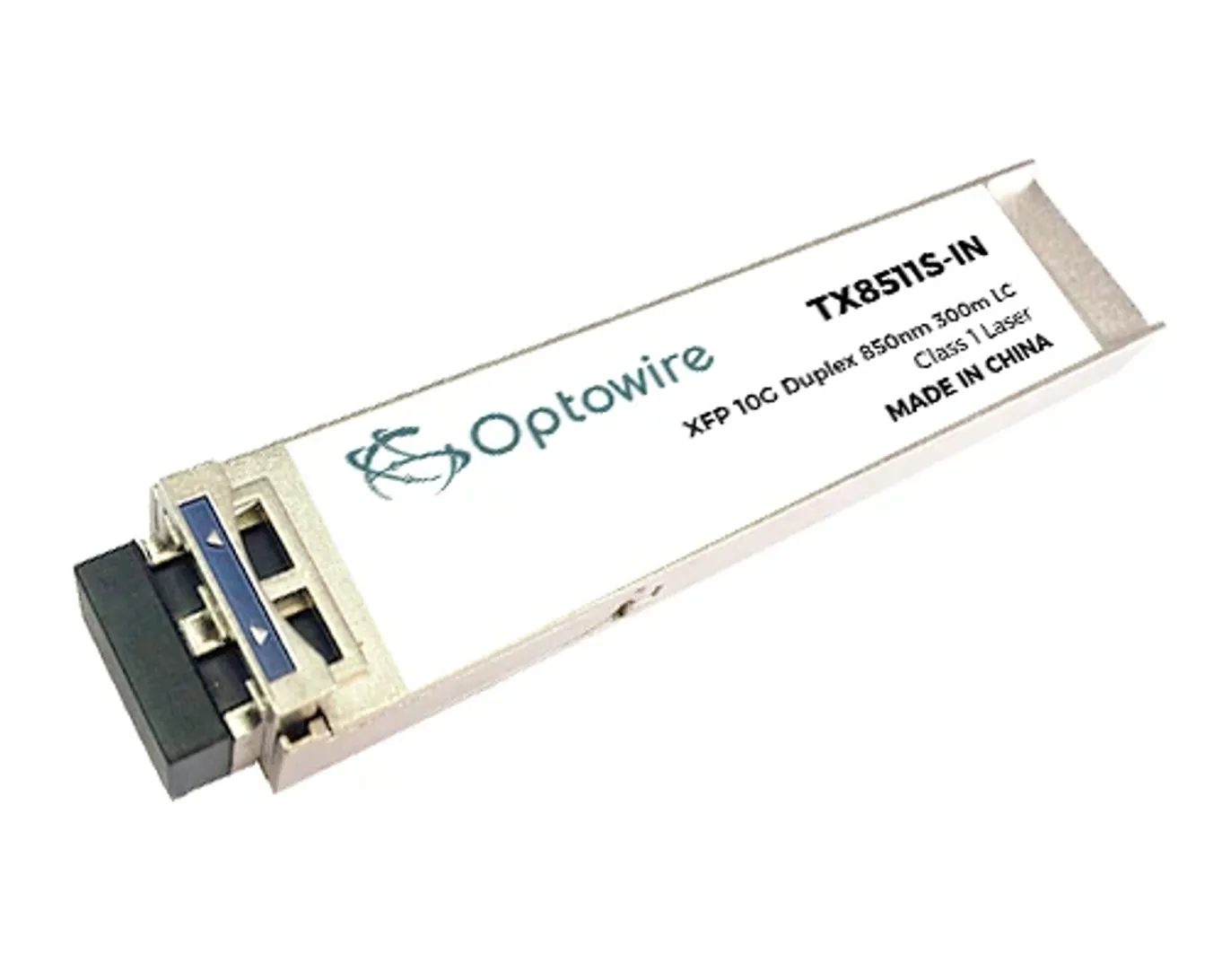

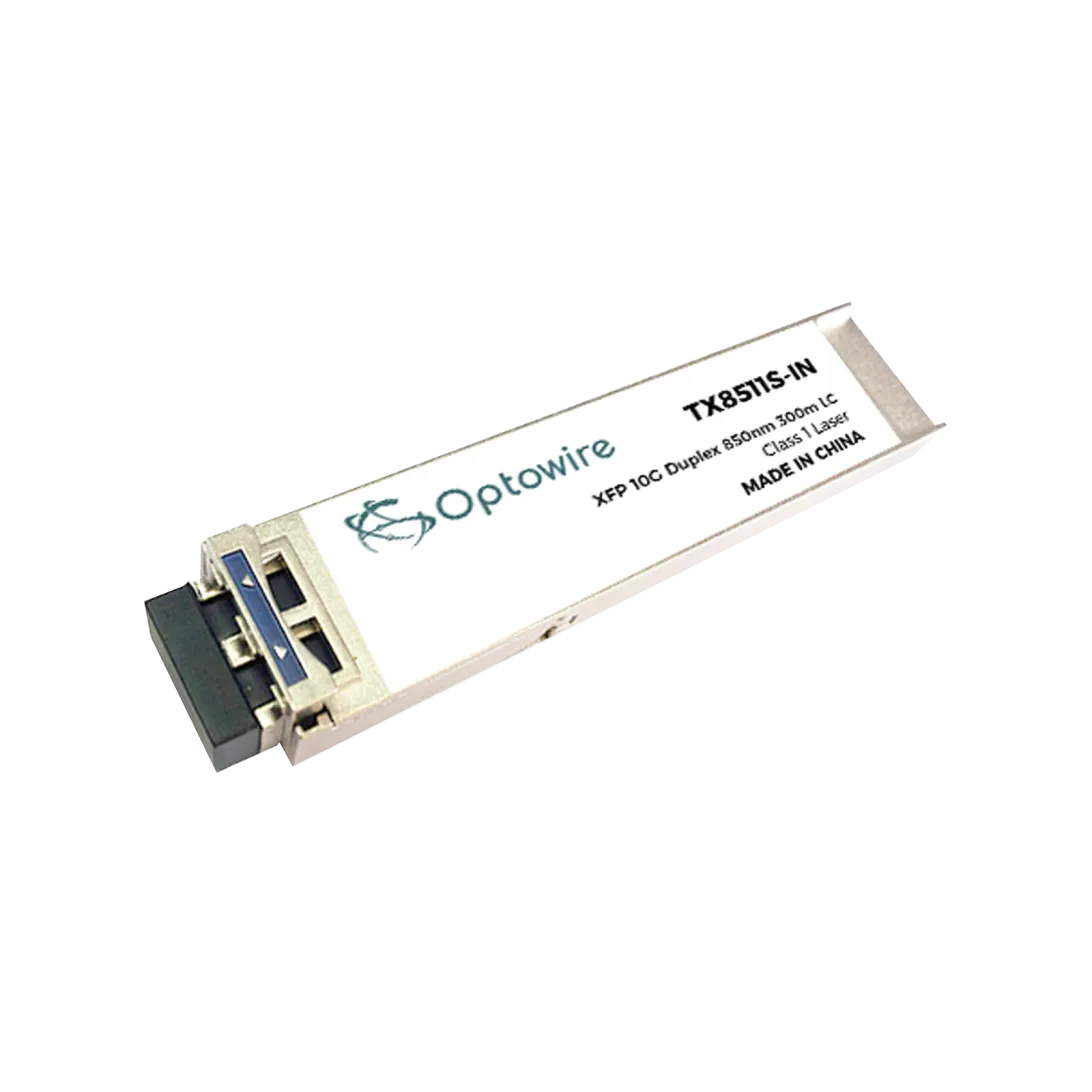

XFP 10G Duplex 850nm 300m LC
The TX8511A-CN(IN) is a 10G XFP multimode optical transceiver designed for short-range, high-speed data communication over OM3 multimode fiber (MMF). Supporting data rates from 9.95 Gbps to 11.3 Gbps, this module is ideal for 10GBASE-SR/SW Ethernet and 10G Fibre Channel (1200-Mx-SN-I) applications.
It operates at an 850 nm wavelength using an uncooled VCSEL laser and a PIN receiver, providing reliable transmission up to 300 meters. The transceiver features a Duplex LC connector, single +3.3 V power supply, and low power consumption (<1.5 W). Fully hot-pluggable, it includes digital diagnostic functions (DDM) and complies with RoHS and Class 1 laser safety standards.
- Supports 9.95 to 11.3 Gbps data rates (10GBASE-SR/SW, 10G FC).
- 850 nm uncooled VCSEL laser with Duplex LC interface.
- Transmission distance: up to 300 m over OM3 multimode fiber.
- Power dissipation: <1.5 W.
- Hot-pluggable XFP form factor.
- No reference clock required.
- Digital Diagnostic Monitoring (DDM) supported.
- Single +3.3 V power supply.
- Operating temperature:
- Standard: 0 °C to +70 °C
- RoHS compliant and Class 1 laser safety certified.
About XFP
XFP: optical transceiver module supporting up to 10 Gbps speed, used in various network devices.
Related Products

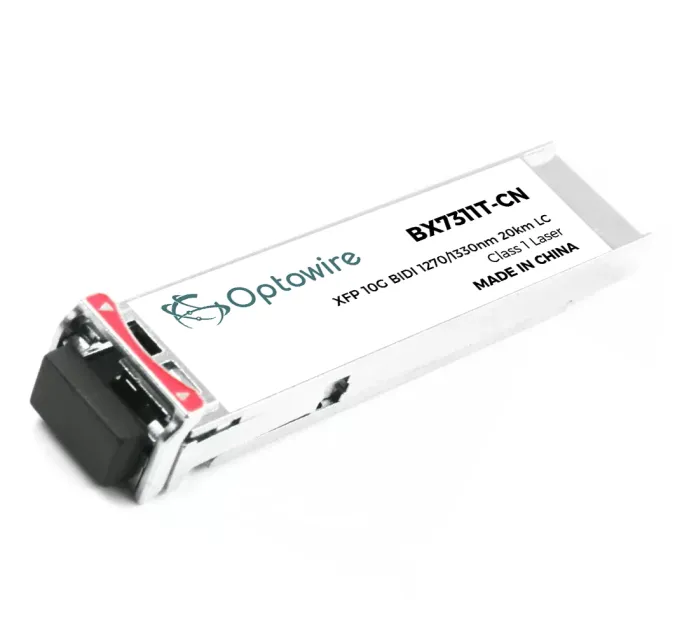

Model:XFP 10G BIDI 1270/1330nm 20km LC
XFP 10G BIDI 1270/1330nm 20km LC

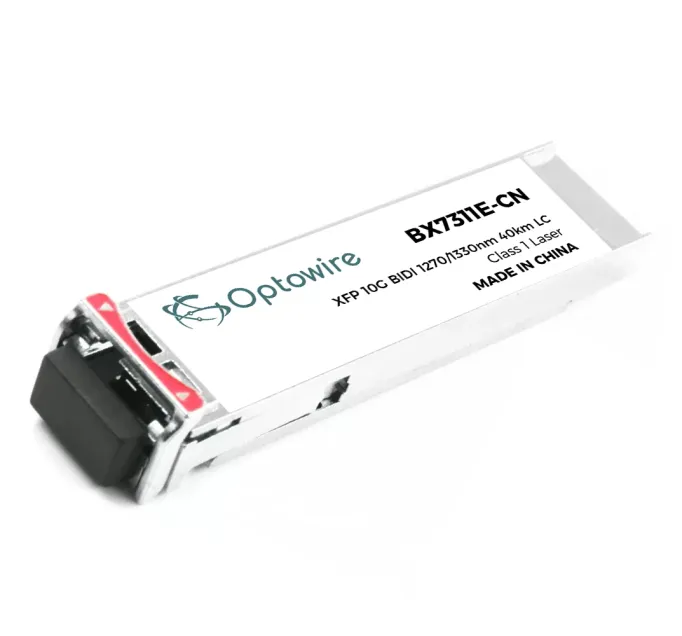

Model:XFP 10G BIDI 1270/1330nm 40km LC
