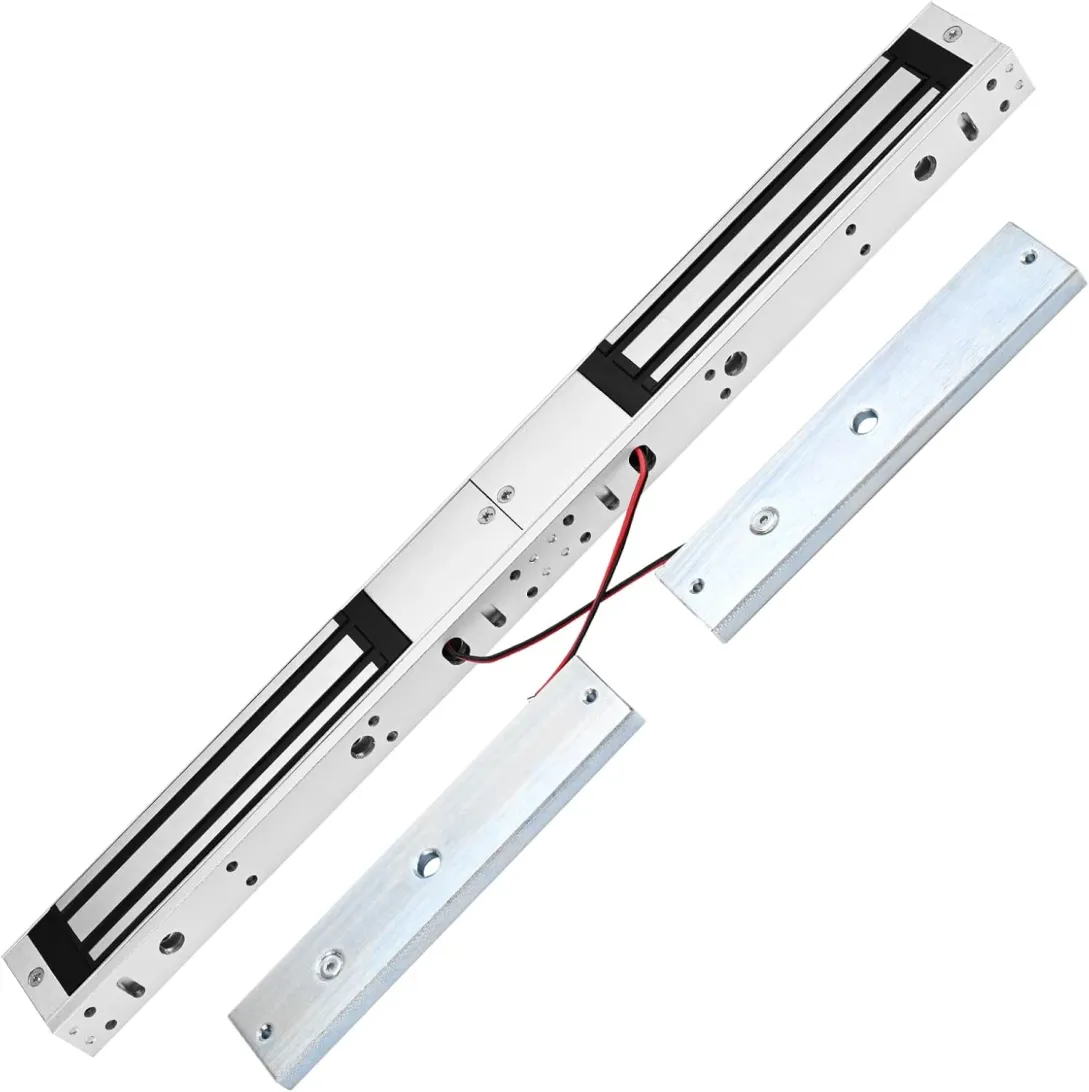

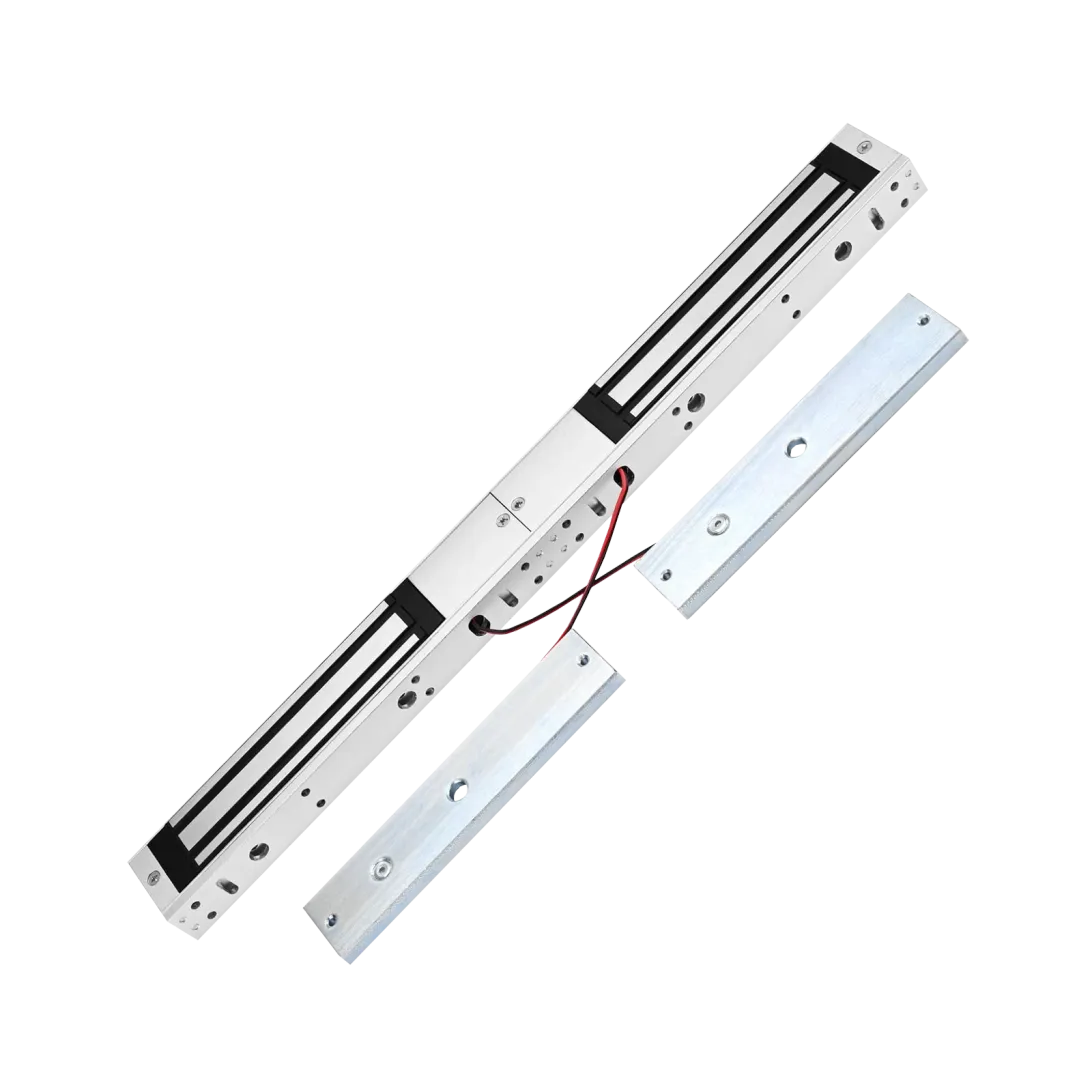

VIV-280BS 280KG 600LBS Double Door EM Lock with LED

VIV-280BS 280KG 600LBS Double Door EM Lock with LED

Article:SEC-ACC-EC-LM-0010
Category:Entrance Accessories
Brand: Vivio
Unit:pcs

1. Strong holding force 280kg/600lbs*2

2. Dual voltage 12V or 24V(optional).

3. The circuit board is easy to install and can be installed by yourself

4. MOV provides reverse current protection.

5. Anti-residual magnetism designed.

6. Security type: fail safe, power off to open.

7. It is with LED indicator, lock signal output and time delay function.

8. It is suitable for wooden door, metal door, glass door and fireproof door.

9. UL, CE, MA, FCC approves.

  • Lock Size:500L*47W*26H(mm)
  • Armature Plate:180L*38W*11H(mm)
  • Input Voltage:DC12V/DC24V(adjustable)
  • Working Current:300mA*2/150mA*2
  • Mounting Bracket:VI-280L/280U/280ZL
  • Certificate of quality:UL/CE/FCC/ROHS
