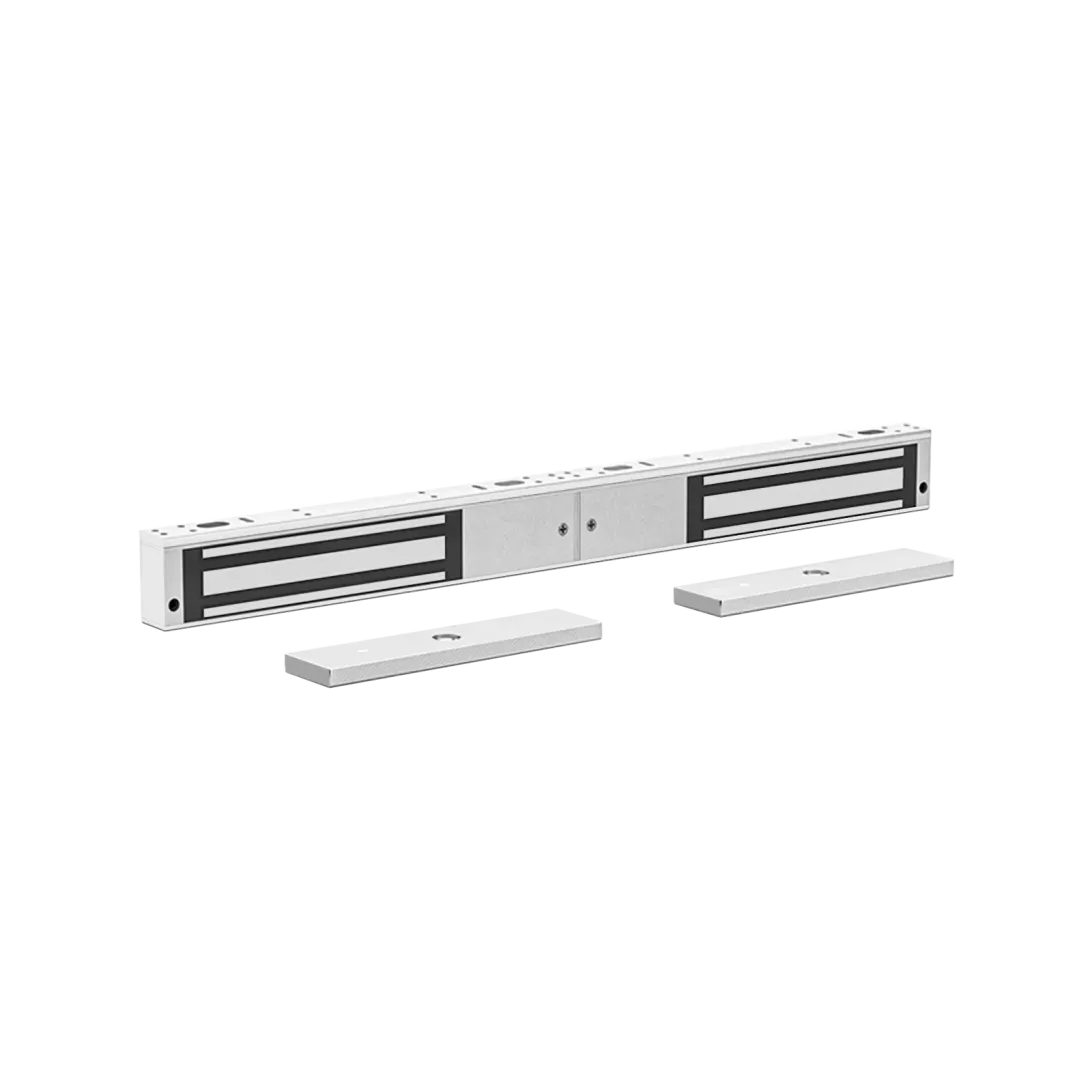

VIV-380BS 380KG Double Door Electric Lock with LED

VIV-380BS 380KG Double Door Electric Lock with LED

Article:SEC-ACC-EC-LM-0016
Category:Entrance Accessories
Brand: Vivio
Unit:pcs

800lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional. CE and UL approves. Except for With LED indicator, it can be classified into double door electric lock. Glass door, wooden door, fireproof door, sliding door and metal door is allowed to be installed. Inbuilt dry contacts lock status signal output ( NO, NC, COM), door status signal output ( NO, NC, COM) make it special.

  • Lock Size:570L*55W*29H(mm)
  • Armature Plate:190L*45W*11H(mm)
  • Input Voltage:DC12V/DC24V (adjustable)
  • Working Current:500mA*2/250mA*2
  • Mounting Bracket:VI-380L/380U/380ZL
  • Certificate of quality:CE/FCC/ROHS

About Entrance Accessories

Entrance accessories are additional devices that expand entrance control functionality.

Article

SEC-ACC-EC-LM-0016

Brand

Vivio

Unit

pcs
