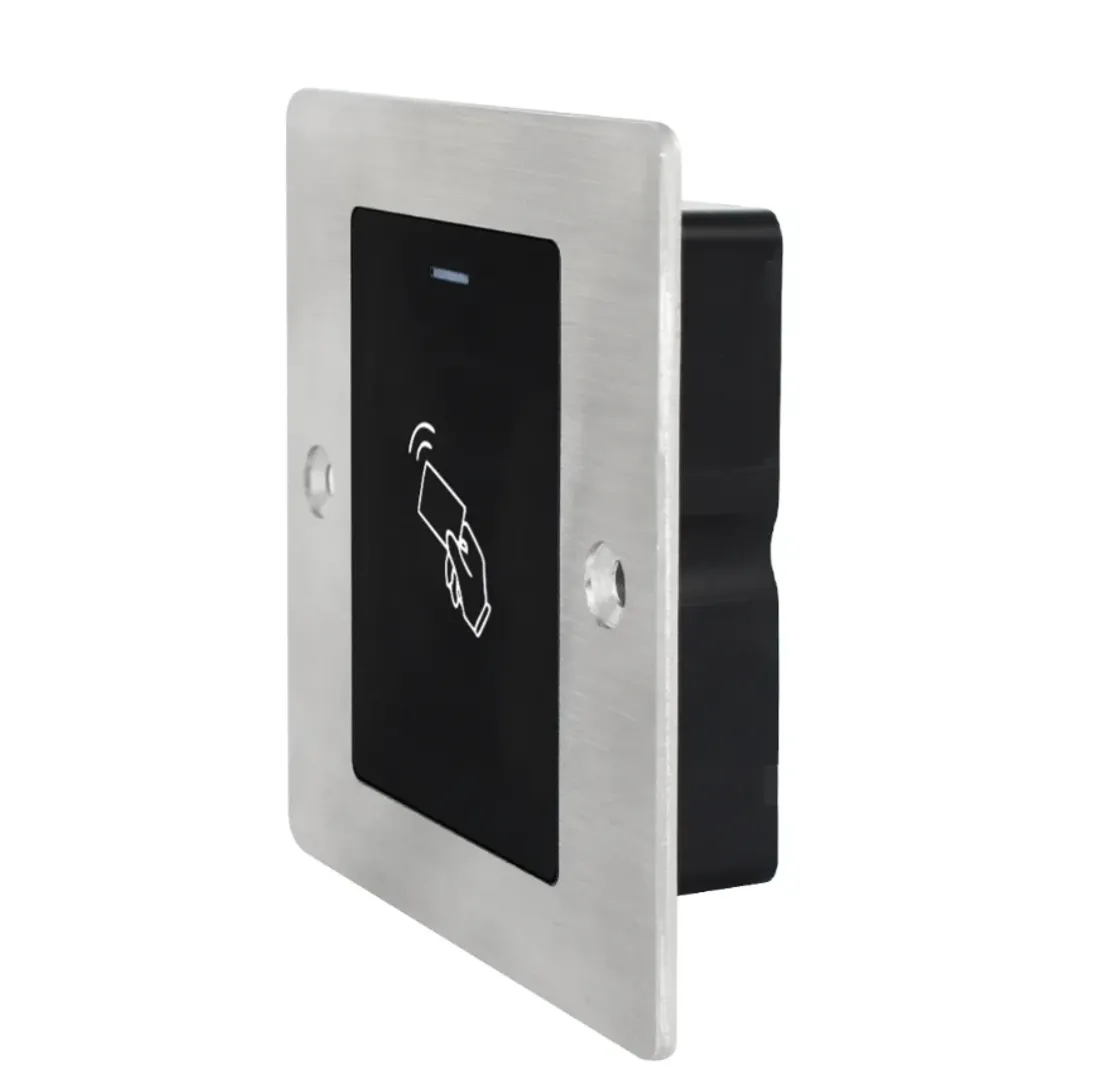

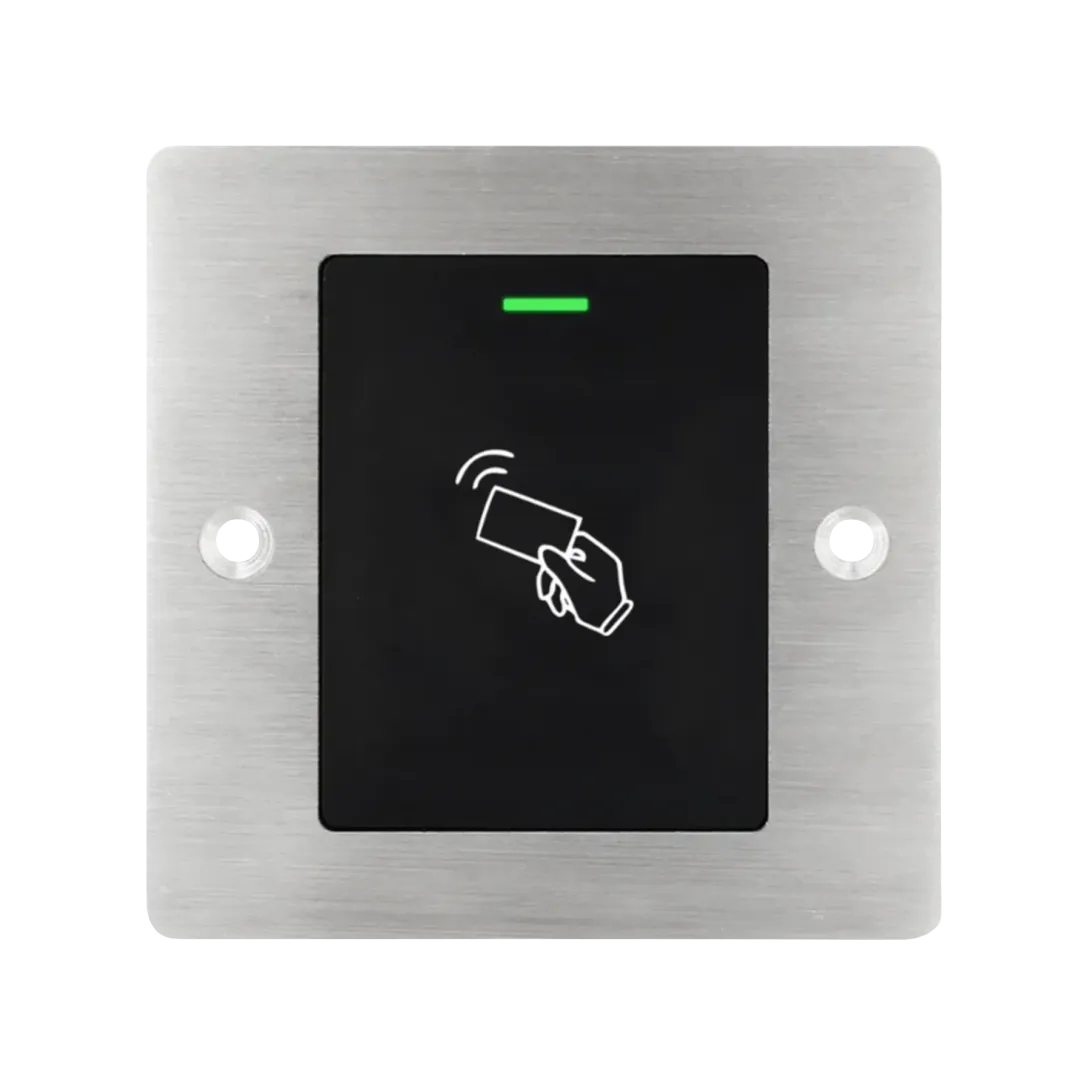

VIV-E2 Embedded RFID Access
Article:SEC-ACC-EC-DAC-0033
Category:Standalone Device
Brand: Vivio
Unit:pcs
The VIV-E2 is a compact standalone RFID access control device with a robust stainless steel embedded design, ideal for door frame installation. It supports both EM and Mifare cards, features Wiegand input/output for versatile integration, and offers waterproof protection (IP66). With anti-tamper LDR sensor, adjustable relay, and a wide working temperature range, it’s suitable for secure indoor and outdoor access solutions.
- Compact embedded stainless steel design
- Supports both 125KHz EM and 13.56MHz Mifare card types
- Wiegand 26-bit output and 26/34-bit auto-detect input
- Relay output with adjustable duration (0–99s)
- Anti-tamper protection with built-in LDR
- Waterproof (IP66) and suitable for outdoor installations
- Operating temperature range: -40°C to 60°C
- Low power consumption (<50mA idle current)
About Standalone Device
Standalone devices work without a central controller, providing simple and independent access control.
