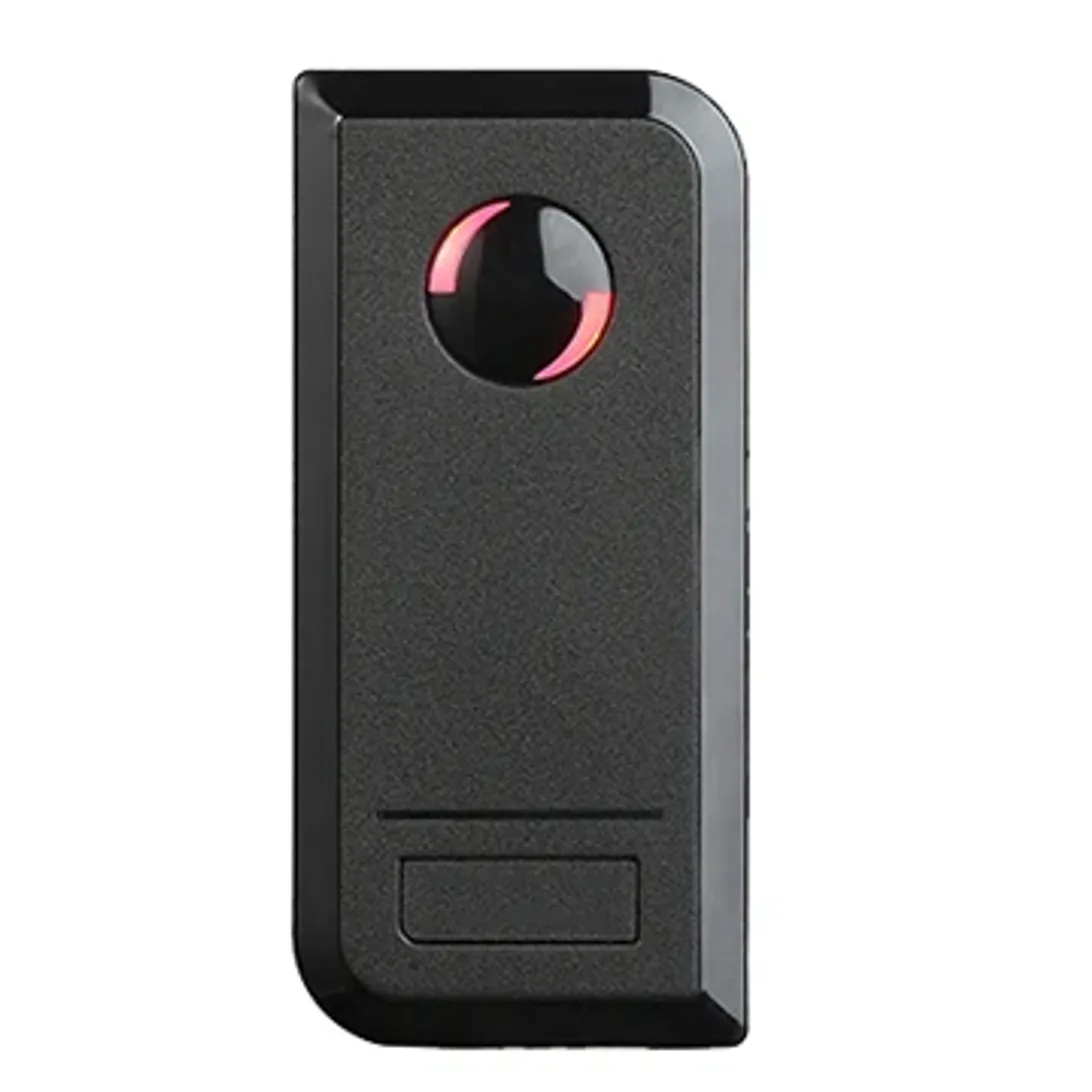

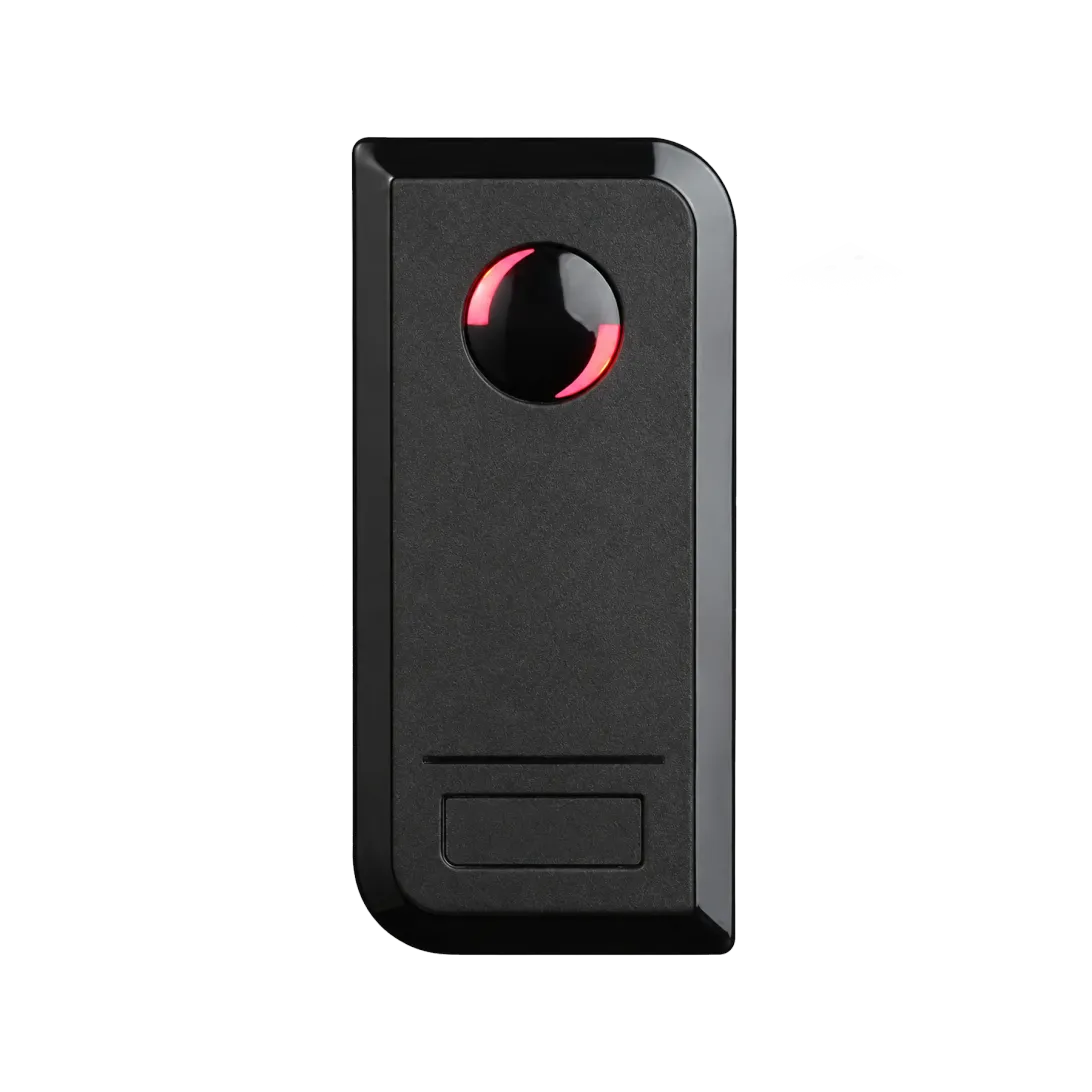

VIV-S1-RX Wiegand Reader (E/H/Mifare)

The VIV-S1-RX is an advanced proximity reader that operates on both 125KHz and 13.56MHz frequencies. It supports multiple card types, including 125KHz EM and HID cards, as well as 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC, and CPU cards. The reader offers a reading range of 3 to 8 centimeters and outputs data in Wiegand formats: 26 bits for EM and HID cards, and 34 or 58 bits for Mifare cards. Designed for durability, it is waterproof with an IP66 rating and operates effectively in temperatures ranging from -40°C to 60°C (-40°F to 140°F). Its sleek, thin profile and modern appearance make it suitable for various access control applications.
