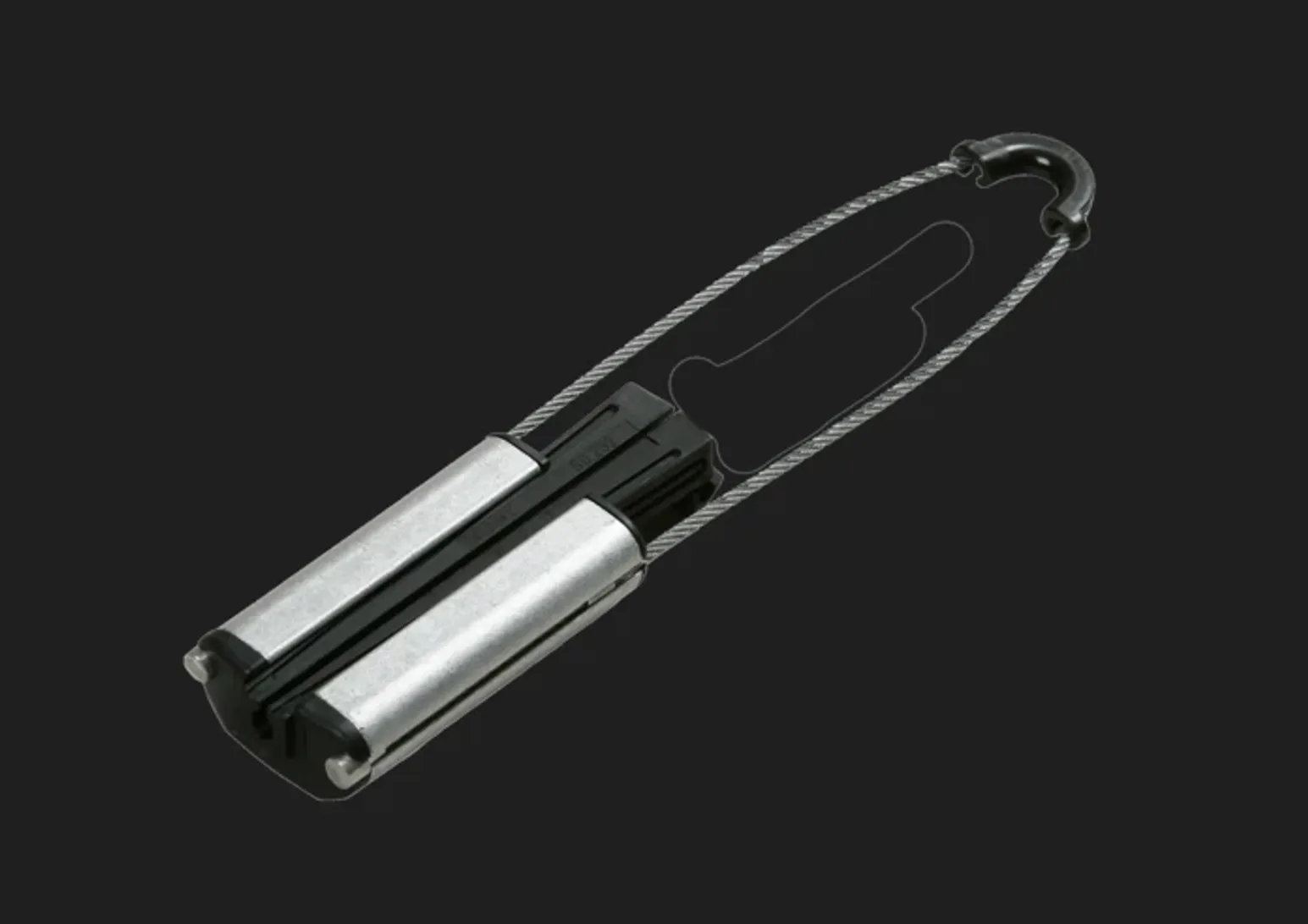

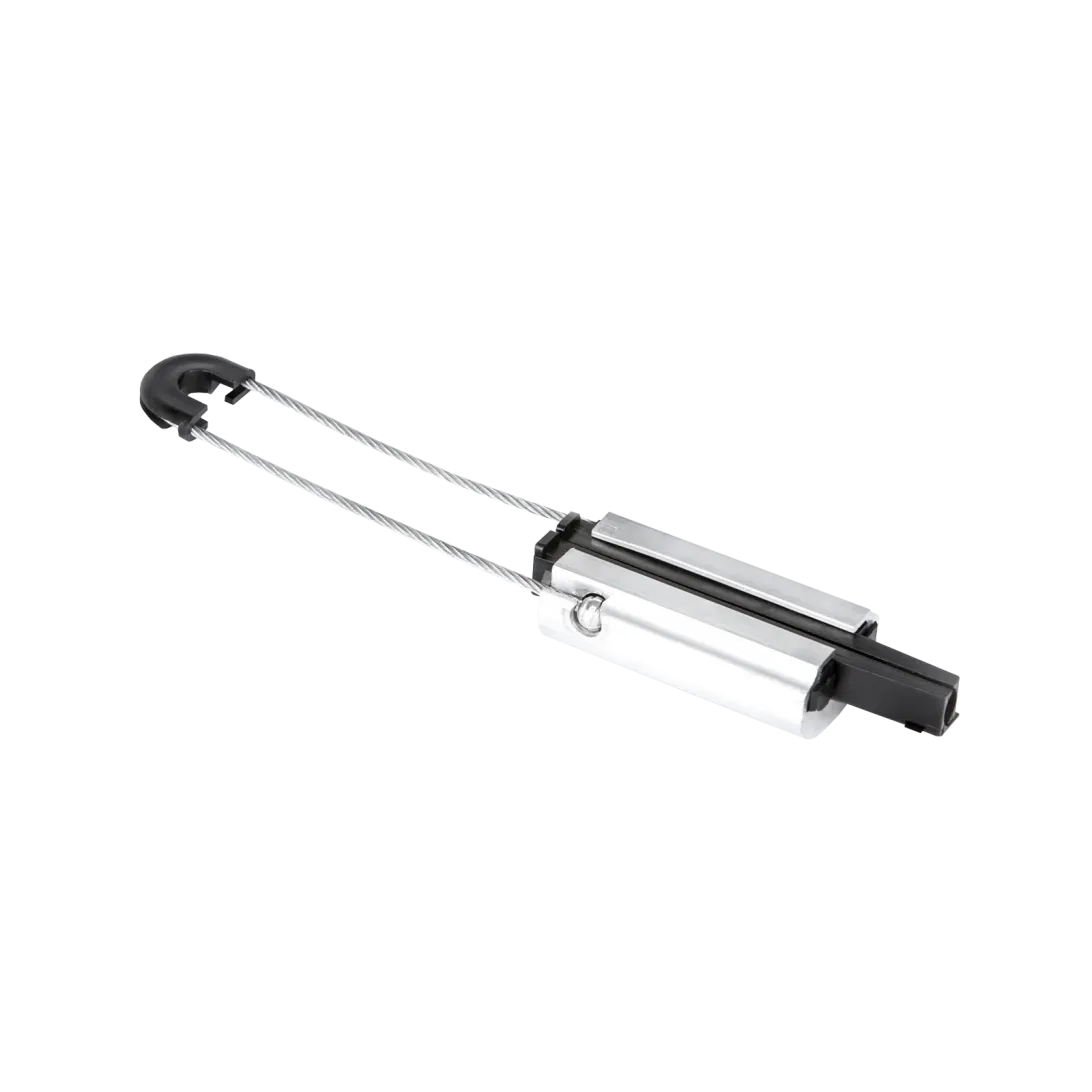

Optowire Anchor clamp PA-1000
Article:T-CM-TC-AC-0018
Category:Anchor Clamp
Brand: Optowire
Unit:pcs
Dead end clamp is made of plastic body with very high mechanical and climatic resistance. A stainless steel flexible cord equipped with movable insulating saddle and two sleeves compressed on the ends to prevent detachment from the clamp body.An inner sheath consisting of two insulating plastic wedges for clamping of the neutral carrier without damaging the cable insulation.
- Cable diameter(mm) - 8-11
- Material: galvanized steel
- Operating temperature, °C: -40 to 50
- Allowable load(KN): 10
About Anchor Clamp
Anchor clamps secure ADSS, FIG-8, Drop cables on poles and walls. UV-resistant, corrosion-proof, for round or flat cables. Easy, tool-free installation.
