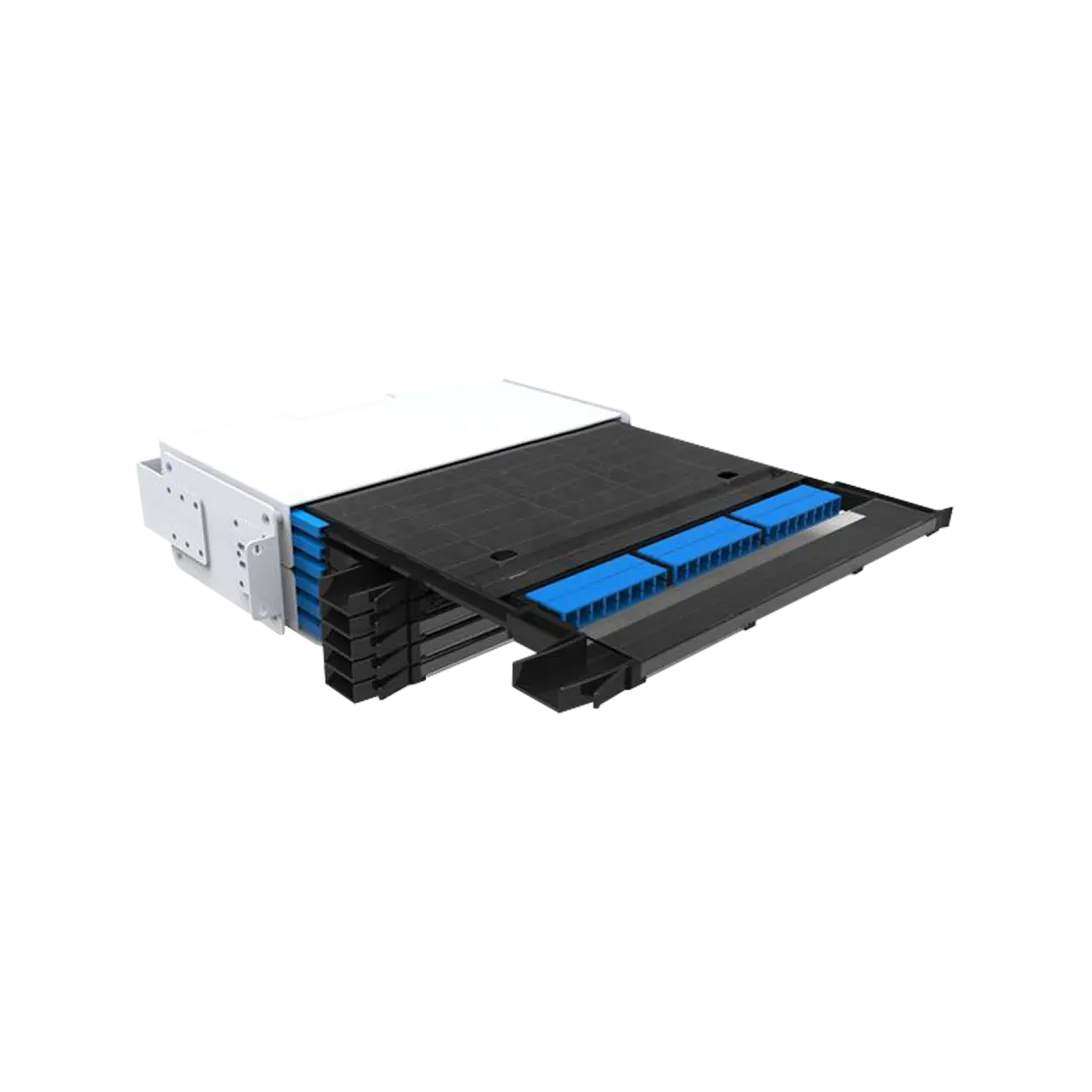

Rack Mount Patch Panel ODU-L11-216SC/324LC
ODF (Optical Distribution Frame) rack mount patch panel ODU-L11 is designed for a high-density fiber management system, adaptable with standard 19”, 21'' and 23'' frame and currently being widely used in high density optical fiber distribution frames, which can be deployed in data center, central office, FTTH, FTTB, etc. The rack mount panel is made of top quality metal material and could contain up to 12 high density Integrated splice and distribution unit (up to 432 LC or 288 SC). Splice and distribution are integrated in one modules. A 1U panel will hold 3 modules, a 2U panel will hold 6 modules and a 4U panel will hold 12 modules. Each module can complete the splice and distribution processes of 24 SC or 36 LC.
- 3U - 216SC/324LC
- without H3 modules
- Empty: Without adapters and pigtails
- Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
- Easy installation:19”, 21'' and 23'' rack mounting.
- Easy operations: using sliding rails to install the high density modules.
- Easy removable of modules
- Multi-functions – Works with LongXing Series modules H1 (not just for splicing & terminating, also with options for splitters or fiber storage).
About Optical Patch Panels
Optical patch panels for fiber termination and cable management. Compatible with SC/LC adapters, ideal for structured, high-density fiber networks.
Related Products
Model:ODU-L16-96 With SC/UPC Pigtail
Rack Mount Patch Panel ODU-L16-96 With SC/UPC Pigtail
Model:ODU-D96-SA With SC/APC Pigtail

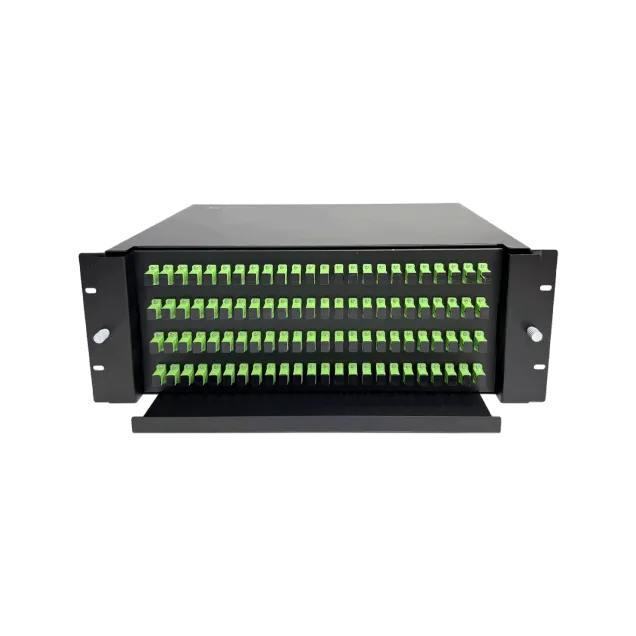

Rack Mount Patch Panel ODU-D96-SA With SC/APC Pigtail
