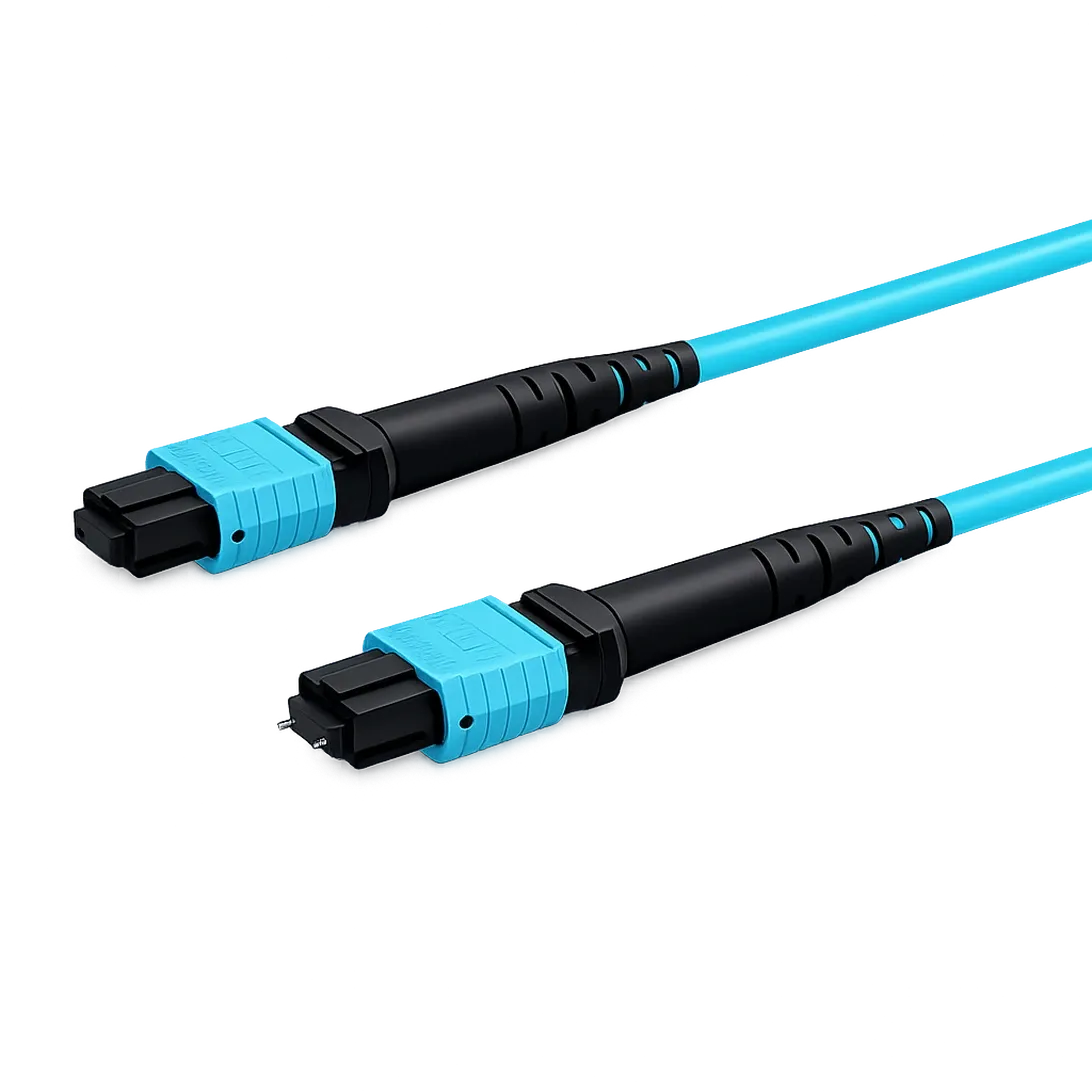

Optowire OM3, MTP-MTP (UPC) Type B Trunk Cable 8 (1x8) Core, 2,0mm, LSZH, 3m.
The Optowire OM3 MTP–MTP (UPC) Type B Trunk Cable (8FO, 1×8, 3m) is a high-performance optical interconnect solution designed for data center and backbone applications. Featuring MTP connectors on both ends, it enables efficient parallel optical transmission and fast deployment of high-density fiber links. With low insertion loss and high return loss (≥ 20 dB), it ensures stable high-speed signal transmission with minimal reflection. The bend-insensitive OM3 fiber provides flexibility during installation, while the LSZH outer sheath enhances fire safety and environmental compliance. Ideal for scalable 40G/100G network infrastructures and structured cabling systems.
- OM3 multimode MTP(UPC) to MTP(UPC) trunk cable
- 8-core (1×8) configuration with Type B polarity
- Low insertion loss MTP connectors ≤ 0.35 dB
- Return loss ≥ 20 dB for stable signal performance
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for 40G/100G high-speed data center networks
About Multi-Mode
Multi-mode patch cords are ideal for short-distance data links, offering fast, low-loss connections between switches, servers, and network panels.
