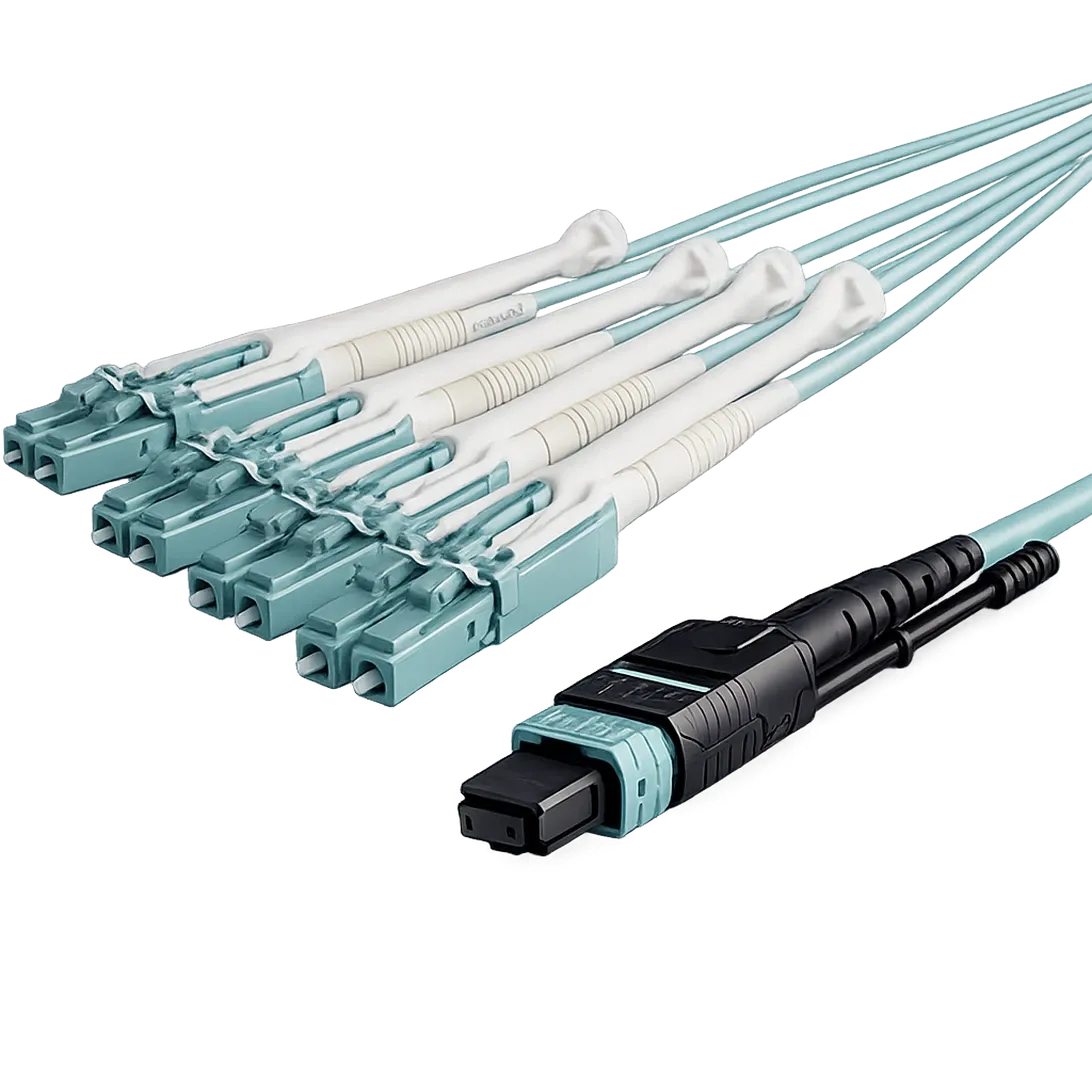

Optowire OM3, MTP(UPC)-LC(UPC) Trunk Cable 12 (1x12) Core, 2,0mm, LSZH, 10m.
The Optowire OM3 MTP(UPC)–LC(UPC) Duplex Type B Trunk Cable (12FO, 1×12, 10m) is a high-performance optical solution for data center and backbone connectivity. It features a 12-fiber configuration that enables efficient aggregation of LC duplex channels, improving cable management and optimizing rack space. Equipped with low insertion loss and high return loss connectors (MTP ≥ 20 dB, LC ≥ 50 dB), it ensures stable, high-speed transmission with minimal signal reflection. The LSZH outer sheath enhances fire safety, while bend-insensitive OM3 fiber provides flexibility and durability. Ideal for scalable 40G/100G network deployment and expansion.
- OM3 multimode MTP(UPC) to LC(UPC) duplex trunk cable
- 12-core (1×12) configuration with Type B polarity
- Low insertion loss: MTP ≤ 0.35 dB, LC ≤ 0.3 dB
- Return loss: MTP ≥ 20 dB, LC ≥ 50 dB
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Supports 10/25G to 40/100G high-speed network applications
About Multi-Mode
Multi-mode patch cords are ideal for short-distance data links, offering fast, low-loss connections between switches, servers, and network panels.
