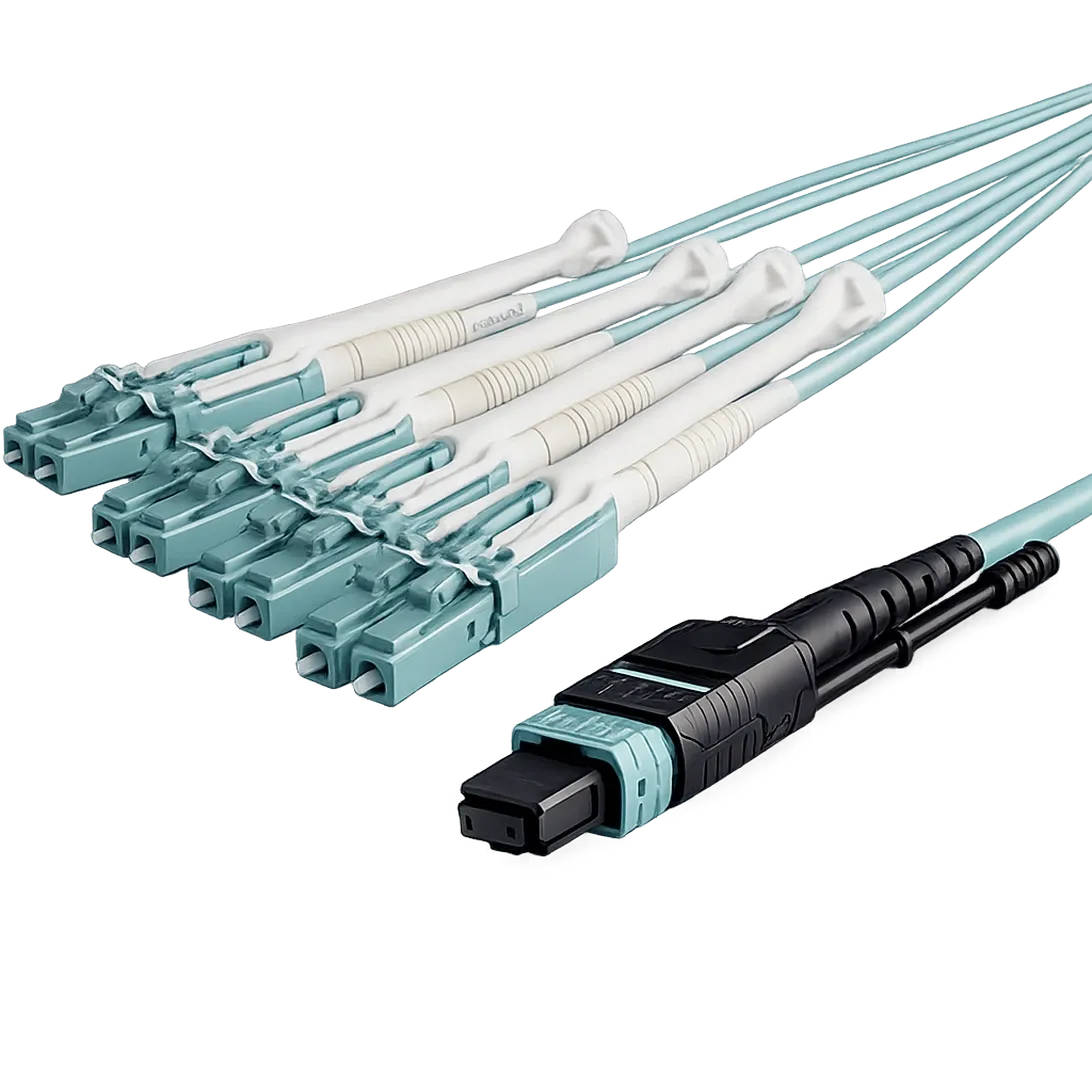

Optowire OM3, MTP(UPC)-LC(UPC) Trunk Cable 24 (1x24) Core, 2,0mm, LSZH, 10m.
The Optowire OM3 MTP(UPC)–LC(UPC) Duplex Type B Trunk Cable (24FO, 1×24, 10m) is a high-density optical connectivity solution engineered for modern data center and backbone infrastructures. Featuring a 24-fiber configuration, it enables efficient aggregation of LC duplex channels, optimizing space utilization and simplifying cable management. Equipped with low insertion loss and high return loss connectors (MTP ≥ 20 dB, LC ≥ 50 dB), it ensures stable high-speed transmission with minimal signal reflection. The LSZH outer sheath enhances fire safety, while bend-insensitive OM3 fiber ensures flexibility and long-term durability. Ideal for scalable 40G/100G network deployment and expansion.
- OM3 multimode MTP(UPC) to LC(UPC) duplex trunk cable
- 24-core (1×24) configuration with Type B polarity
- Low insertion loss: MTP ≤ 0.35 dB, LC ≤ 0.3 dB
- Return loss: MTP ≥ 20 dB, LC ≥ 50 dB
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for high-density 40G/100G data center networks
About Multi-Mode
Multi-mode patch cords are ideal for short-distance data links, offering fast, low-loss connections between switches, servers, and network panels.
