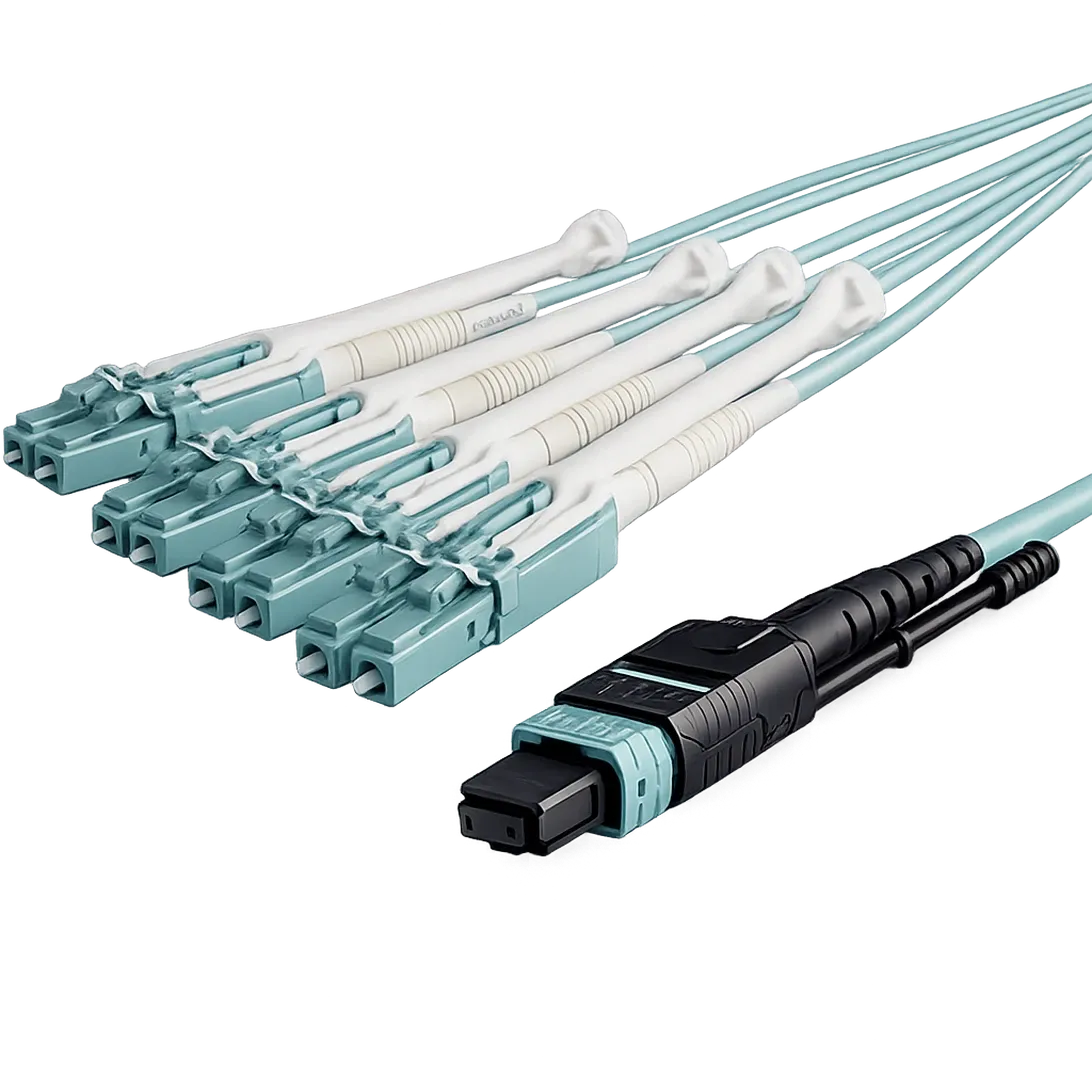

Optowire OM3, MTP(UPC)-LC(UPC) Trunk Cable 96 (8x12) Core, 2,0mm, LSZH, 5m.
The Optowire OM3 MTP(UPC)–LC(UPC) Duplex Type B Trunk Cable (96FO, 8×12, 5m) is a high-density optical connectivity solution engineered for modern data centers and backbone infrastructures. Featuring eight 12-fiber MTP connectors, it enables efficient aggregation of LC duplex channels, optimizing space utilization and simplifying cable management. With low insertion loss and high return loss performance (MTP ≥ 20 dB, LC ≥ 50 dB), it ensures stable high-speed transmission with minimal signal reflection. The LSZH outer sheath enhances fire safety, while bend-insensitive OM3 fiber ensures flexibility and long-term durability. Ideal for scalable 40G/100G network deployment and future expansion.
- OM3 multimode MTP(UPC) to LC(UPC) duplex trunk cable
- 96-core (8×12) ultra high-density configuration with Type B polarity
- Low insertion loss: MTP ≤ 0.35 dB, LC ≤ 0.3 dB
- Return loss: MTP ≥ 20 dB, LC ≥ 50 dB
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for high-capacity 40G/100G data center networks
About Multi-Mode
Multi-mode patch cords are ideal for short-distance data links, offering fast, low-loss connections between switches, servers, and network panels.
