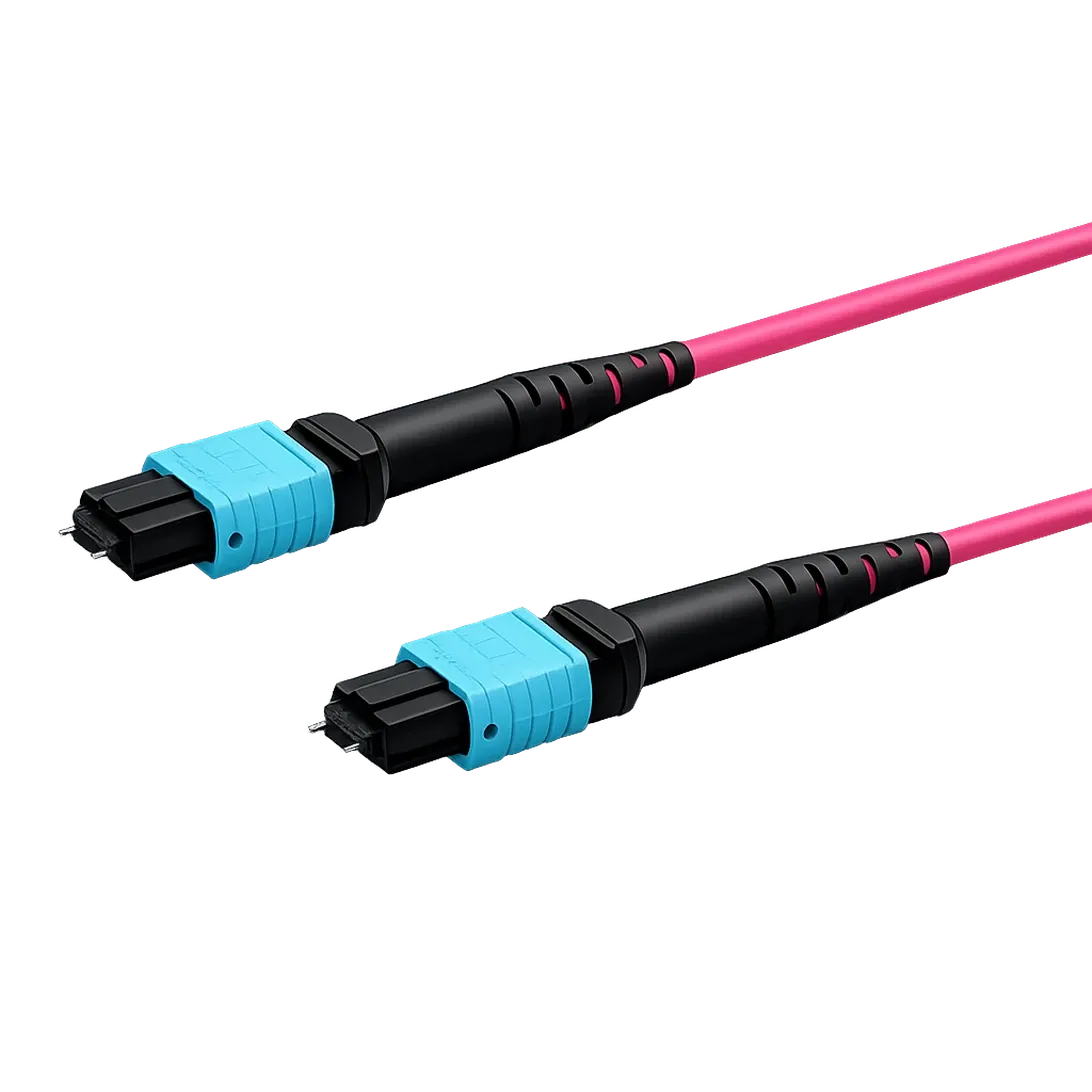

Optowire OM4, MTP-MTP (UPC) Type B Trunk Cable 24 (1x24) Core, 2,0mm, LSZH, 5m.
The Optowire OM4 MTP–MTP (UPC) Type B Trunk Cable (24FO, 1×24, 5m) is a high-density multimode optical interconnect solution engineered for modern data center and enterprise network infrastructures. Featuring UPC-polished MTP connectors on both ends, it ensures low insertion loss and stable signal transmission for parallel optical links. The 24-fiber configuration supports high-capacity data transmission for 40G/100G networks. Built with OM4 fiber and a flame-retardant LSZH sheath, it delivers flexibility, durability, and enhanced safety for structured cabling and backbone applications.
- OM4 multimode MTP(UPC) to MTP(UPC) trunk cable
- 24-core (1×24) high-density configuration with Type B polarity
- Low insertion loss MTP connectors ≤ 0.35 dB
- High return loss ≥ 20 dB for stable signal performance
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for high-density 40G/100G data center networks
About Multi-Mode
Multi-mode patch cords are ideal for short-distance data links, offering fast, low-loss connections between switches, servers, and network panels.
