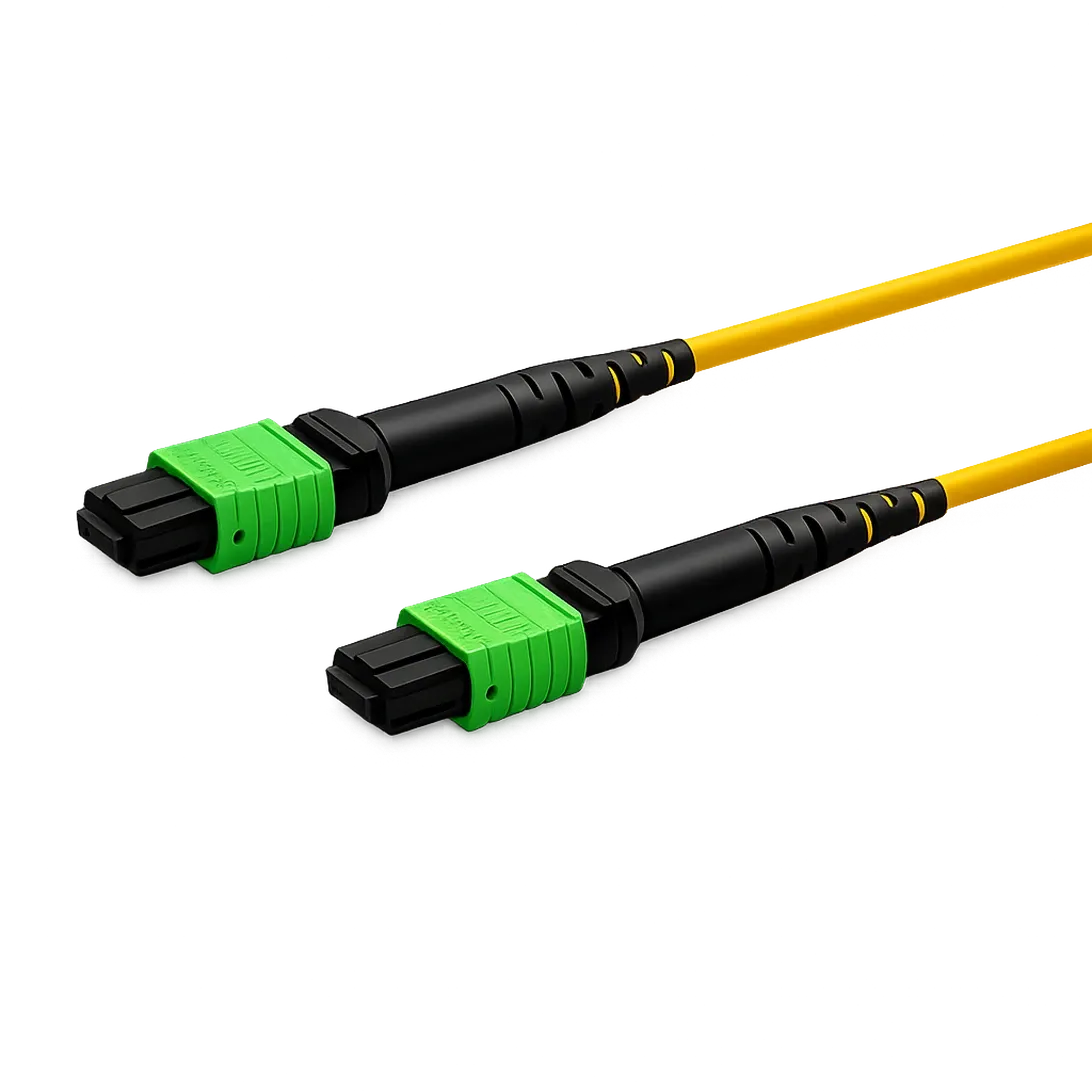

Optowire OS2, MTP-MTP (APC) Type B Trunk Cable 48 (2x24) Core, 2,0mm, LSZH, 3m.
The Optowire OS2 MTP–MTP (APC) Type B Trunk Cable (48FO, 2×24, 3m) is a high-density single-mode optical interconnect solution engineered for modern data center and telecom infrastructures. Featuring two 24-fiber MTP APC connectors, it enables efficient parallel optical transmission while ensuring superior return loss (≥ 60 dB) and minimal signal reflection. The cable supports high-speed long-distance communication for 40G/100G/400G networks. Built with low-loss OS2 fiber and a flame-retardant LSZH sheath, it delivers durability, flexibility, and enhanced safety, making it ideal for structured cabling and backbone applications.
- OS2 single-mode MTP(APC) to MTP(APC) trunk cable
- 48-core (2×24) high-density configuration with Type B polarity
- Low insertion loss MTP connectors ≤ 0.35 dB
- High return loss ≥ 60 dB (APC) for minimal reflection
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for high-capacity long-distance 40G/100G/400G transmission
About Single Mode
Single-mode patch cords ensure high-bandwidth, low-loss data transmission over long distances, ideal for FTTH, backbones, data centers, and telecom networks.
