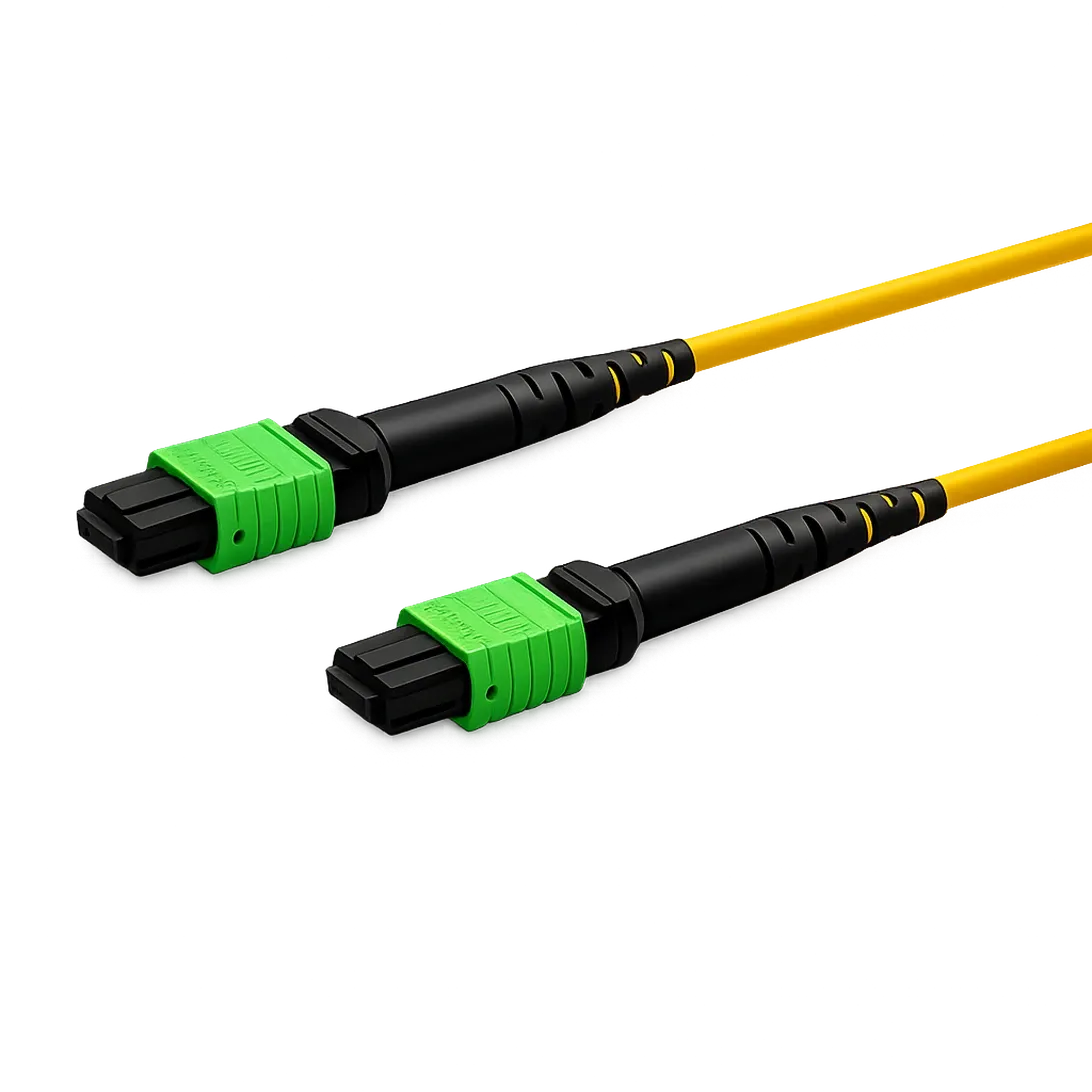

Optowire OS2, MTP-MTP (APC) Type B Trunk Cable 8 (1x8) Core, 2,0mm, LSZH, 1m.
The Optowire OS2 MTP–MTP (APC) Type B Trunk Cable (8FO, 1×8, 1m) is a high-performance single-mode optical interconnect solution designed for long-distance and high-speed data center and telecom applications. Featuring APC-polished MTP connectors on both ends, it delivers superior return loss (≥ 60 dB), ensuring minimal signal reflection and maximum transmission stability. The cable supports parallel optical transmission for high-capacity 40G/100G/400G networks. Built with low-loss OS2 fiber and a flame-retardant LSZH sheath, it provides excellent durability, flexibility, and safety for modern structured cabling and backbone infrastructures.
- OS2 single-mode MTP(APC) to MTP(APC) trunk cable
- 8-core (1×8) configuration with Type B polarity
- Low insertion loss MTP connectors ≤ 0.35 dB
- High return loss ≥ 60 dB (APC) for minimal reflection
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for long-distance 40G/100G/400G transmission
About Single Mode
Single-mode patch cords ensure high-bandwidth, low-loss data transmission over long distances, ideal for FTTH, backbones, data centers, and telecom networks.
