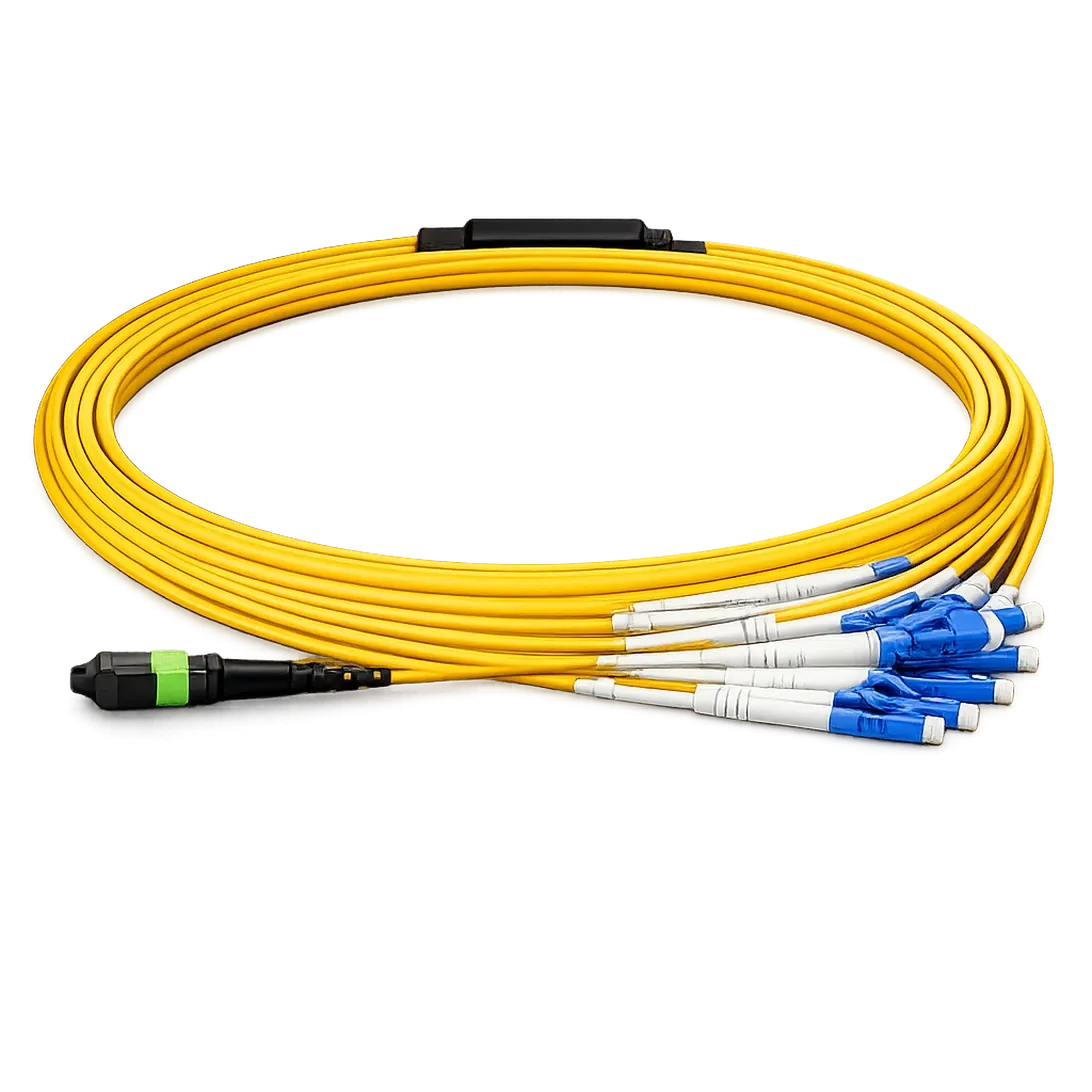

Optowire OS2, MTP(APC)-LC(UPC) Trunk Cable 48 (4x12) Core, 2,0mm, LSZH, 5m.
The Optowire OS2 MTP(APC)–LC(UPC) Duplex Type B Trunk Cable (48FO, 4×12, 5m) is a high-density single-mode optical solution engineered for modern data center and telecom infrastructures. Featuring four 12-fiber MTP APC connectors, it enables efficient aggregation of LC duplex channels while ensuring superior return loss (≥ 60 dB) and minimal signal reflection. The cable supports high-speed long-distance transmission for 40G/100G/400G networks. Built with low-loss OS2 fiber and a flame-retardant LSZH sheath, it provides excellent durability, flexibility, and safety, making it ideal for structured cabling and backbone applications.
- OS2 single-mode MTP(APC) to LC(UPC) duplex trunk cable
- 48-core (4×12) high-density configuration with Type B polarity
- Low insertion loss: MTP ≤ 0.35 dB, LC ≤ 0.3 dB
- High return loss: MTP ≥ 60 dB (APC), LC ≥ 50 dB (UPC)
- LSZH 2.0 mm jacket, flame-retardant and halogen-free
- Designed for long-distance 40G/100G/400G transmission
About Single Mode
Single-mode patch cords ensure high-bandwidth, low-loss data transmission over long distances, ideal for FTTH, backbones, data centers, and telecom networks.
