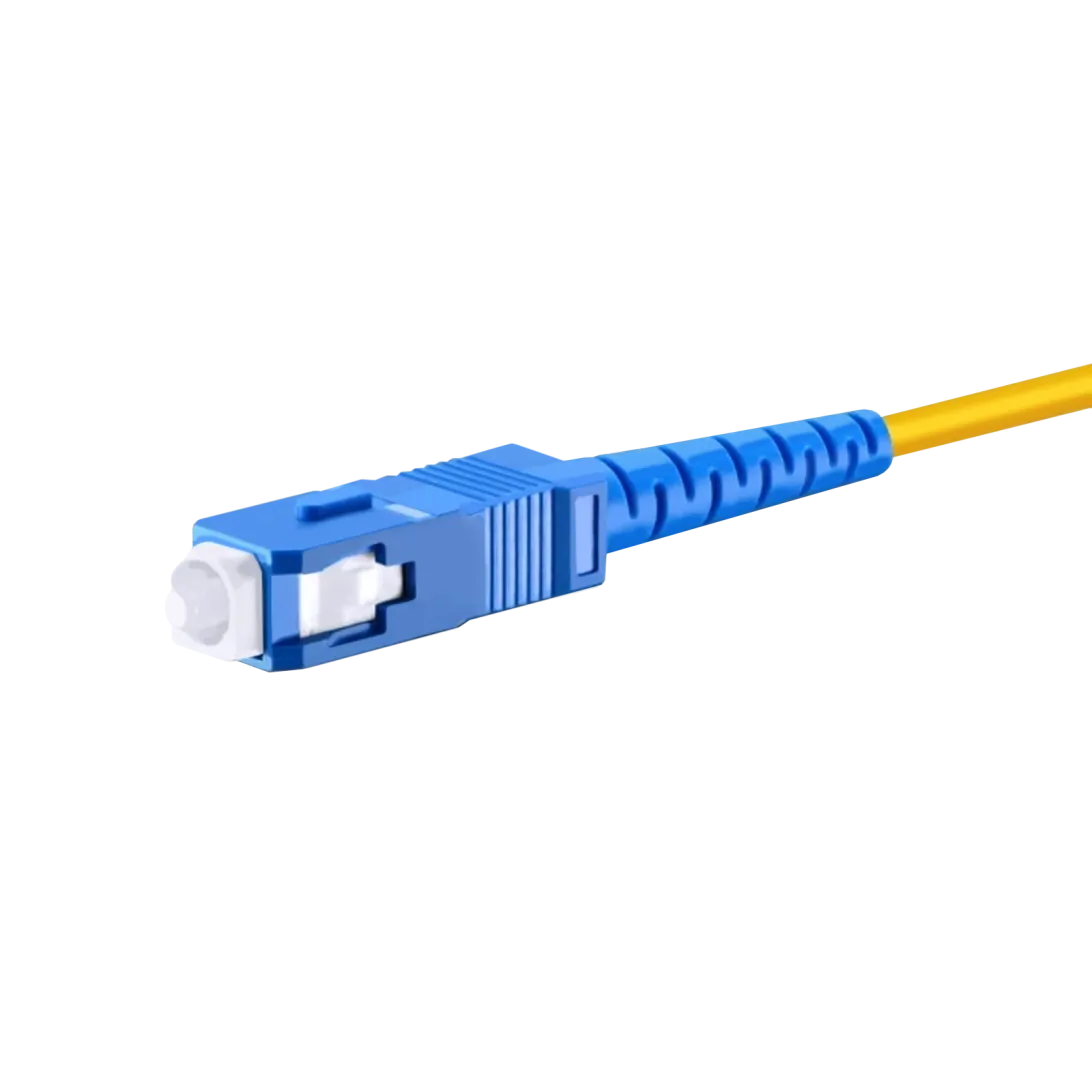

Optowire SC/UPC Pigtail 0.9mm fiber length 1.5m G657A2 LSZH
The Optowire SC/UPC Pigtail is a single-mode fiber optic cable built for precise and reliable connectivity. With a 0.9mm diameter and a fiber length of 1.5 meters, it is ideal for a variety of networking applications. Made with G657A2 fiber, it offers excellent bend tolerance for tight installation spaces. The SC/UPC connector ensures low insertion loss and high signal quality. Encased in an LSZH (Low Smoke Zero Halogen) jacket, it provides enhanced safety by minimizing toxic emissions in case of fire. This pigtail is designed for telecom networks, data centers, and FTTx deployments, delivering consistent and high-speed performance.
● LSZH Flame-retardant Fiber Optic Cable
with Tight-buffered Coating on Each Optical
Fiber
● G.657.A2 Bend Insensitive Fiber & 10mm Min.
Bend Radius
● Optical Testing Guarantees Insertion Loss
and Returns Loss
● Support Both Fusion and Mechanical
Splicing for Fiber Cabling Systems
About Single Mode
Single-mode pigtails provide seamless fiber connection between optical modules and patch panels, ensuring minimal insertion loss and high performance in FTTH and telecom networks.
