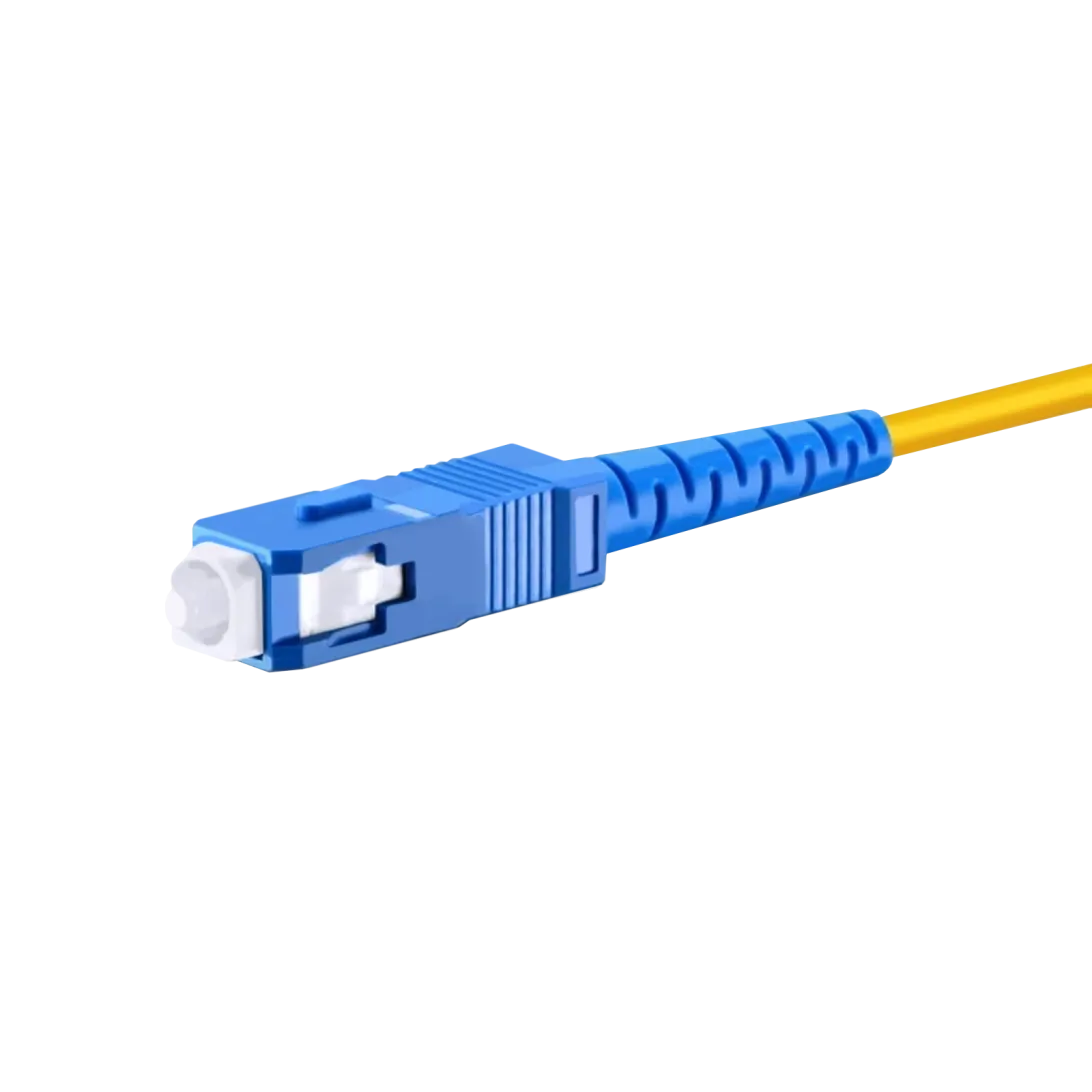

Optowire SC/UPC Pigtail 0.9mm fiber length 6m G657A2 LSZH
The Optowire SC/UPC Pigtail is a single-mode fiber optic cable engineered for precise and reliable connections. With a 0.9mm diameter and a fiber length of 6 meters, it is suitable for diverse networking applications. Made with G657A2 fiber, it offers exceptional bend tolerance for tight installation conditions. The SC/UPC connector ensures low insertion loss and excellent signal performance. Encased in an LSZH (Low Smoke Zero Halogen) jacket, it enhances safety by minimizing toxic emissions during fire incidents. Ideal for telecom networks, data centers, and FTTx deployments, this pigtail delivers consistent and high-speed connectivity.
● LSZH Flame-retardant Fiber Optic Cable
with Tight-buffered Coating on Each Optical
Fiber
● G.657.A2 Bend Insensitive Fiber & 10mm Min.
Bend Radius
● Optical Testing Guarantees Insertion Loss
and Returns Loss
● Support Both Fusion and Mechanical
Splicing for Fiber Cabling Systems
About Single Mode
Single-mode pigtails provide seamless fiber connection between optical modules and patch panels, ensuring minimal insertion loss and high performance in FTTH and telecom networks.
