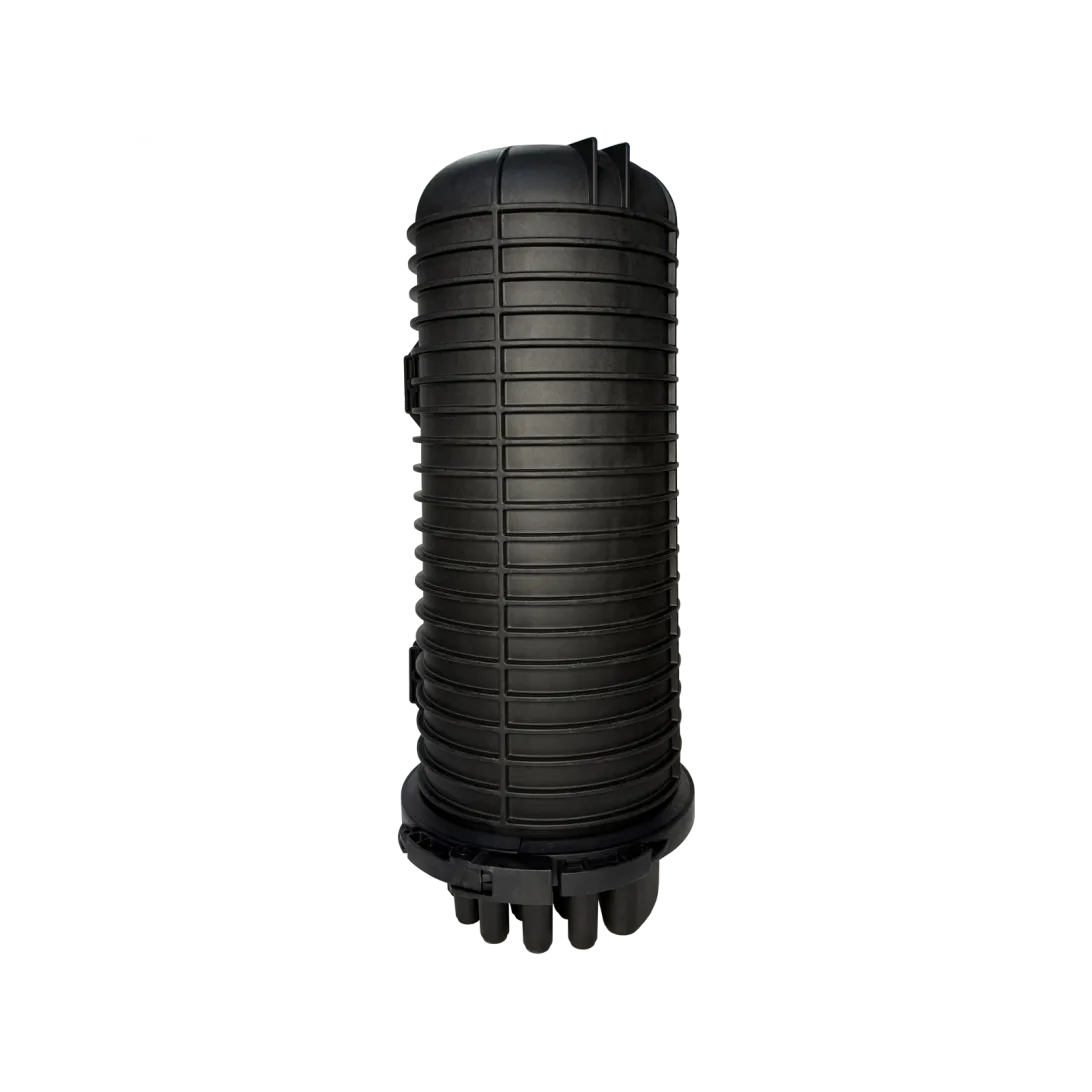

YCDH-D648-1 Dome Type Fiber Optic Splice Closure
YCDH-D648-1 FOSC (Fiber Optic Splice Closure) series offer a unique solution for big capacity solution for deployment of fiber to the home. 648 FOSC series of dome closure is a family product line, available in three sizes: the 648-A, 648-B and 648. All sizes are designed for use with comment cable construction (loose buffer tube, loose fiber), in any environmental (aerial, pedestal, buried, handhole, manhole). YCDH-D648-1 closure is the biggest in the 648 FOSC series which provide max capacity up to 648f.
● Made of modified engineering plastic with high strength, anti impact and anti corrosion.
● Cable diameter: 1 uncut port meet φ10～25mm cable; 4 branch ports meet φ14～22mm cable;12 branch ports meet φ8～16mm cable.
● Product capacity: Single fiber max capacity is up to 648f, each tray support 12f or 6f.
● Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
● Sealing mode: heat shrink seal is adopted for cable ports, with protection grade of IP68.
About Dome Type
Dome-type fiber closures for high-capacity splicing and protection. Ideal for aerial, pole, and underground ODN deployments in FTTx networks.
Related Products
Model:YCDH-D144-2

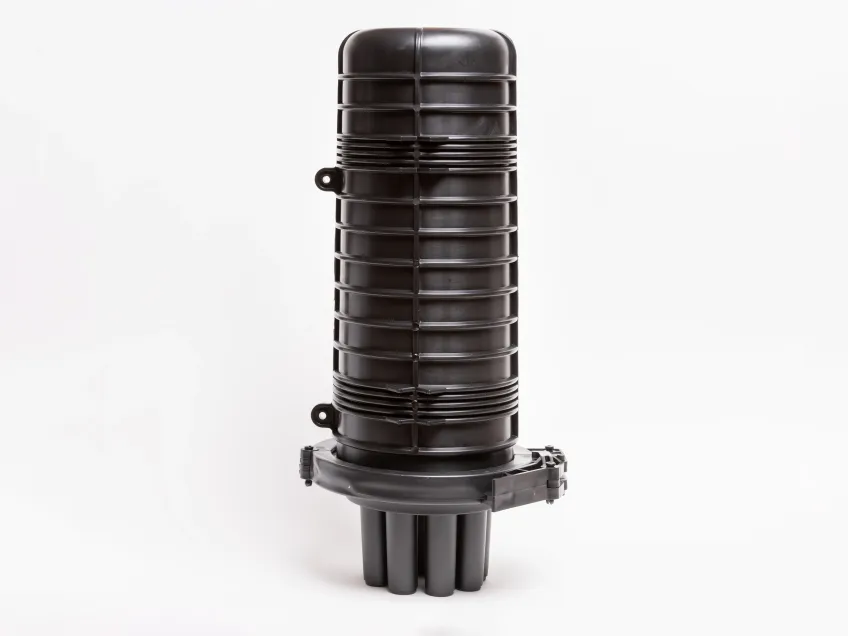

YCDH-D144-2 Dome Type Fiber Optic Splice Closure
Model:YCDH-D096-1

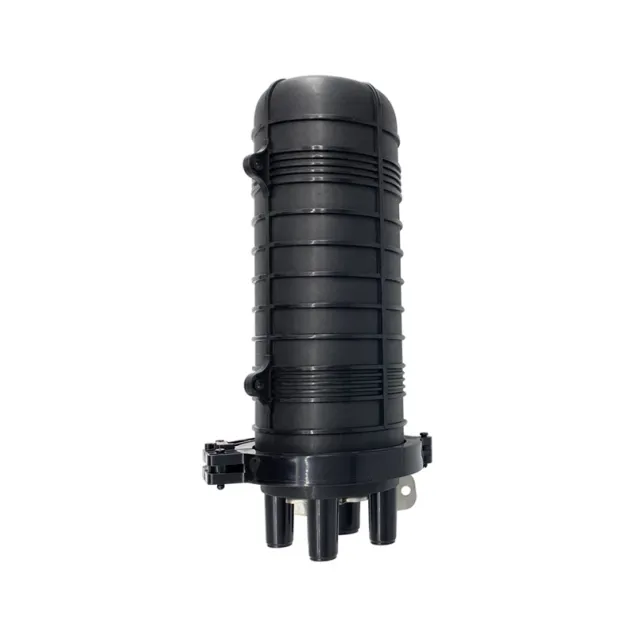

YCDH-D096-1 Dome Type Fiber Optic Splice Closure
Model:YCDM-S096-1

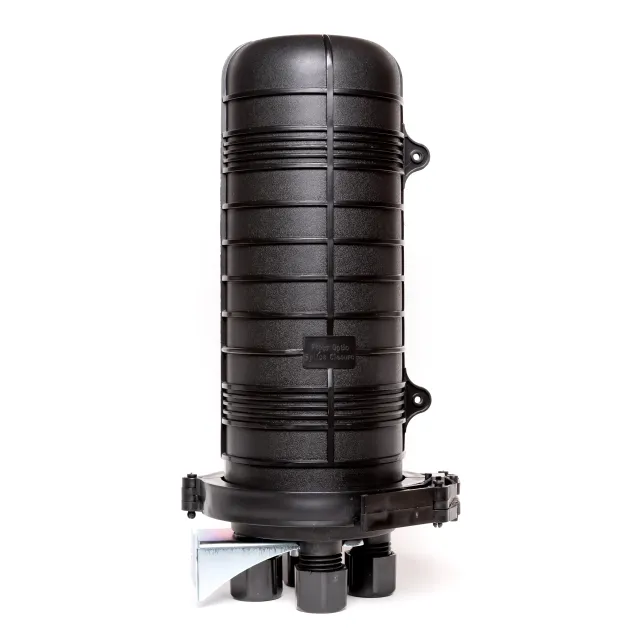

YCDM-S096-1 Dome Type Fiber Optic Splice Closure
Model:YCDH-D048-2

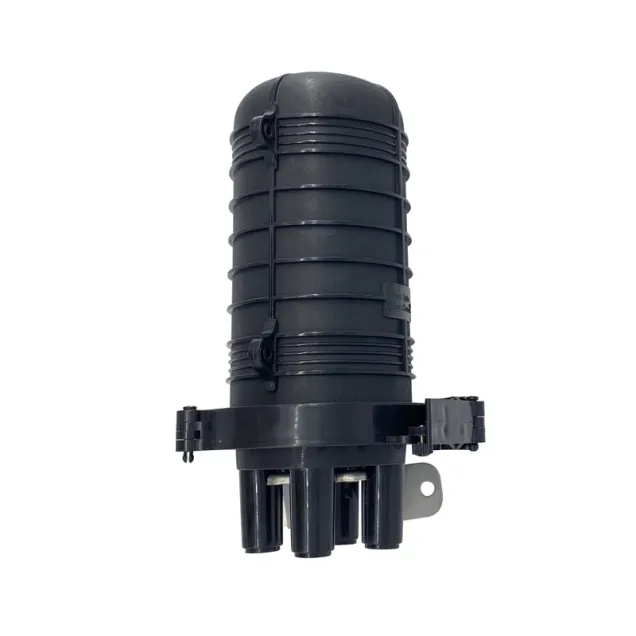

YCDH-D048-2 Dome Type Fiber Optic Splice Closure
