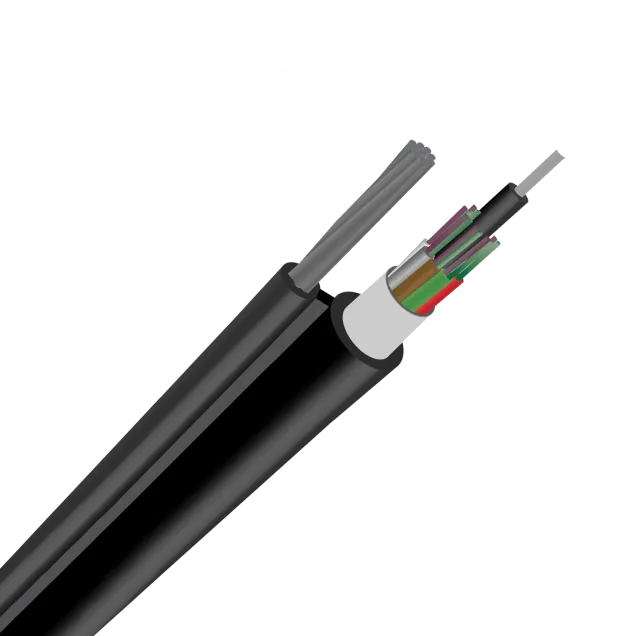

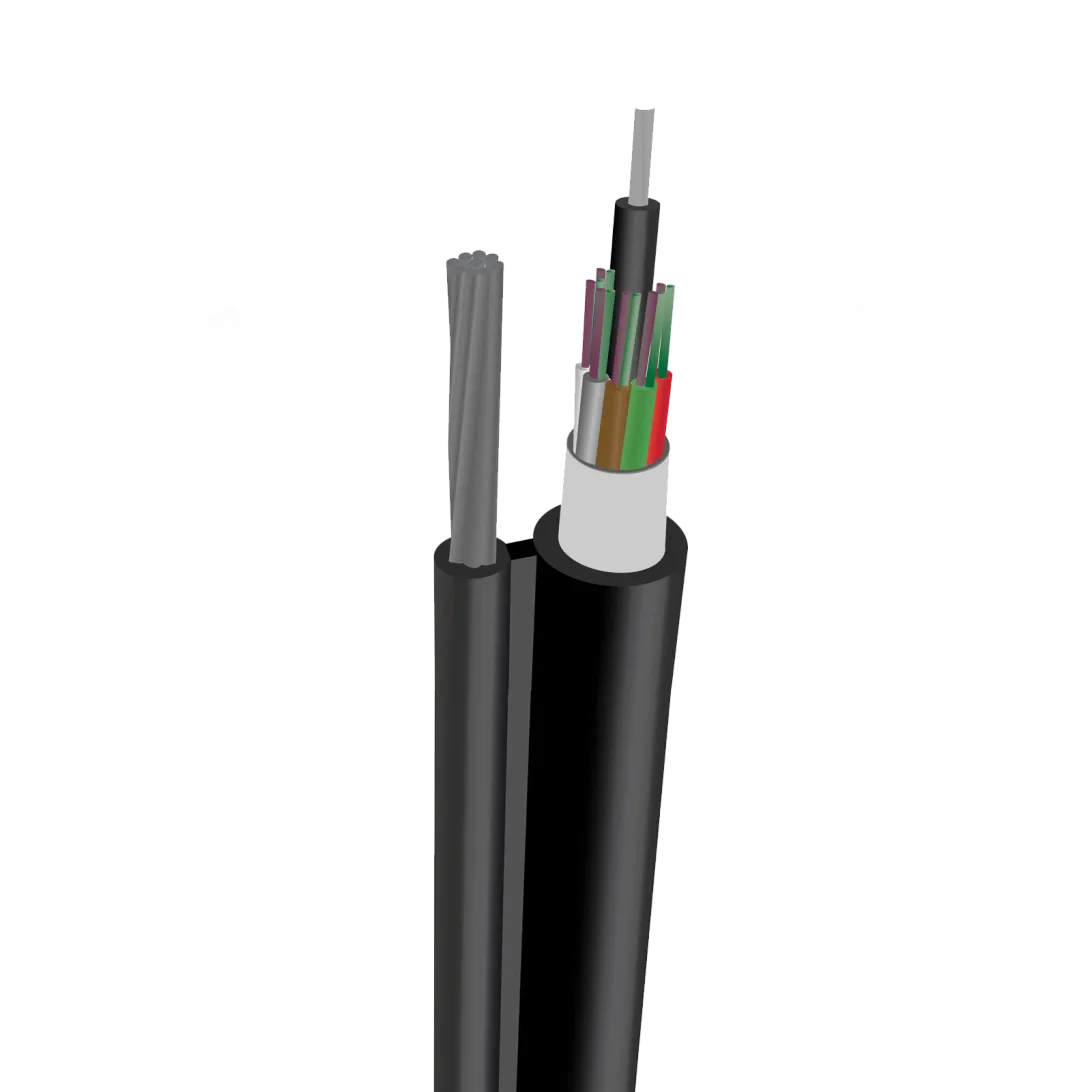

OptoWire AM-S-48FO-7.5KN Aerial Figure-8 Optical Cable

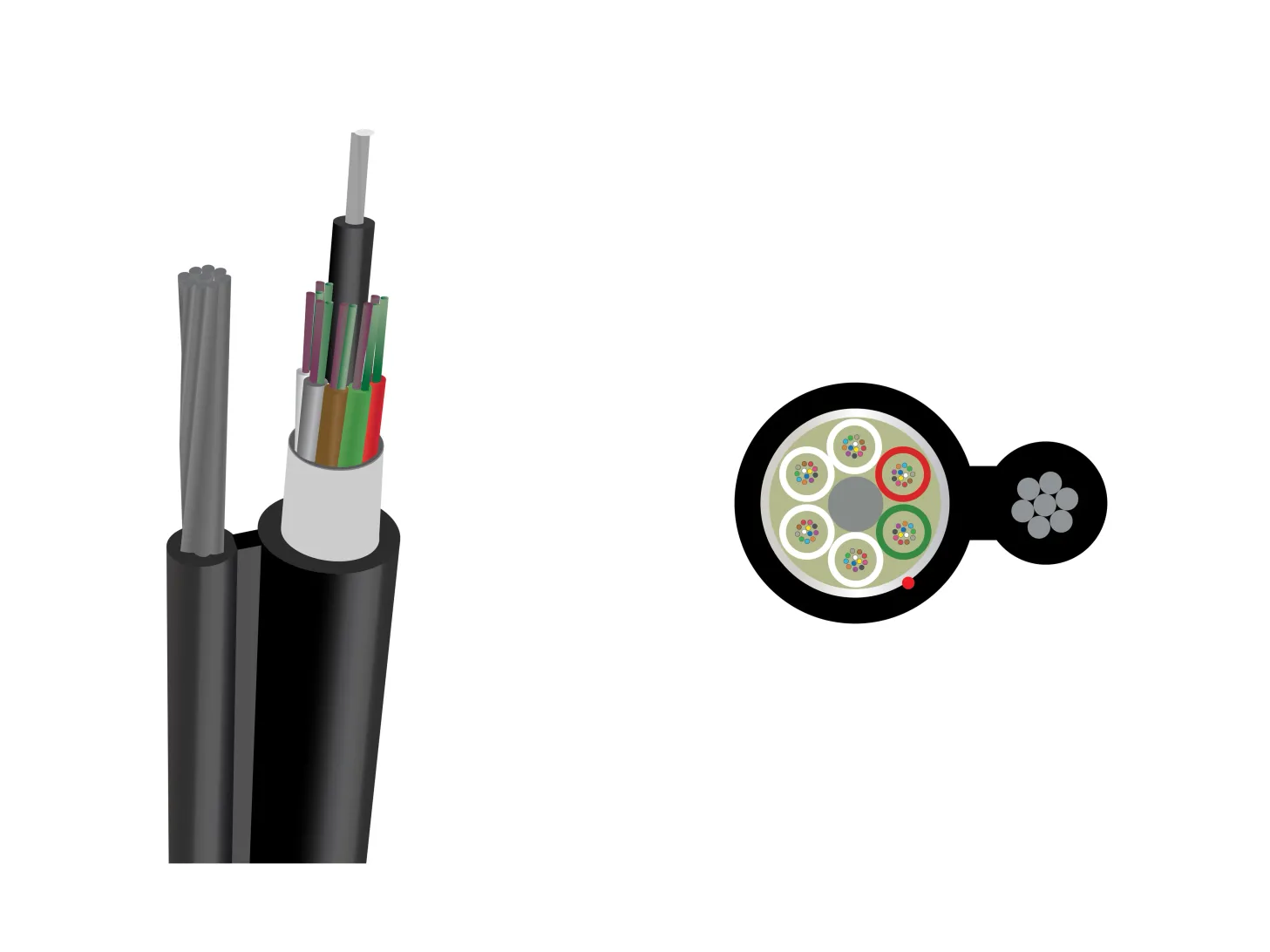

Outdoor Drop Fig8 Optical Cable: AM-S (4-144) FO (7.5–9.5 kN)The Outdoor Drop Fig8 Optical Cable by OptoWire is designed for aerial installations on poles and walls, offering high durability and outstanding performance for optical communication networks.With a fiber capacity ranging from 4 to 144, the cable features a robust central loose tube construction that ensures optimal protection for the fibers. Reinforced with galvanized steel messenger wire, this cable delivers a tensile strength of 7.5 to 9.5 kN, making it suitable for demanding environments.The durable outer sheath, with a nominal thickness of 1.5 mm, offers excellent protection against environmental challenges and ensures the cable’s reliability in a temperature range of -40°C to +70°C. It has a crush resistance of 1000 N/10 cm, which enhances its mechanical resilience.The cable is engineered for low attenuation, achieving ≤0.36 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm, which guarantees exceptional optical performance for long-distance data transmission.Compliant with international standards such as IEC 60794 and ITU-T G.652D, the Outdoor Drop Fig8 Optical Cable ensures high-quality and reliable performance, making it an ideal choice for modern and demanding optical infrastructure projects.
