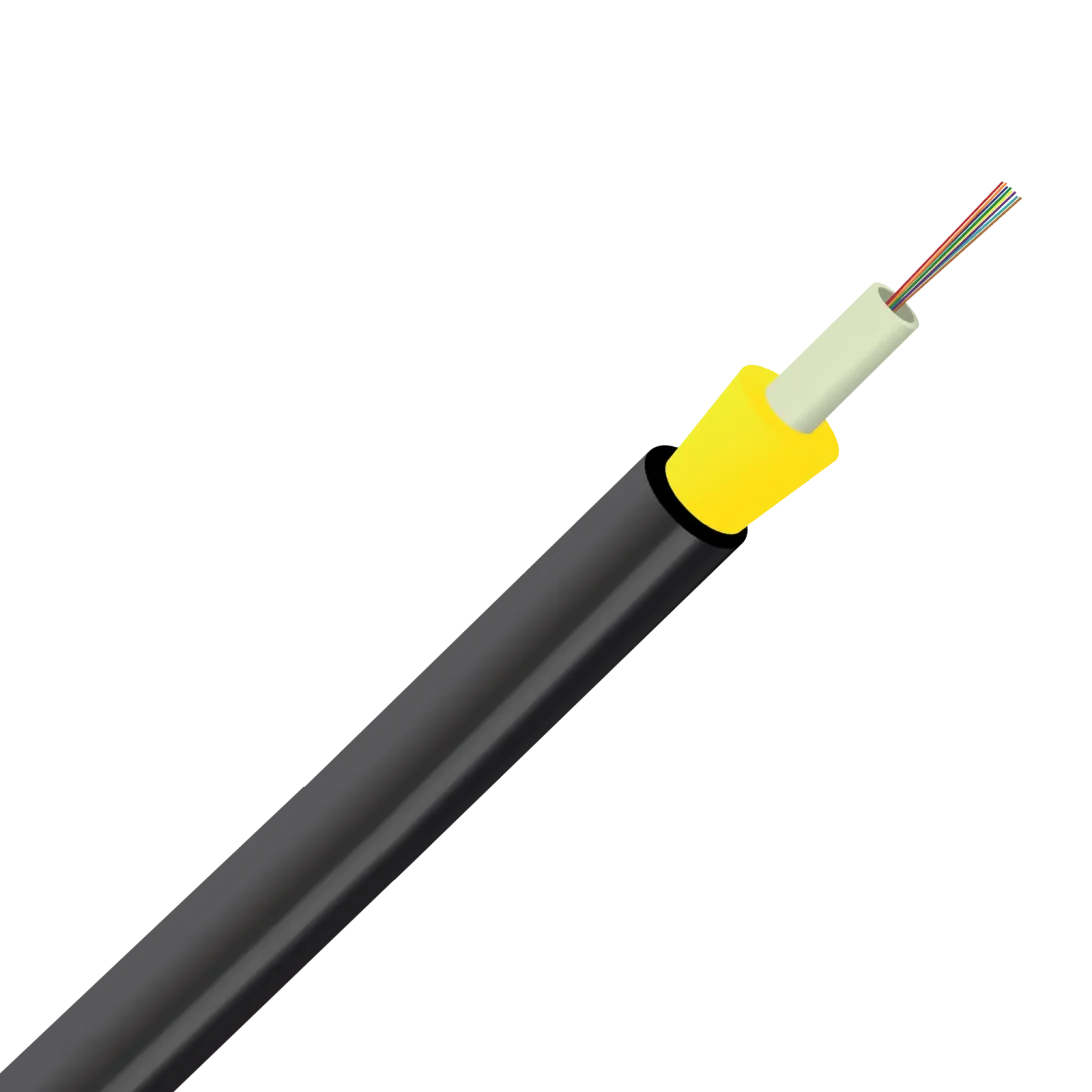

OptoWire-AS-L(A)-4FO-2KN Drop Outdoor ADSS Optical Cable
The OptoWire AS-L(A)-4FO-2 kN is a compact All-Dielectric Self-Supporting (ADSS) optical cable engineered for aerial and wall applications. It incorporates four G.657A2 single-mode fibers within a 2 mm central loose tube filled with water-blocking jelly for maximum fiber protection. Reinforced with aramid-yarn strength members and a UV-resistant HDPE/TPU outer sheath, the cable withstands 2 kN tensile force and 1000 N/100 mm crush pressure. Designed for FTTx and access networks, it offers durability, flexibility, and low attenuation for reliable outdoor performance.
● All-Dielectric Self-Supporting (ADSS) aerial installation cable
● Fiber count – 4
● No. of loose tube – 1
● Max. tensile load – 2 kN
● Cable OD – 5.6 mm ± 5 %
● Compact, lightweight design for wall, pole, and duct installation
About Drop Outdoor ADSS
Drop Outdoor ADSS (All-Dielectric Self-Supporting) cables are designed for last-mile aerial installations in FTTx and access networks. Lightweight, fully dielectric, and easy to deploy, these cables eliminate the need for metallic support, offering reliable performance in outdoor conditions without interference from high-voltage lines or electromagnetic fields.
