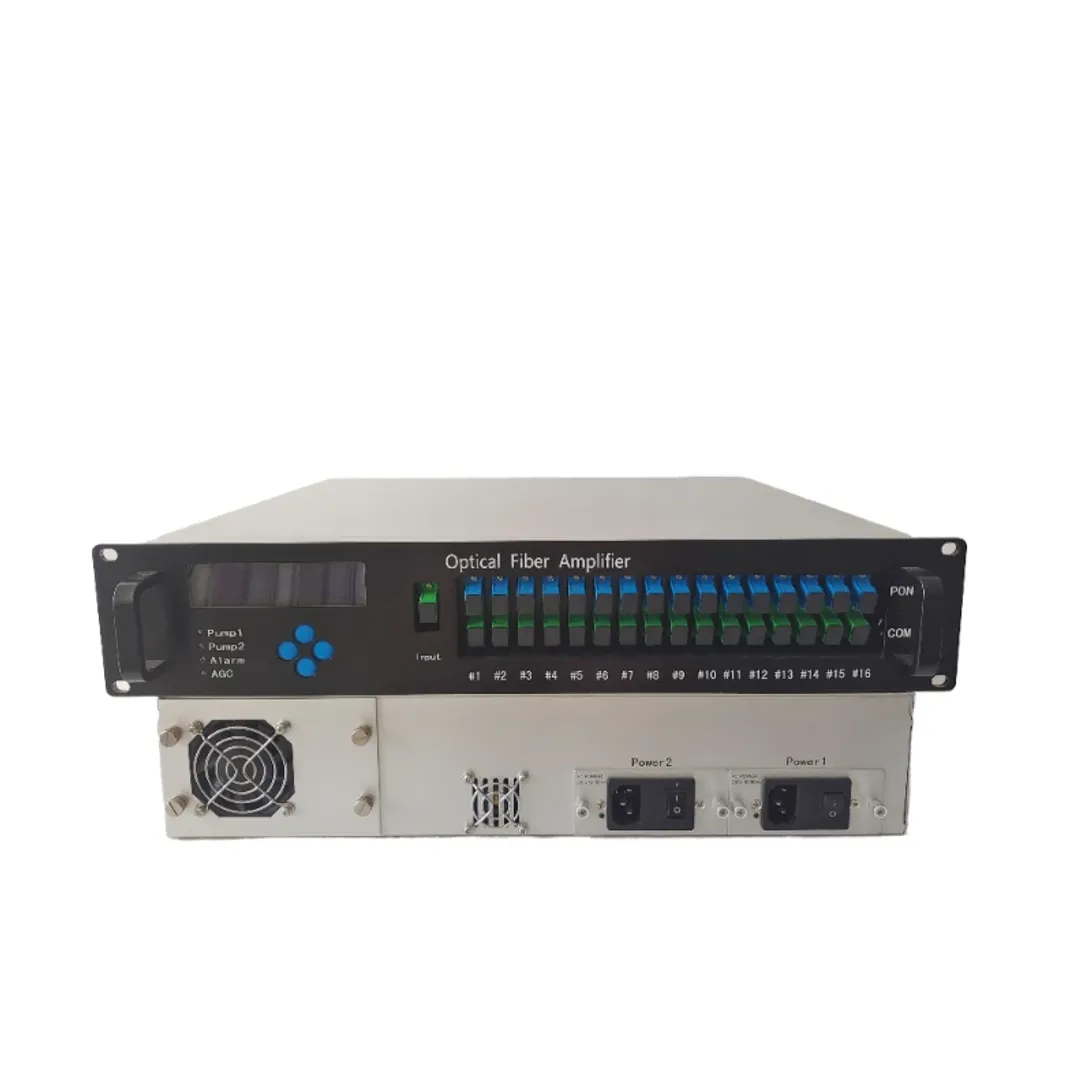

16 port 12~15dbm with wdm EDFA YHP-1550-16
This product is a high-output C-Band Erbium-Ytterbium co-doped double cladding fiber amplifier. It features high-reliability multimode pump lasers and advanced ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuits to ensure highly stable and reliable output power. Its proprietary optical design guarantees superior optical performance.
The amplifier achieves 10× higher conversion efficiency than traditional single-mode designs, making it more compact and energy efficient—ideal for FTTH, FTTB, and large-scale optical distribution systems.
It includes an intelligent temperature control system with smart airflow design to ensure thermal stability and extend fan lifespan. The network management system supports Ethernet with open protocols, ensuring seamless integration with existing network management platforms.
This EDFA is widely used in CATV transmission, high-power FTTH distribution, and can be integrated with PON systems or triple-play WDM systems.
- High Power Output: Up to 2W total output, suitable for 2000–4000 optical nodes
- Low Noise Figure: Less than 5.5dB (at +5dBm input)
- Advanced Amplification Technology: Er-Yb co-doped double cladding fiber with patented Pump Dump technology
- Low CSO: Less than -70dBc
- Output Power Options: Configurable to 23dBm × N, 20dBm × N, or 17dBm × N
- Smart Control System: Dual CPU architecture separates control loop and communication tasks
- High Stability and Reliability: MTTF > 150,000 hours
- Redundant Hot-Swappable Power Supplies: Supports 110/220VAC and -48VDC, can be mixed
- Comprehensive Network Interface: Ethernet port with SNMP network management support
- Intelligent Temperature Control System:
- Uses a dedicated chip to reduce cooling and power loss by 30%
- Smart fan system activates at >45°C and stops at <40°C
- Adjustable Output Power: Via network interface or manual control
- Integrated WDM Module (Optional): Supports 1310nm, 1490nm, and 1550nm wavelengths
- OEM/Module Available: Customizable based on project needs
About Optical amplifiers (EDFA)
Optical Amplifiers (EDFA): devices that boost optical signals in the network without converting them to electrical signals.
Related Products
Model:YT8684-4

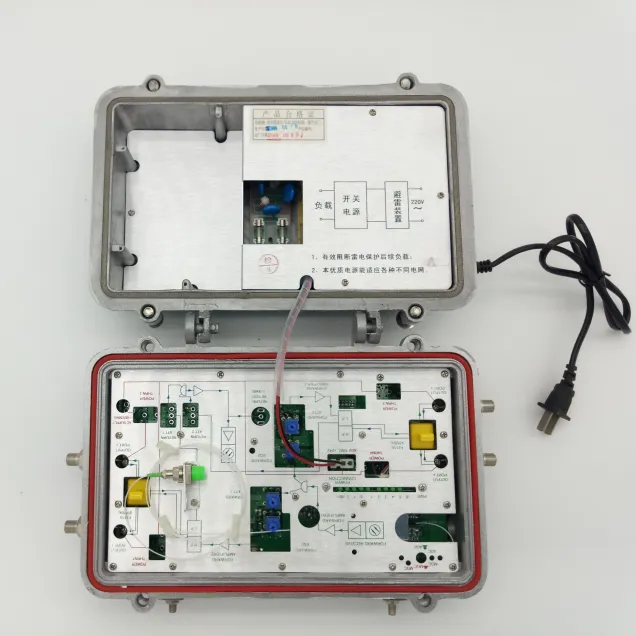

Outdoor optical receiver with AGC 4 RF Output YT8684-4
Model:YTEDFA1550

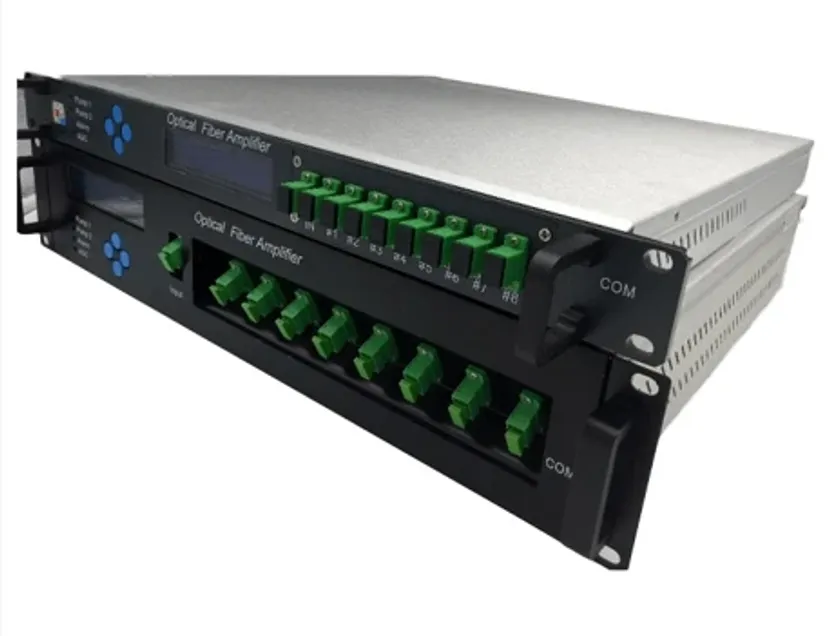

High Power Amplifier YTEDFA1550
