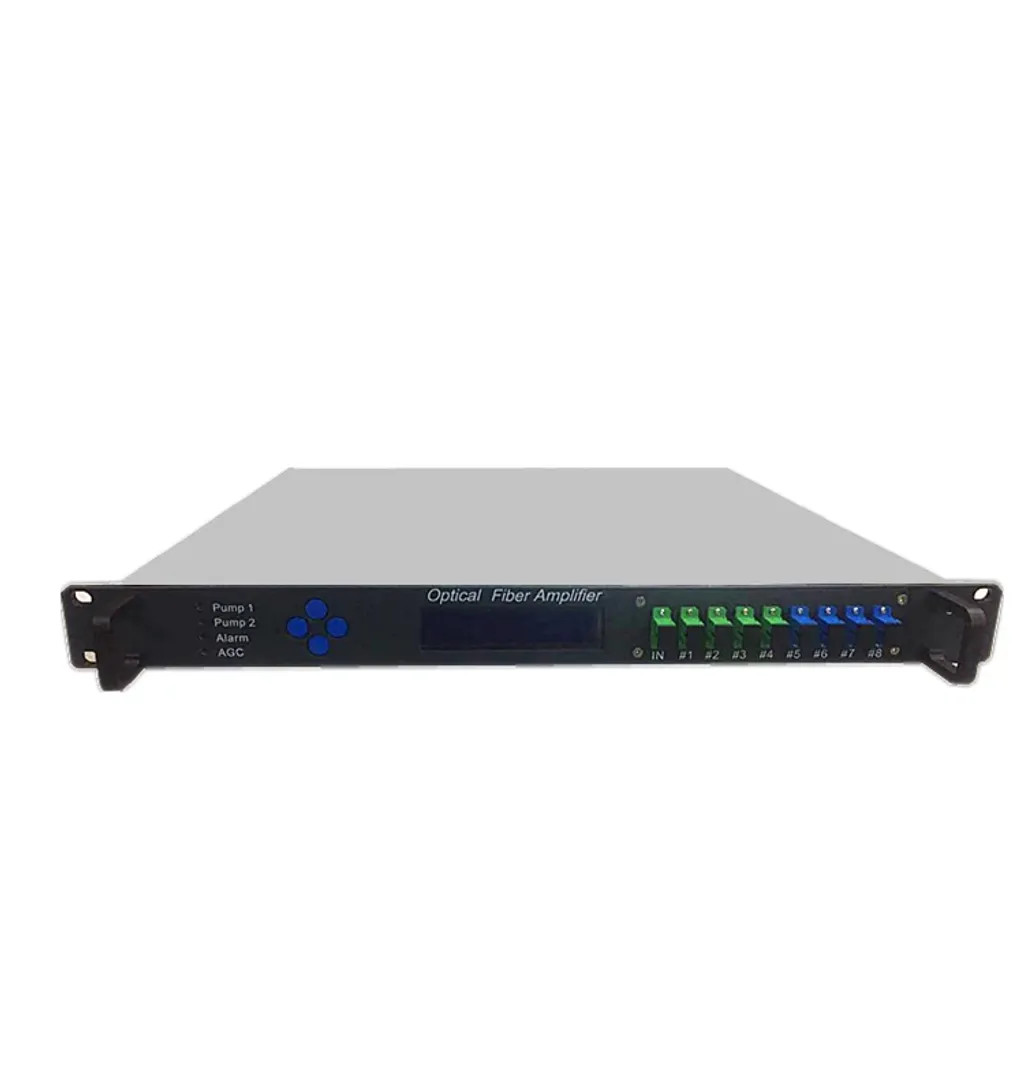

4 port 20~24dbm with wdm EDFA YHP-1550-4
Article:NE-FE-EDFA-0024
Category:Optical amplifiers (EDFA)
Brand: Optowire
Unit:pcs
This high-power 1U EDFA (Erbium-Doped Fiber Amplifier) is designed for long-distance optical transmission systems. It integrates a WDM multiplexer and supports 4 optical output ports with adjustable output power between 20 to 24 dBm. It features AGC to maintain output power stability even if a pump fails, and has a redundant pump configuration to ensure high reliability. With advanced cooling systems, safety protection circuits, and a user-friendly display interface, it's ideal for CATV or DWDM systems requiring powerful, stable optical signal amplification.
- Model: YTEDFA1550
- Form Factor: 1U rack-mountable chassis
- Ports: 4-port output with integrated WDM
- Output Power: High power, adjustable between 20~24 dBm
- Input/Output Fiber: 9μm/125μm Single-Mode
- Wavelength Range: 0.90 – 1.68 μm
- Max Power Output: Up to 10W
- Power Supply: Built-in 220V AC power module
- AGC Function (Automatic Gain Control): Ensures stable output even if one of the pump lasers fails
- Pump Redundancy: Multiple pump lasers, automatic power compensation upon failure
- Monitoring Interface: Front panel with LED indicators and button-operated LCD menu
- Cooling System: TEC (Thermoelectric Coolers) per pump
- Safety Compliance: Class IV laser safety with alarm indicators
- User Interface:
About Optical amplifiers (EDFA)
Optical Amplifiers (EDFA): devices that boost optical signals in the network without converting them to electrical signals.
