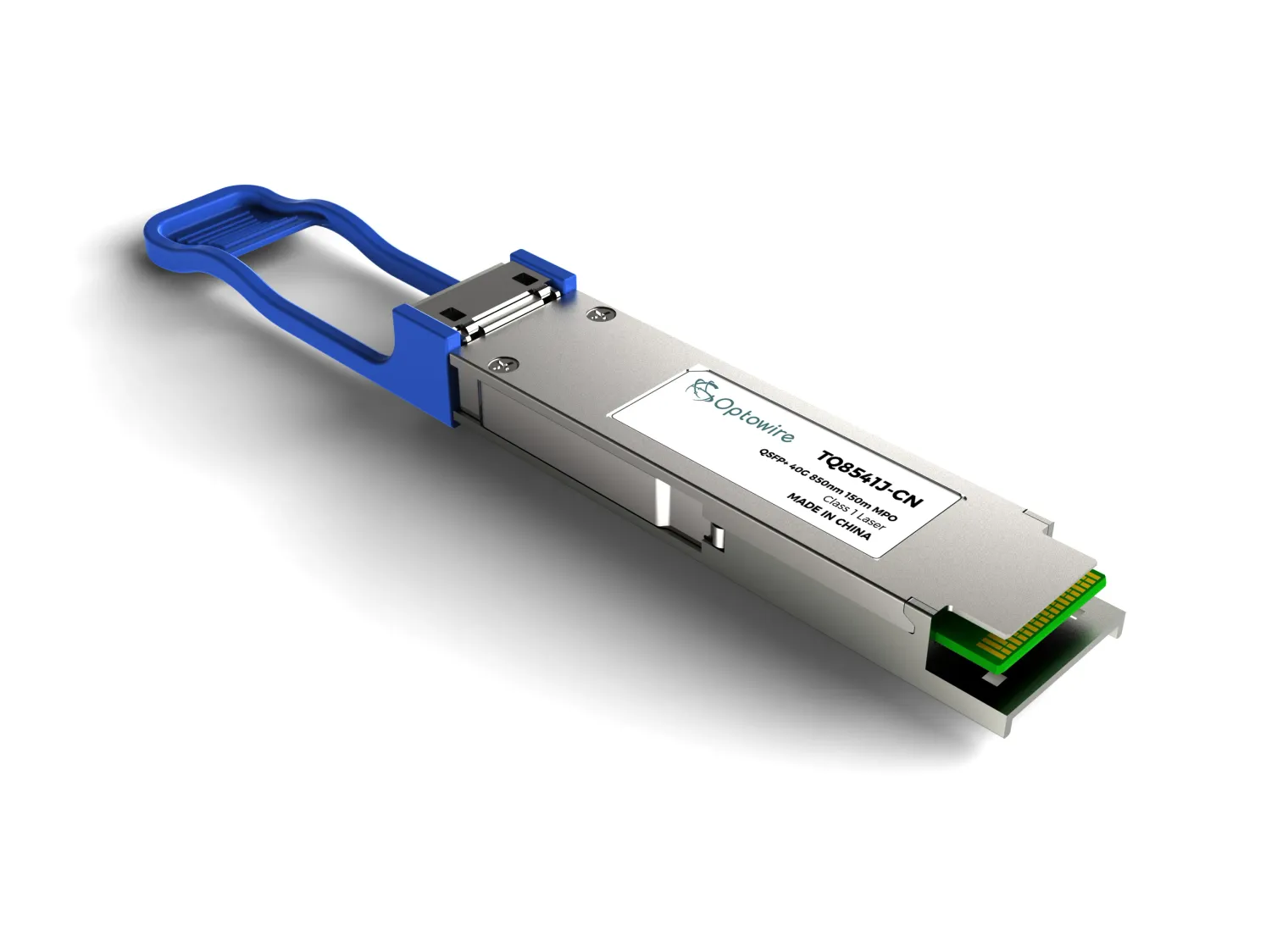

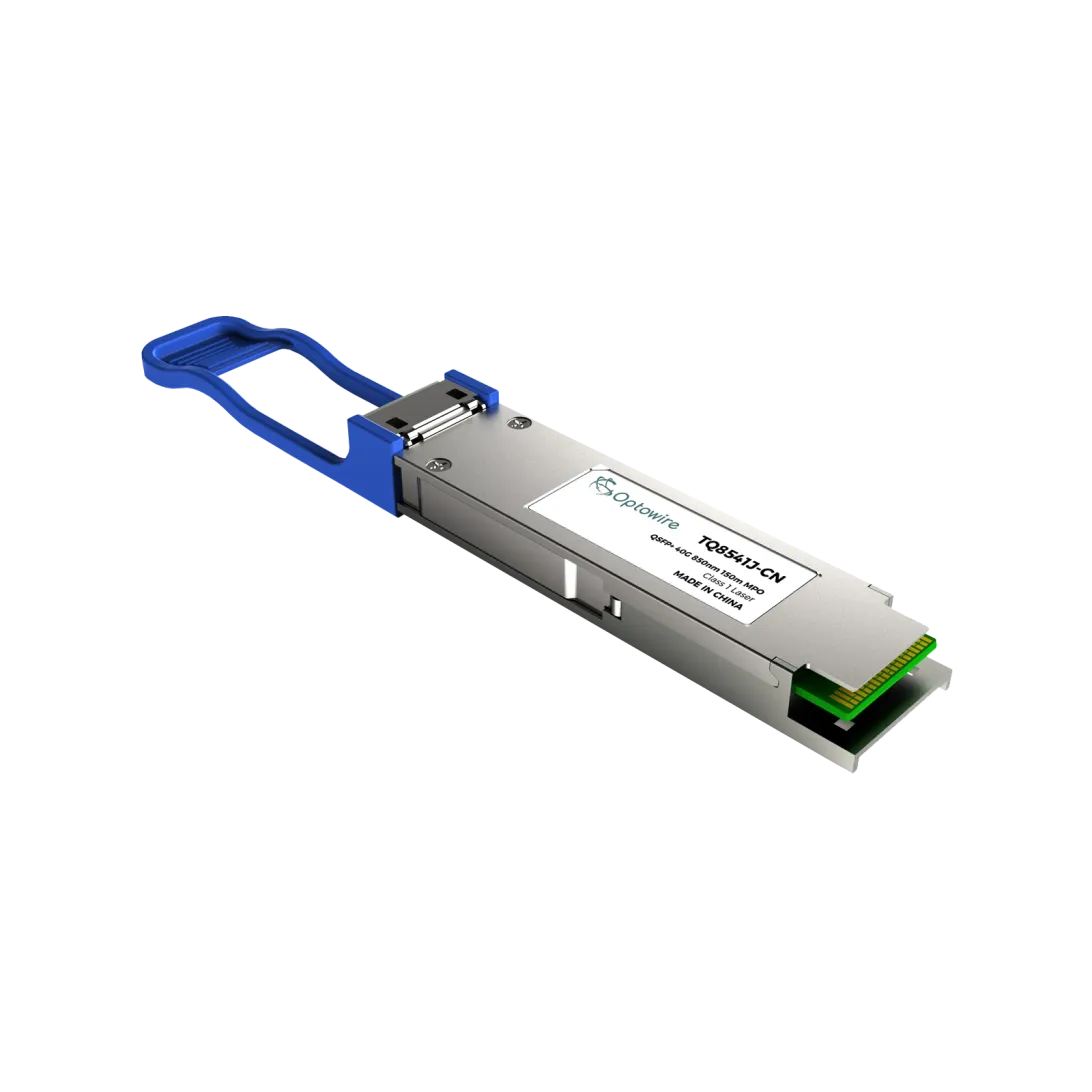

QSFP+ 40G 850nm 150m MPO
This 40G QSFP+ transceiver is designed for 40G Ethernet, Infiniband QDR/DDR/SDR, and high-speed telecom connections. It supports data rates of 10.3125 Gbps per channel, providing a total aggregate bandwidth of 41.25 Gbps. The module uses high-reliability 850 nm VCSEL technology and supports transmission distances up to 150 meters over 50/125 μm multimode fiber. It features an MPO optical interface, operates on a single +3.3 V power supply, and is fully hot-pluggable. The transceiver supports Digital Diagnostic Monitoring (DDM), complies with Class 1 laser safety and RoHS standards, and operates within a commercial temperature range of 0 °C to +70 °C, making it ideal for data centers and enterprise networking environments.
- Supports 10.3125 Gbps per channel (aggregate 41.25 Gbps).
- Utilizes 850 nm VCSEL laser technology for high reliability.
- Transmission distance up to 150 m over 50/125 μm multimode fiber.
- MPO optical connector interface.
- Single +3.3 V power supply and hot-pluggable QSFP+ design.
- Digital Diagnostic Monitoring supported.
- Class 1 laser safety and RoHS compliant.
- Operating temperature range: 0 °C to +70 °C.
About QSFP+
QSFP+: high-speed optical module allowing up to 40 Gbps data transfer in data centers and network devices.
Related Products

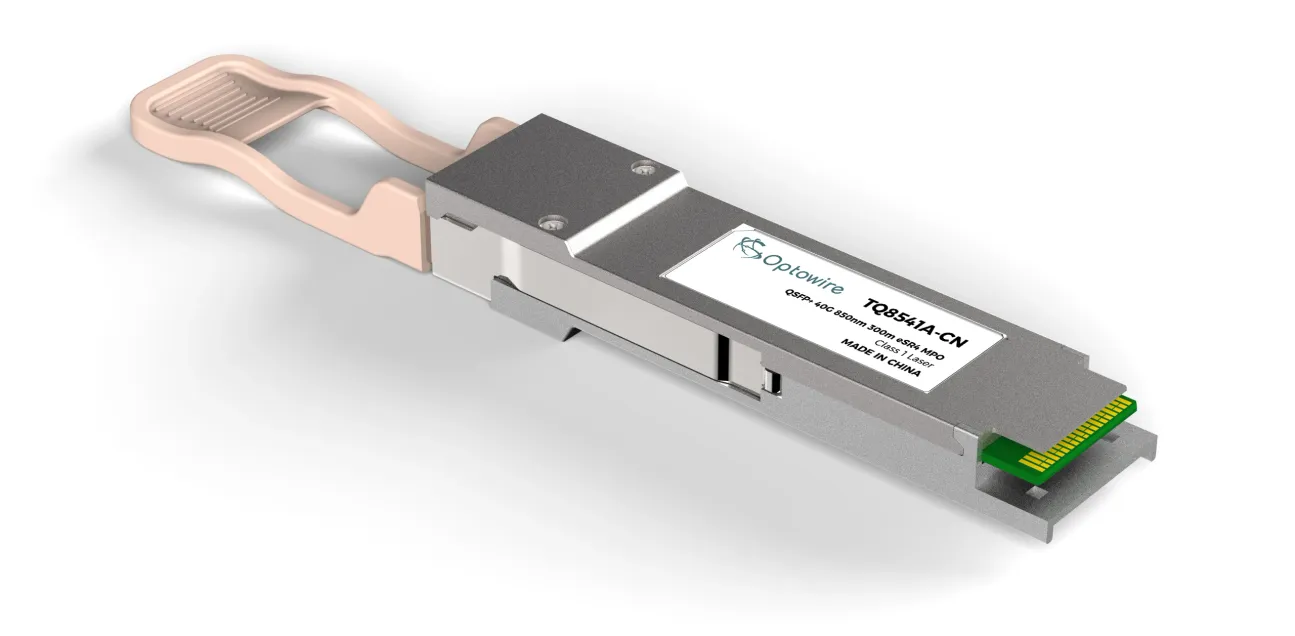

Model:QSFP+ 40G 850nm 300m SR4 MPO
