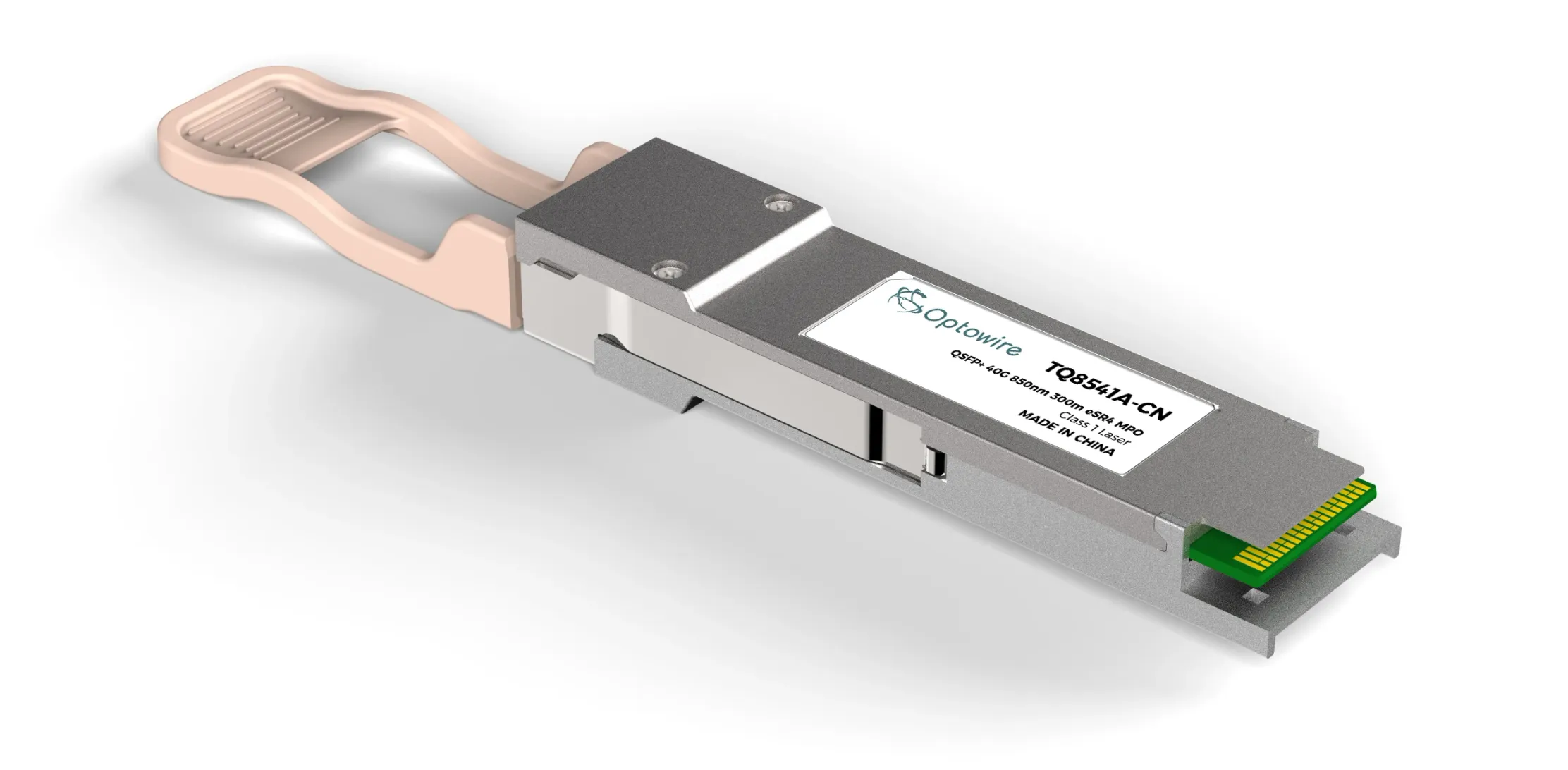

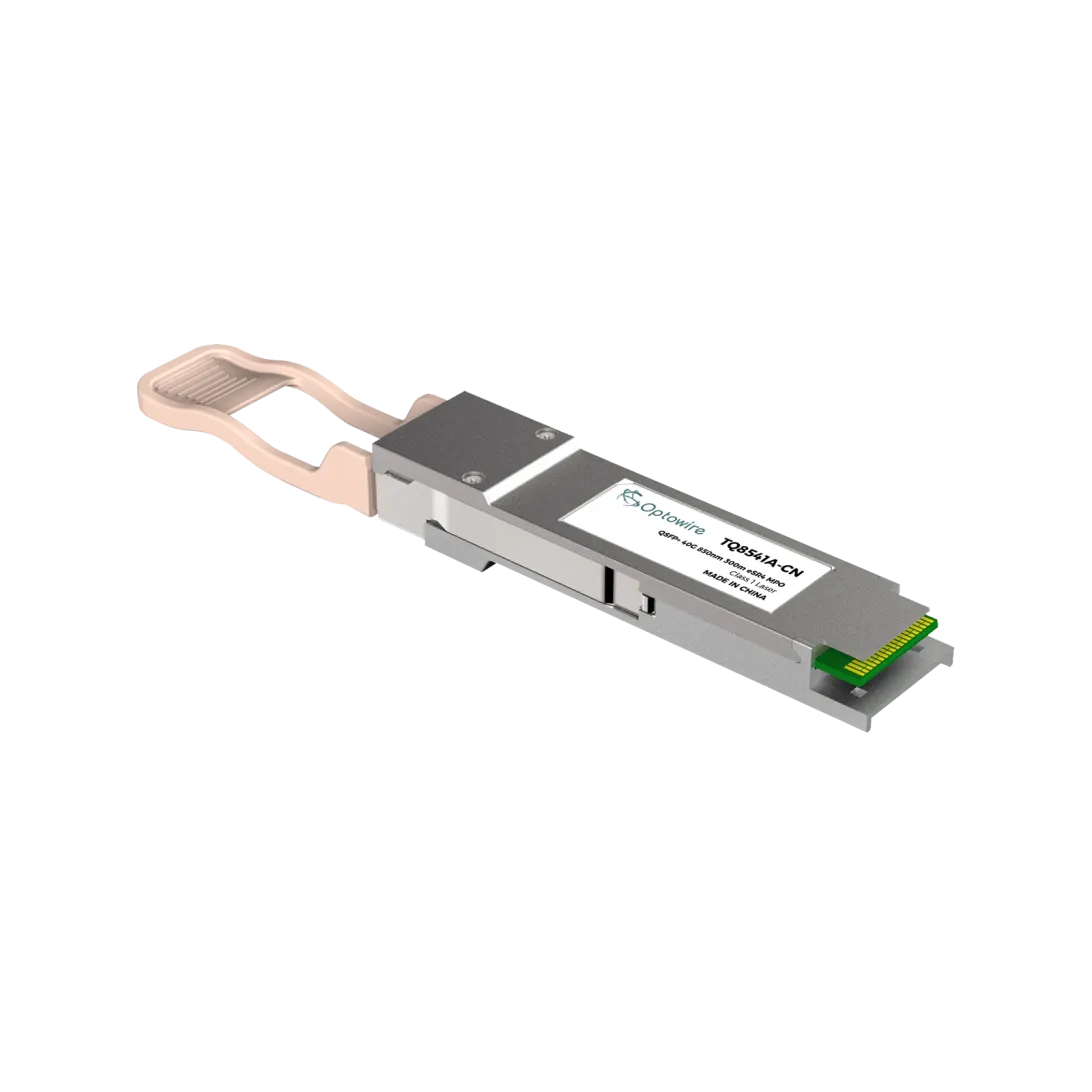

QSFP+ 40G 850nm 300m SR4 MPO
This 40G QSFP+ transceiver is designed for 40G Ethernet, Infiniband QDR/DDR/SDR, and high-speed telecom applications. It supports data rates of 10.3125 Gbps per channel, providing an aggregate bandwidth of 41.25 Gbps. Utilizing high-reliability 850 nm VCSEL laser technology, it delivers transmission distances up to 300 meters over 50/125 μm multimode fiber. The module features an MPO optical interface, operates on a single +3.3 V power supply, and is fully hot-pluggable. It supports Digital Diagnostic Monitoring (DDM), complies with Class 1 laser safety and RoHS environmental standards, and operates within a commercial temperature range of 0 °C to +70 °C. This transceiver is ideal for data centers, enterprise networking, and short-reach telecom environments.
- Supports 10.3125 Gbps per channel (aggregate 41.25 Gbps).
- High-reliability 850 nm VCSEL laser technology.
- Transmission distance up to 300 m over 50/125 μm multimode fiber.
- MPO optical interface and single +3.3 V power supply.
- Hot-pluggable QSFP+ form factor for easy deployment.
- Digital Diagnostic Monitoring (DDM) supported.
- Compliant with Class 1 laser safety and RoHS standards.
- Operating temperature range: 0 °C to +70 °C.
About QSFP+
QSFP+: high-speed optical module allowing up to 40 Gbps data transfer in data centers and network devices.
Related Products

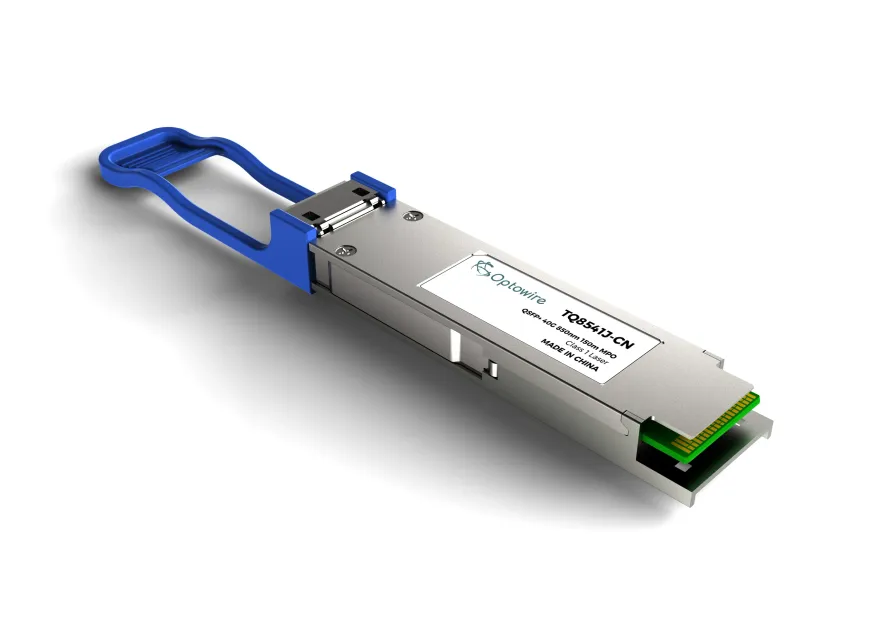

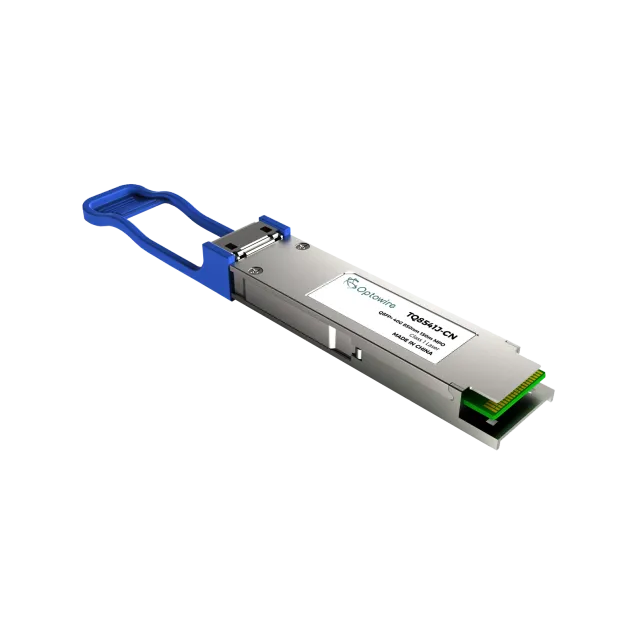

Model:QSFP+ 40G 850nm 150m MPO
QSFP+ 40G 850nm 150m MPO

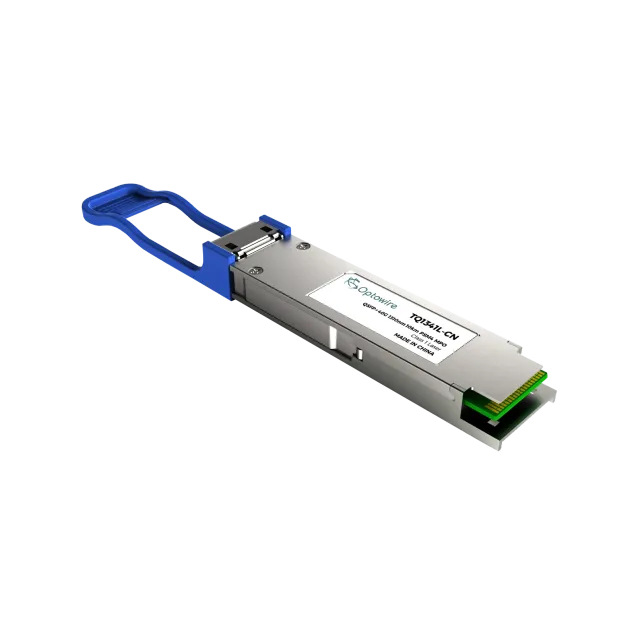

Model:QSFP+ 40G 1310nm 10km PSM4 MPO
