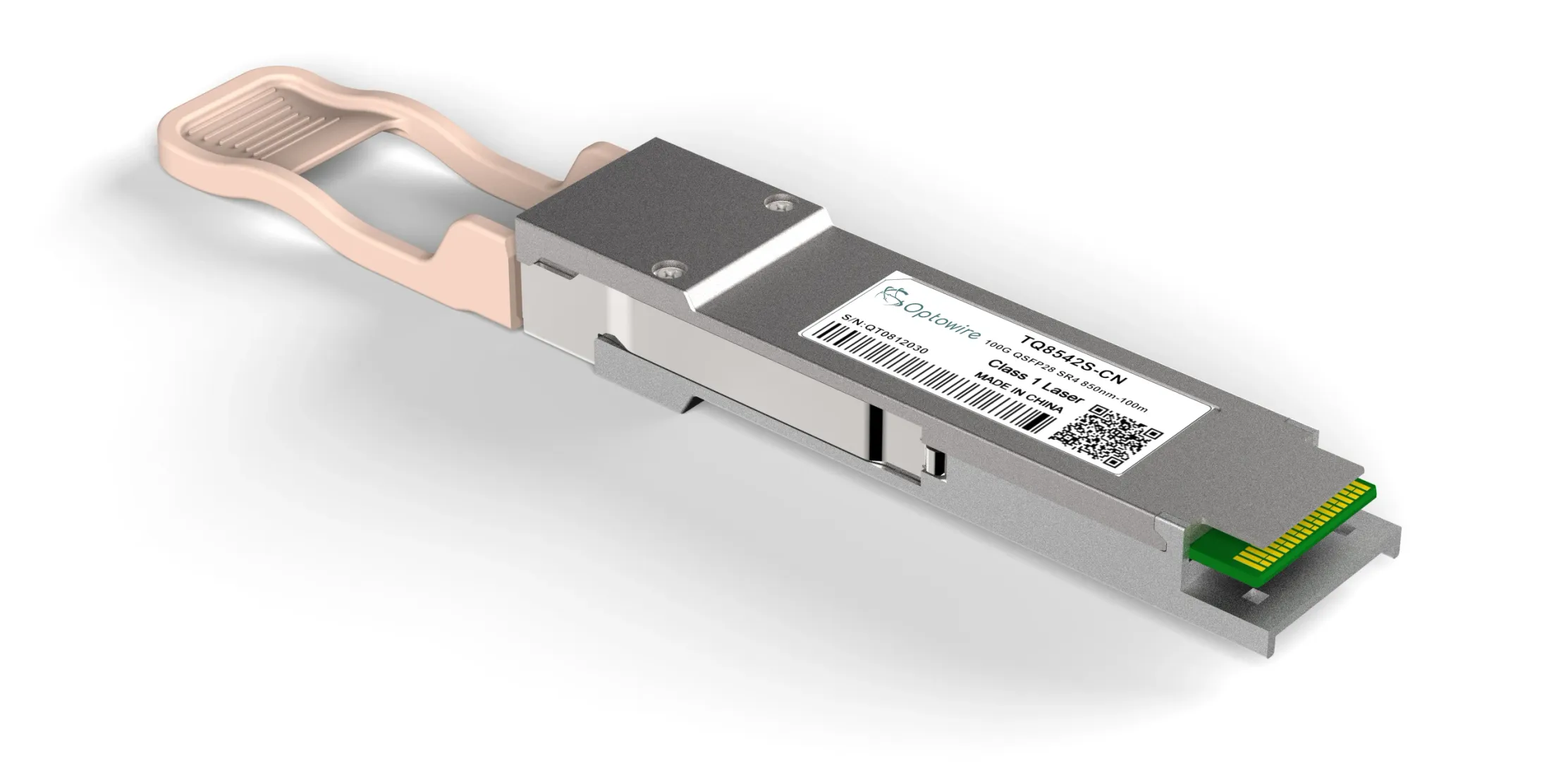

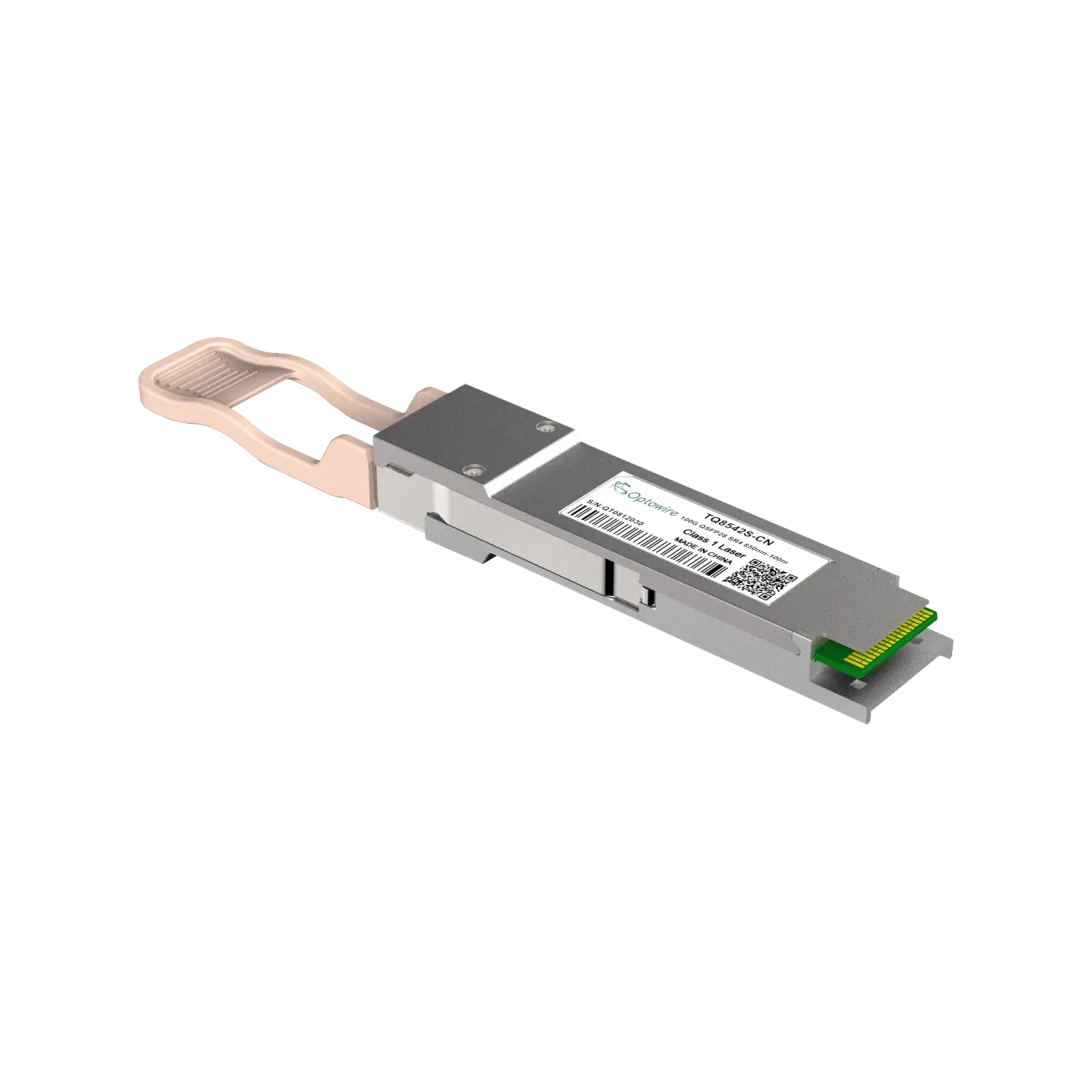

QSFP28 100G Duplex 850nm 100m SR4 MPO
This 100G QSFP28 transceiver is designed for 100GBASE-SR4 Ethernet and high-performance data center backbone applications. It supports data rates of 25.78125 Gbps per channel, providing an aggregate bandwidth of 103.125 Gbps. Utilizing high-reliability 850 nm VCSEL laser technology, the module enables transmission distances up to 100 meters over 50/125 μm multimode fiber. It features an MPO optical connector, operates on a single +3.3 V power supply, and is fully hot-pluggable. The transceiver supports Digital Diagnostic Monitoring (DDM), complies with Class 1 laser safety and RoHS environmental standards, and operates within a standard temperature range of 0 °C to +70 °C — making it ideal for short-reach, high-speed data center interconnects.
- Supports 25.78125 Gbps per channel (aggregate 100 Gbps).
- High-reliability 850 nm VCSEL laser with PIN receiver.
- Transmission distance up to 100 m over 50/125 μm multimode fiber.
- MPO optical connector and single +3.3 V power supply.
- Hot-pluggable QSFP28 form factor for flexible deployment.
- Digital Diagnostic Monitoring (DDM) supported.
- Class 1 laser safety and RoHS compliant.
- Operating temperature range: 0 °C to +70 °C.
About QSFP28
QSFP28: optical module providing up to 100 Gbps data transfer in data centers and network devices.
