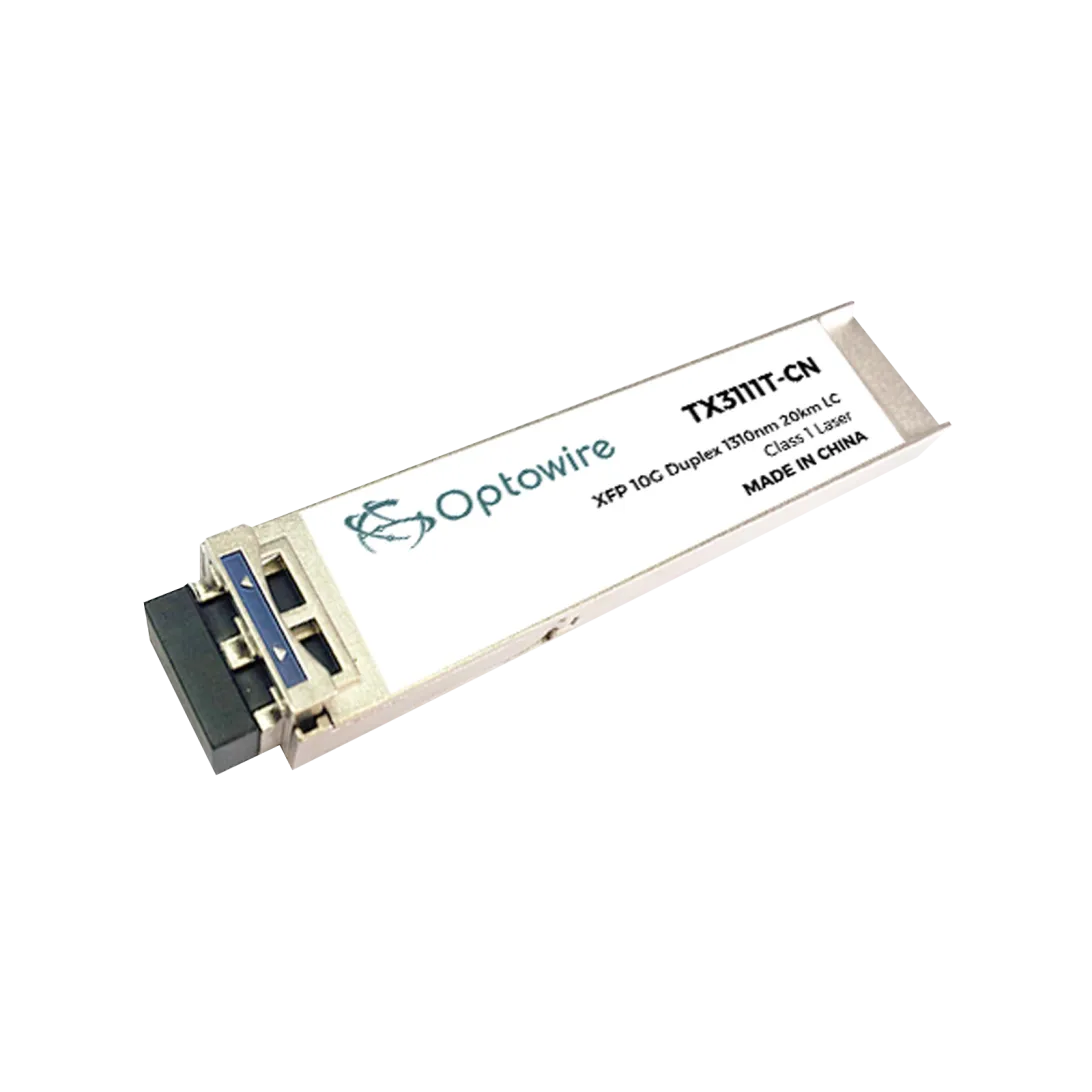

XFP 10G Duplex 1310nm 20km LC

The TX3111T-CN is a 10G XFP transceiver module designed for 10GBASE-LR/LW Ethernet and 10G Fiber Channel applications. It supports a typical data rate of 10.3125 Gbps and provides transmission up to 20 km over single-mode fiber (SMF) using a 1310 nm DFB laser and a PIN photo detector. The module features a duplex LC connector, operates with a single +3.3 V power supply, and is fully hot-pluggable in the XFP footprint.

It is RoHS compliant, Class 1 laser safety certified, and supports Digital Diagnostic Monitoring (DDM). Operating in the temperature range of 0 °C to +70 °C, it ensures stable, reliable performance for long-distance optical communication.
