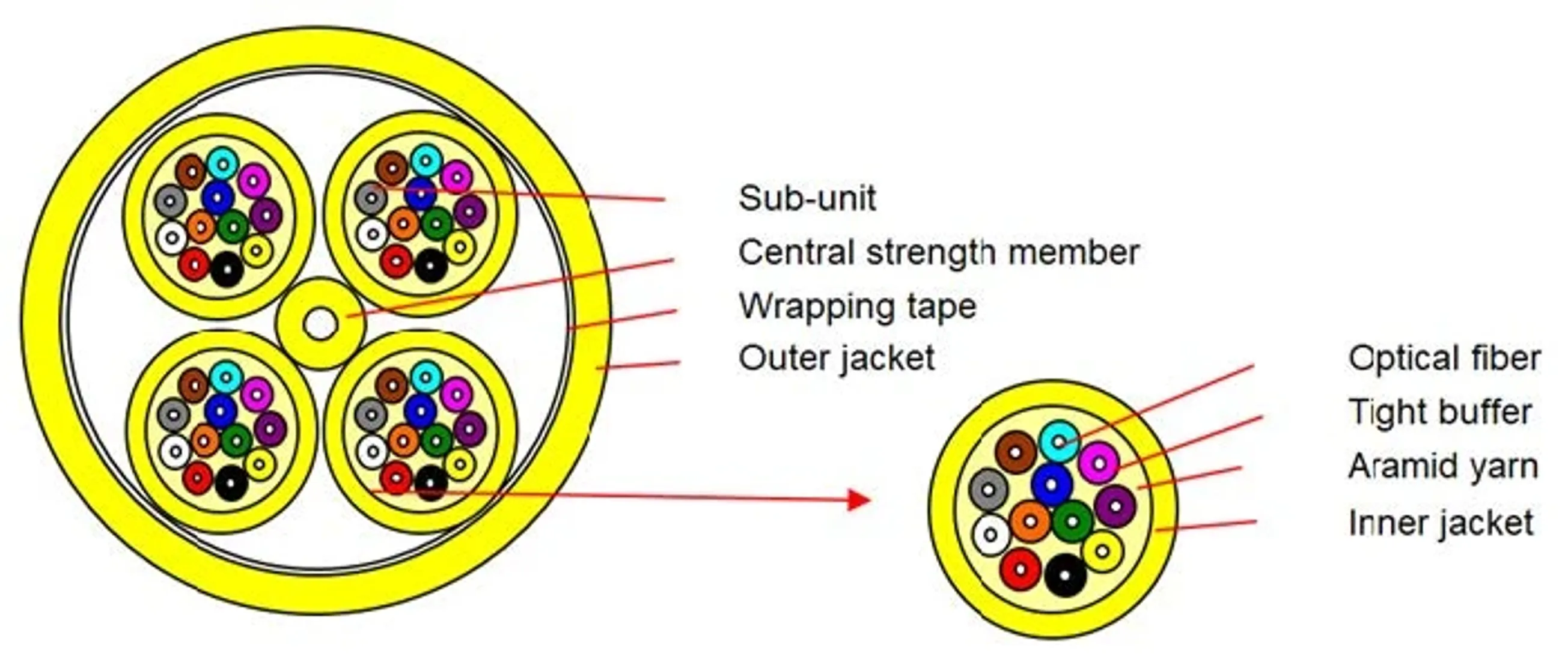

Cable Cross-Section CSC-48FO-0.8kN
The Optowire CSC-48FO-0.8 kN is a high-capacity cross-section fiber-optic cable built for data-center and backbone environments. It features 48 G.652D single-mode fibers arranged in a 1 + 4 subunit structure with LSZH inner and outer jackets for superior flame resistance and low smoke emission. Reinforced with aramid yarn strength members and a central dielectric strength core, the cable offers excellent mechanical stability, tensile (800 N), and crush (1000 N/100 mm) resistance. Ideal for structured cabling, patch-panel interconnects, and indoor distribution networks.
- Indoor optical cable with 48 fibers (G.652D SM)
- Tight-buffered LSZH structure with aramid yarn strength members
- Central dielectric core and LSZH inner + outer jackets
- Flame-retardant, low-smoke design for data centers
- Short-term tensile 800 N and crush 1000 N/100 mm
- Suitable for backbone and high-density rack installations
About Cross Section Cable
High-density LSZH optical cross-section cables engineered for data centers, offering flame resistance, flexibility, and superior performance in structured networks.
