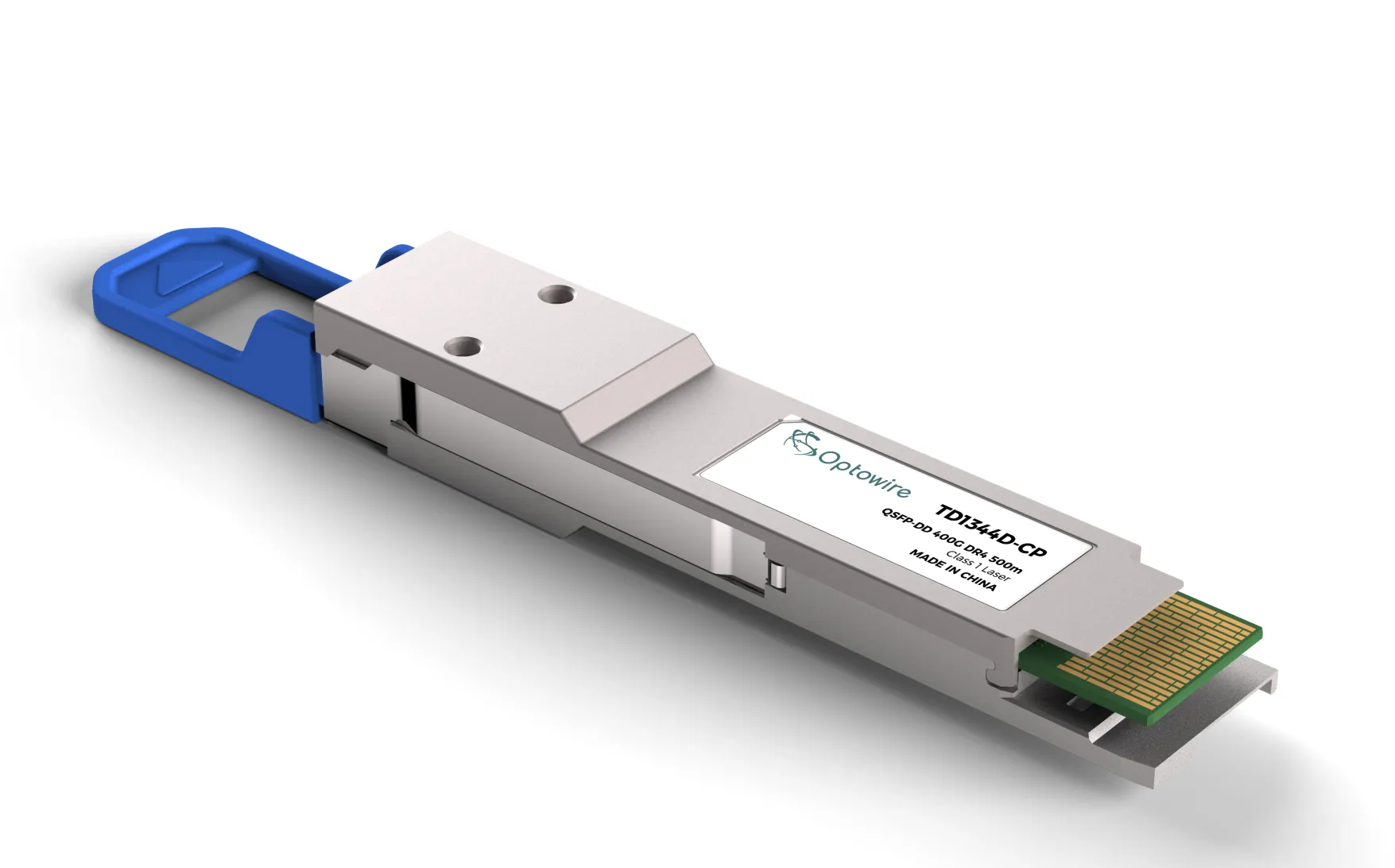

QSFP-DD 400G DR4 500m

This 400G QSFP-DD transceiver is designed for 400GBASE-DR4 Ethernet and other high-speed optical interconnect applications. It is fully compliant with IEEE 802.3bs standards, supporting the 400GAUI-8 electrical interface and 400GBASE-DR4 optical interface. The module features a Type 2 QSFP-DD housing with an MPO-12 connector, compliant with QSFP-DD MSA HW Rev. 5.1 and the Common Management Interface Specification (CMIS) Rev. 4.0.

The transceiver supports a 3 dB channel insertion loss, operates on a single +3.3 V power supply, and has a maximum power consumption of 10 W. It includes a two-wire serial interface for Digital Diagnostic Monitoring (DDM) and meets Class 1 laser safety and RoHS (EU Directive 2011/65/EU) compliance. Operating within a commercial temperature range of 0 °C to +70 °C, this module is ideal for data centers and high-performance computing networks requiring ultra-high bandwidth and energy-efficient performance.
