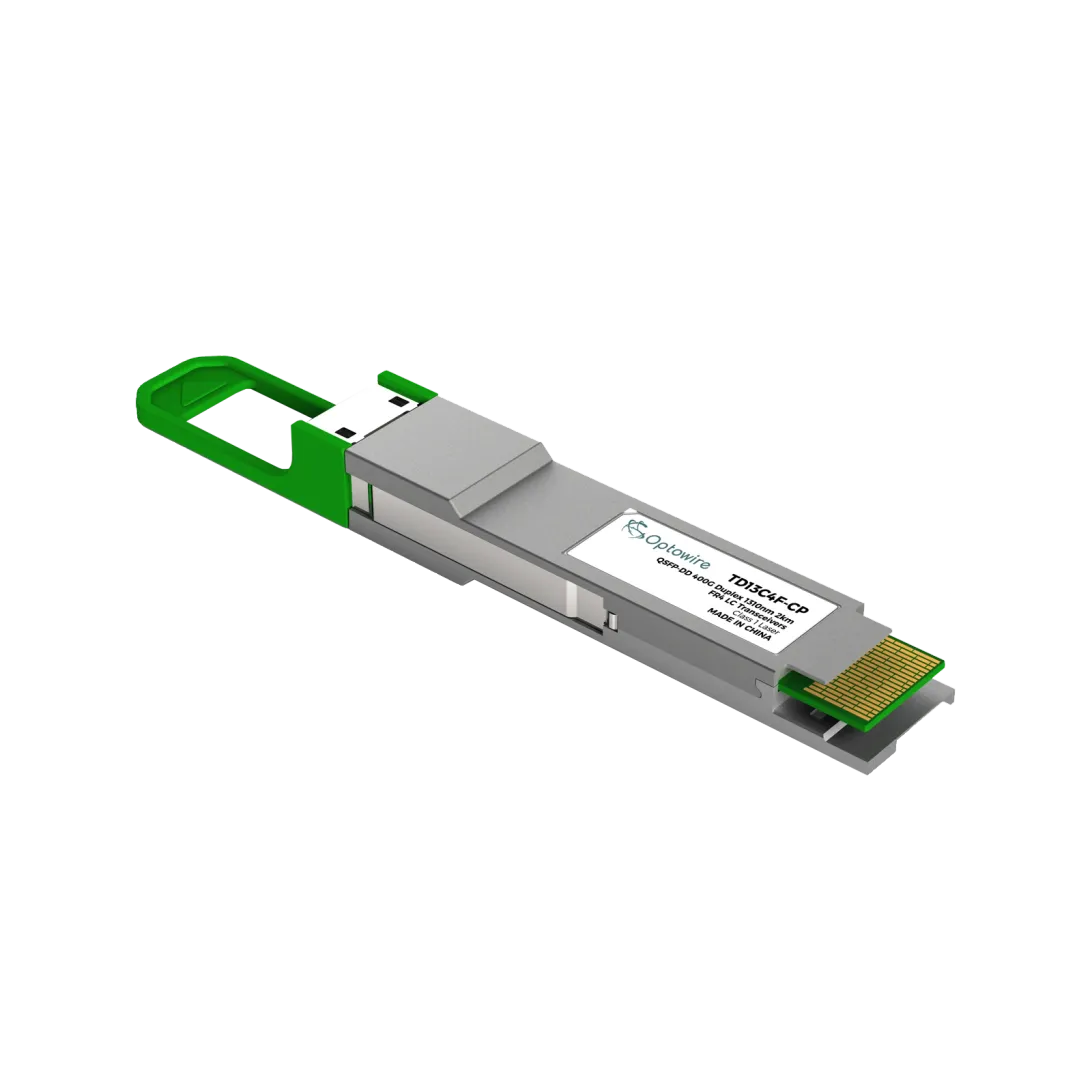

QSFP-DD 400G Duplex 1310nm 2km FR4 LC
This 400G QSFP-DD transceiver is designed for 400GBASE-FR4 Ethernet, data center, and switch/router interconnect applications. It supports data rates up to 106.25 Gbps per channel (PAM4 modulation), providing an aggregate bandwidth of 425 Gbps across four lanes. The module features a duplex LC optical interface, operates over single-mode fiber with a maximum link length of 2 km, and utilizes CWDM4 EML transmitters with PIN receivers for high-performance optical communication.
Fully QSFP-DD MSA and CMIS compliant, the transceiver supports 400G-FR4 technical specifications, consumes less than 10 W of power, and operates within a temperature range of 0 °C to +70 °C. It is hot-pluggable and RoHS compliant, making it ideal for high-capacity, energy-efficient network infrastructures in modern data centers and backbone systems.
- Supports up to 106.25 Gbps per channel (PAM4), 400G aggregate bandwidth.
- Compliant with QSFP-DD MSA and CMIS specifications.
- CWDM4 EML transmitter and PIN receiver design.
- Maximum transmission distance of 2 km over single-mode fiber.
- Duplex LC optical interface.
- Low power dissipation under 10 W.
- Operating case temperature range: 0 °C to +70 °C.
- Fully compliant with 400G-FR4 and RoHS standards.
About QSFP-DD
QSFP-DD: optical module supporting up to 400 Gbps data transfer, used in data centers and high-speed networks.
Related Products
Model:QSFP-DD 400G Duplex 1310nm 10km LR4 LC
QSFP-DD 400G Duplex 1310nm 10km LR4 LC

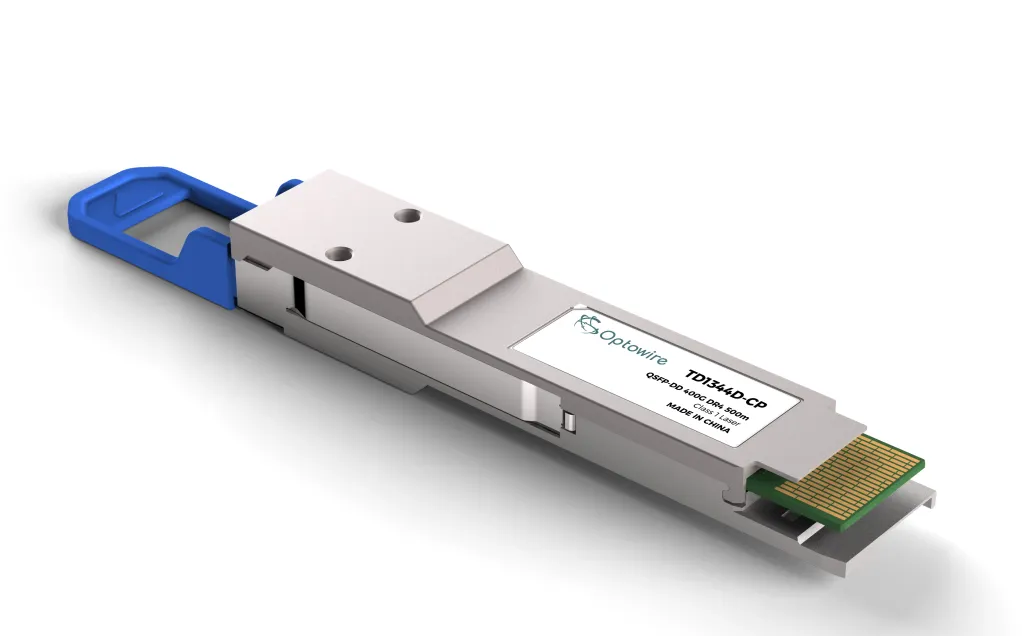

Model:QSFP-DD 400G DR4 500m
